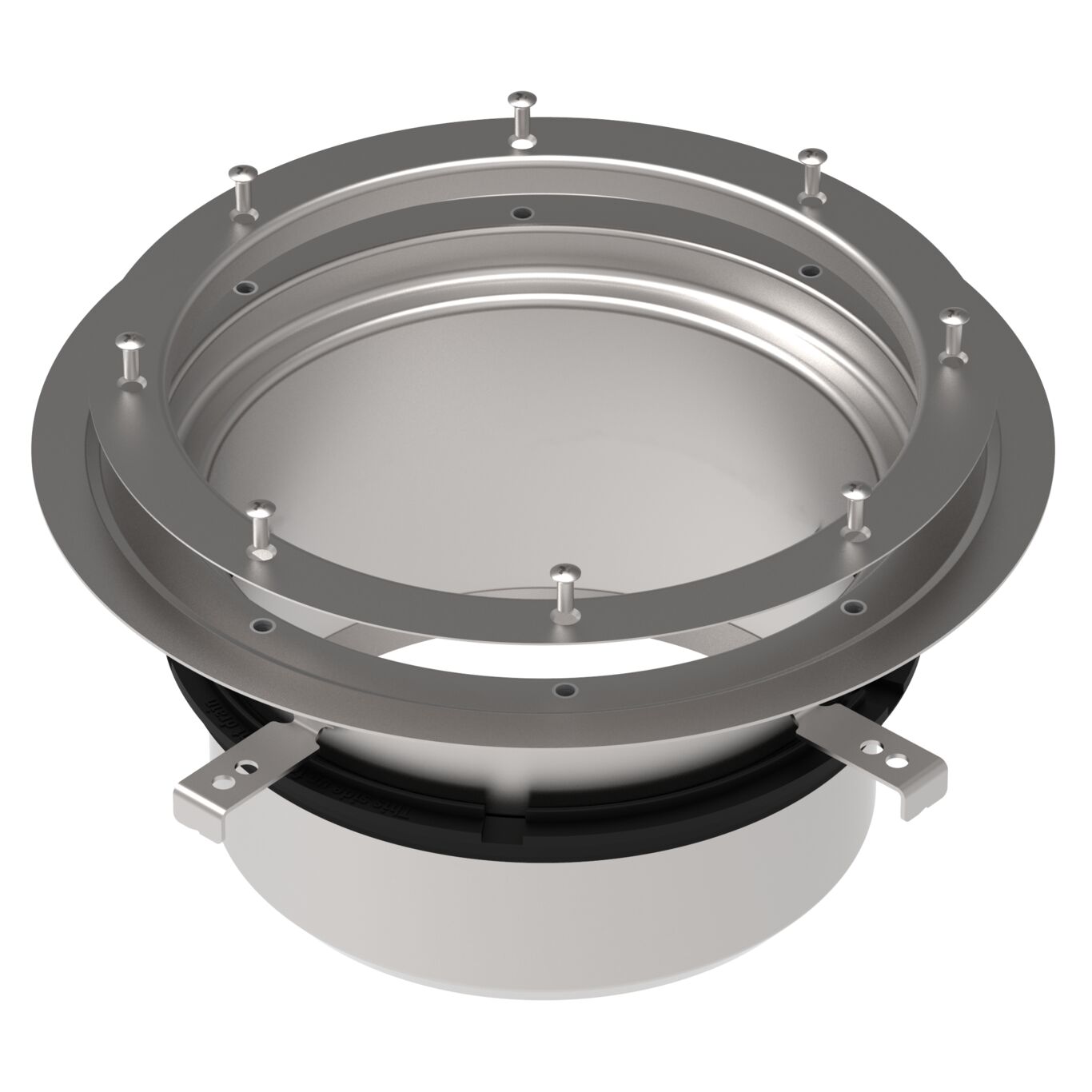

UPPER PART - (774.603.000 S)

Part Of the Series: Upper part-Vinyl-332

Type no.: 774.603.000 S

EAN no.: 5705499112528

VVS no.: 153038352

LVI no.: 3303849

Size: Ø332


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Vinyl
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 172
Number of Screw Holes 0
Outlet dia. (mm) 250
Outlet Diameter (Inch) 10
Shape Round
Size (mm) Ø332
Size of Frame (Inch) Ø13-1/8
Weight (kg) 3.67
Weight (lbs) 8.09
