LOWER PART - (774.003.110 S)
×
![]()
Part Of the Series: Lower part-250
Type no.: 774.003.110 S
EAN no.: 5705499111958
VVS no.: 153008346
LVI no.: 3303794

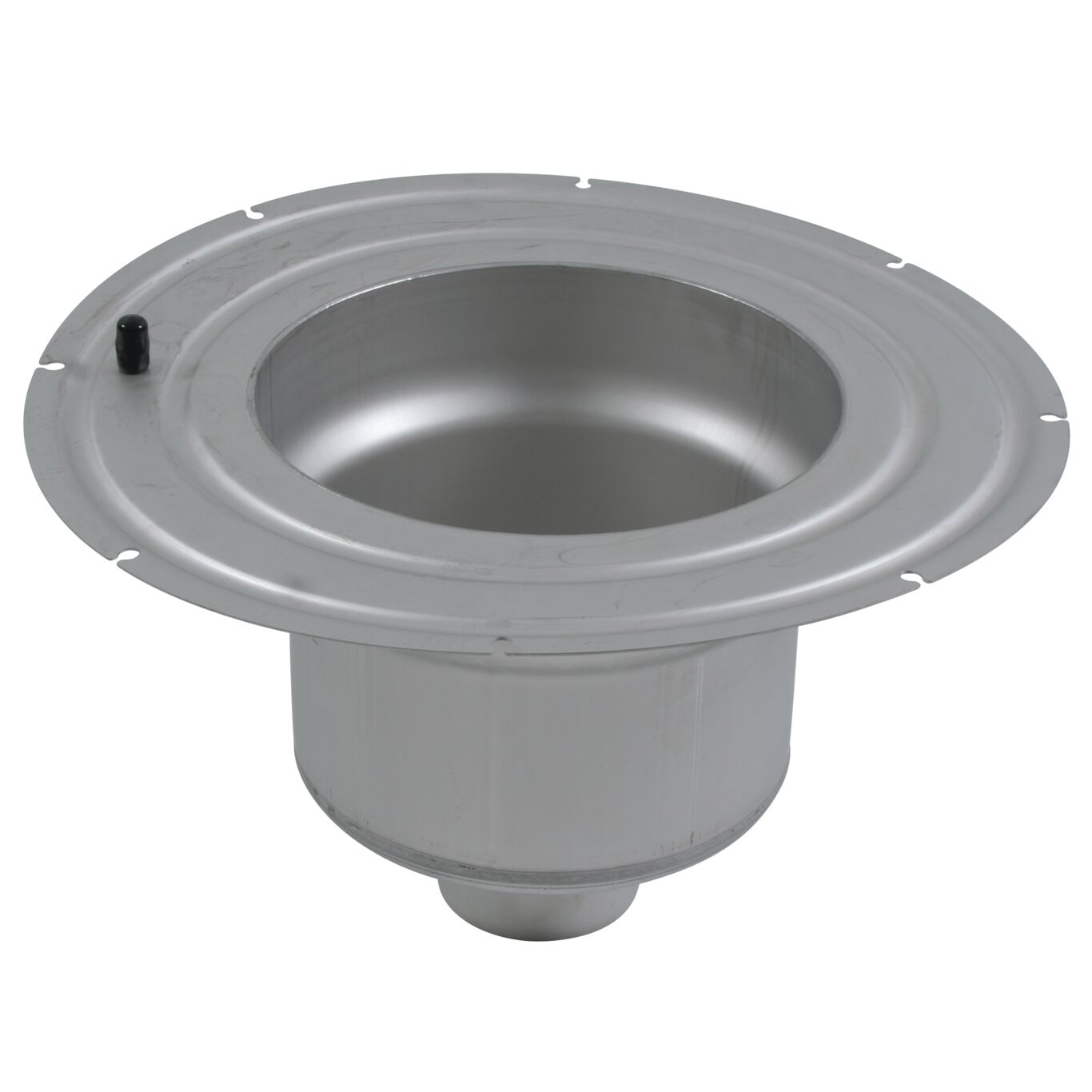

LOWER PART
-Liquid membrane flange
-Outlet: Ø110mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | Liquid Membrane |

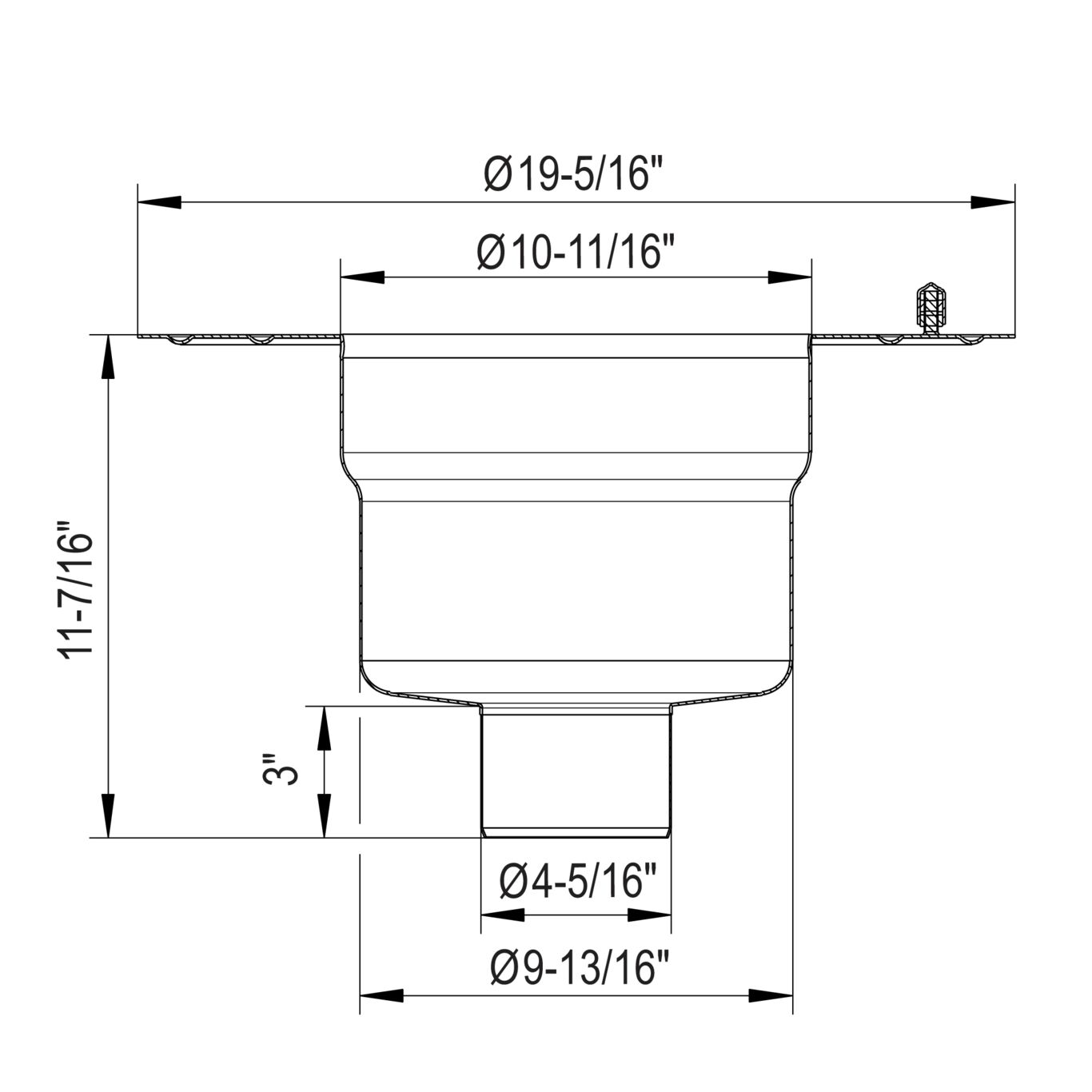

| Minimum Height (mm) | 290 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Weight (kg) | 5.72 |
| Weight (lbs) | 12.61 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
