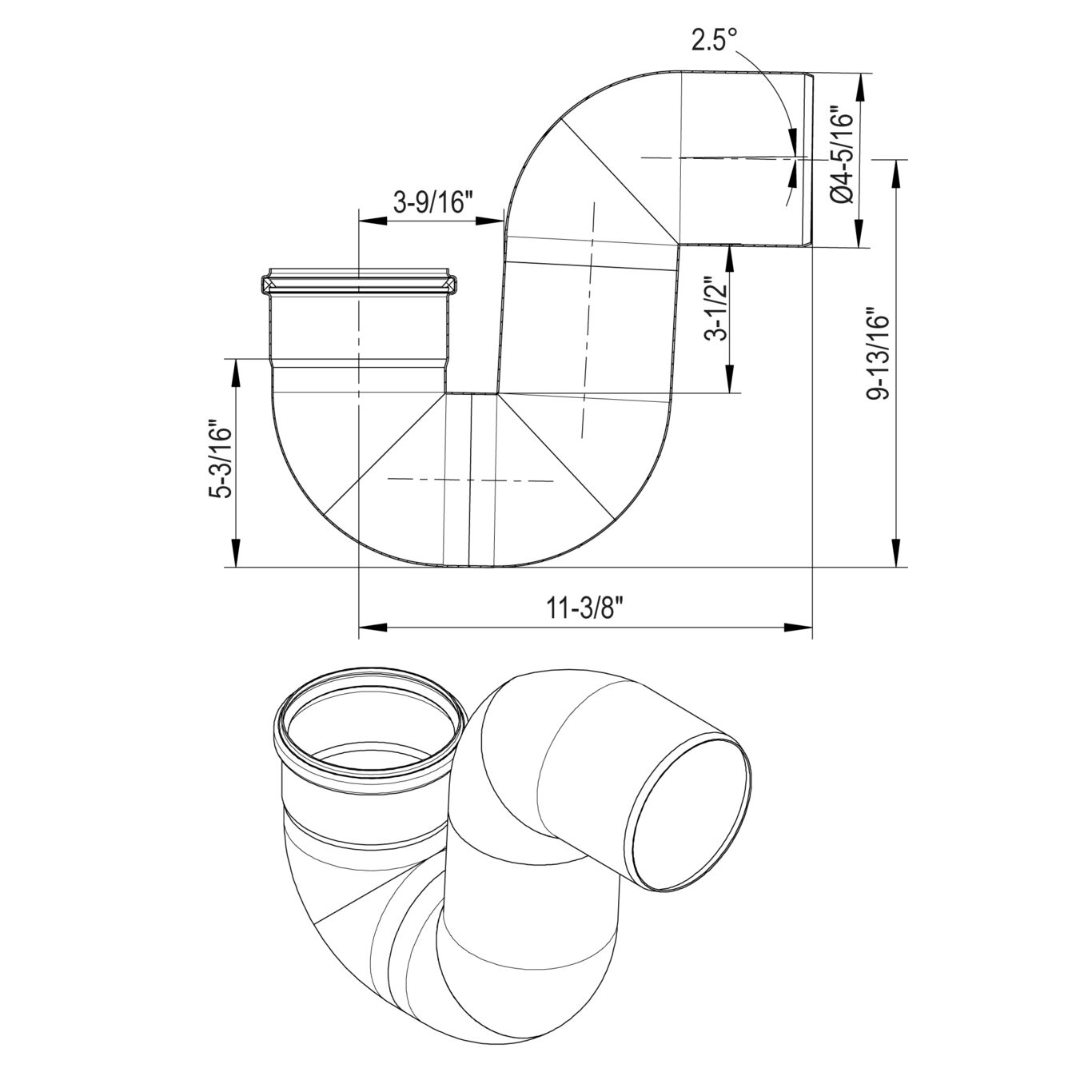

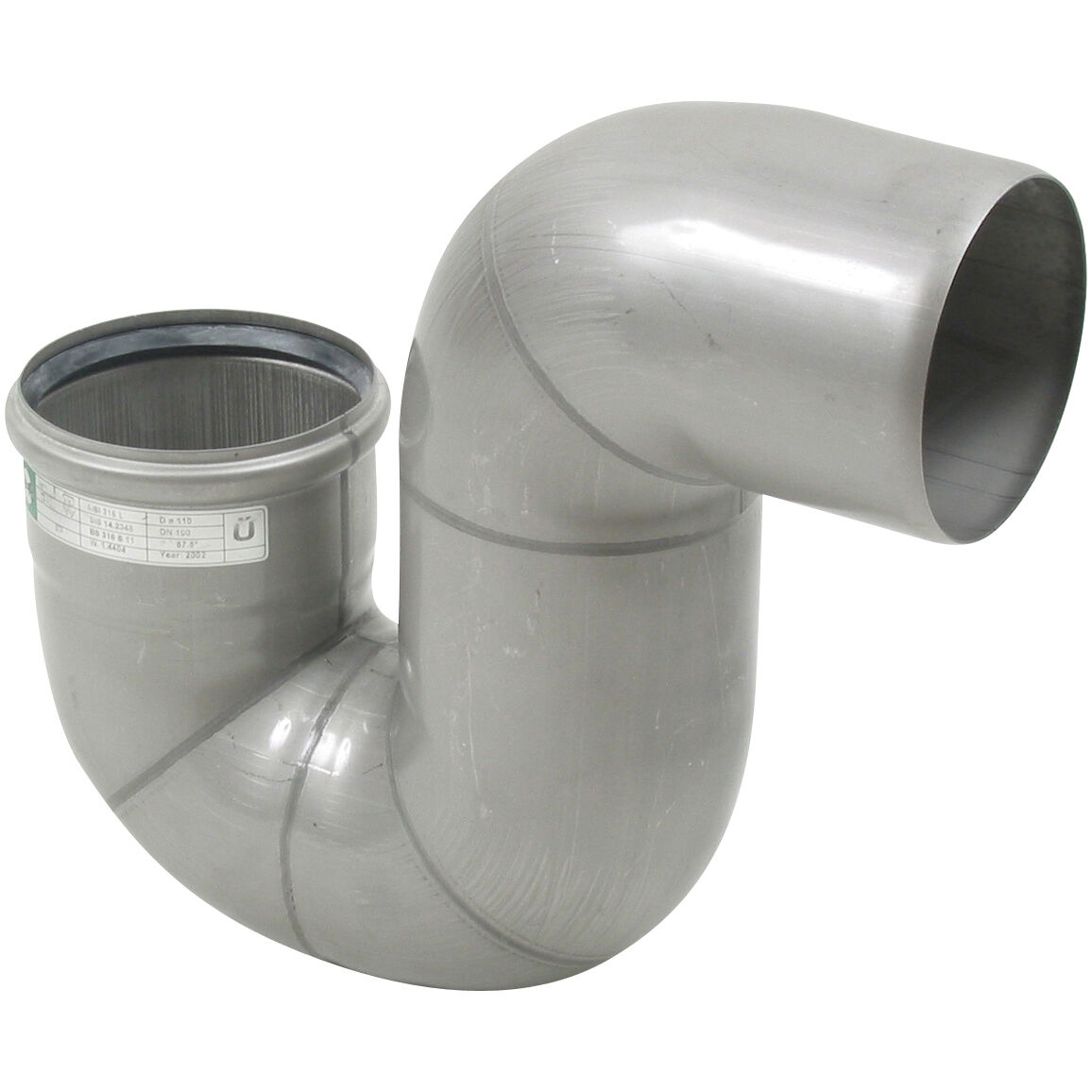

P-TRAP 87.5° - (525.090.110 S)

Part Of the Series: Water trap-p

Type no.: 525.090.110 S

EAN no.: 5705499101485

VVS no.: 160381410

RSK no.: 1550347

NRF no.: 3395043

LVI no.: 3304021


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Angle (°) 87.5
Field of Application Domestic / Industrial
Length (mm) 132
Material AISI 316L
Material (EN) EN 1.4404
Max Flow (l/s) 10.4
Minimum Flow (l/s) 3.4
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Water Seal Height (mm) 89
Weight (kg) 1.49
Weight (lbs) 3.28
