S-TRAP 180° - (525.180.110 S)
×
![]()
Part Of the Series: Water trap-S
Type no.: 525.180.110 S
EAN no.: 5705499114119
NRF no.: 3395049

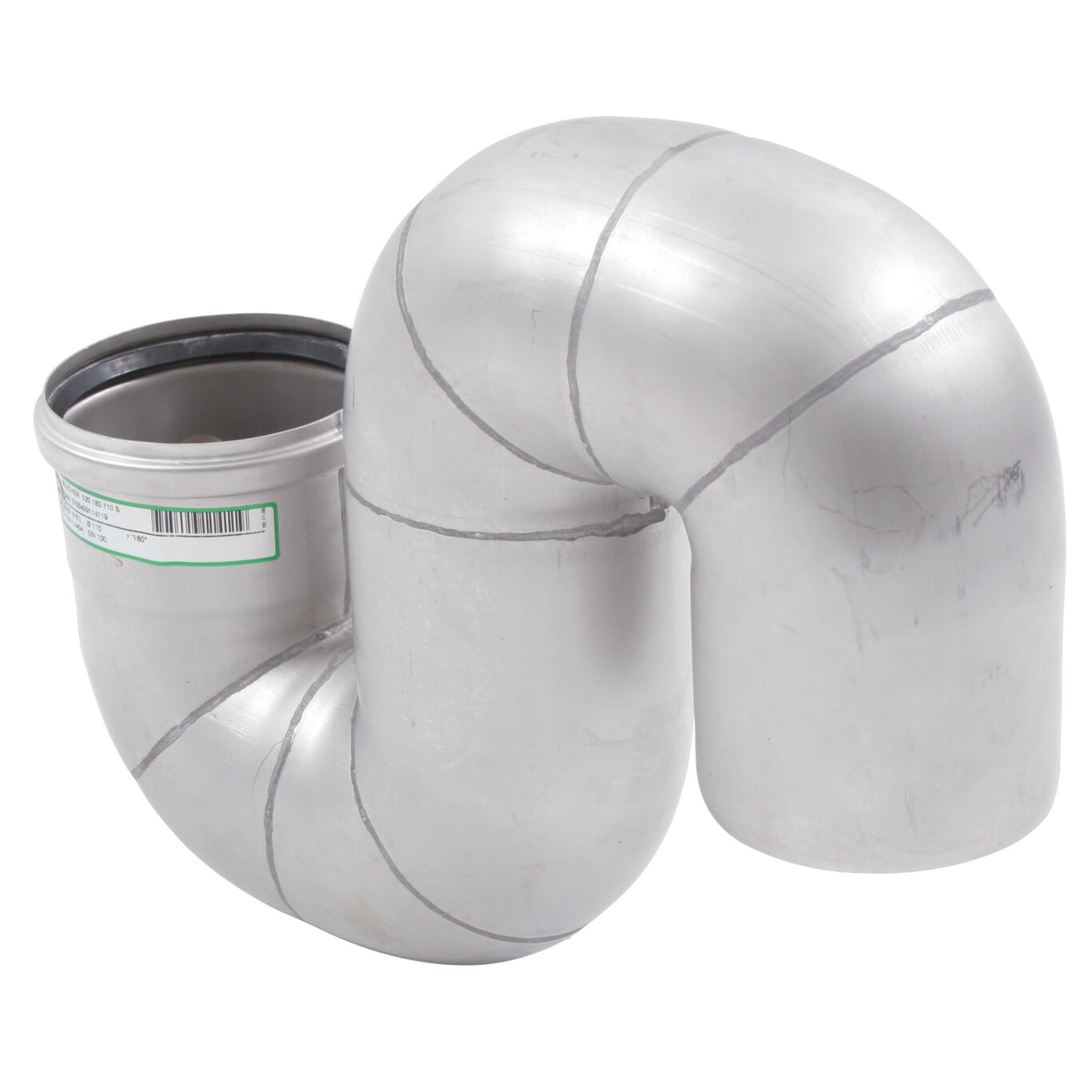

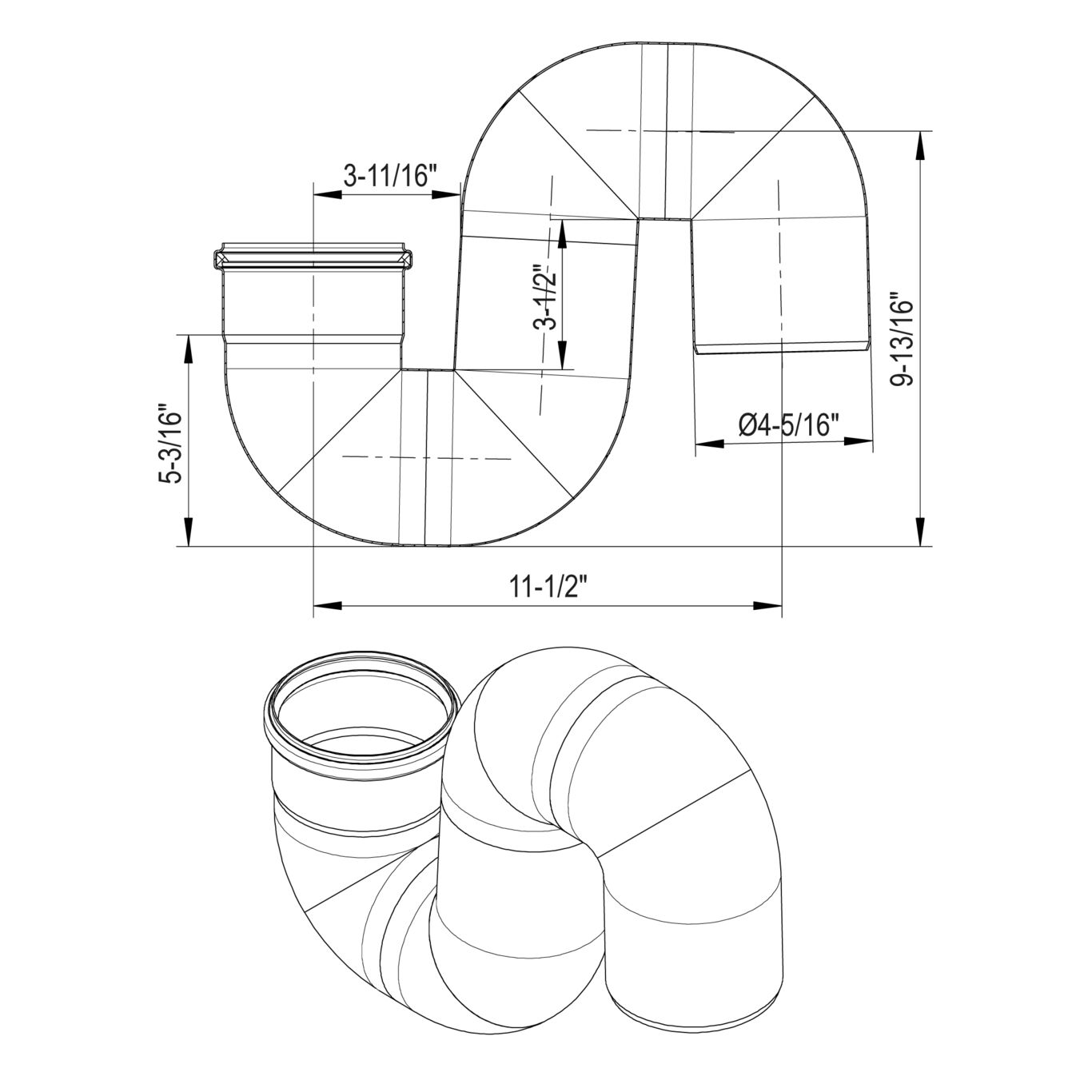

S-TRAP 180°
-Diameter: Ø4 inch
-Water seal height = 3-1/2 inch
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Angle (°) | 180 |
| Field of Application | Domestic / Industrial |
| Length (mm) | 132 |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Water Seal Height (mm) | 89 |
| Weight (kg) | 2 |
| Weight (lbs) | 4.41 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
