INTERMEDIATE SECTION WITH MEMBANE FLANGE - (777.003.000 S)
×
![]()
Part Of the Series: Intermediate section
Type no.: 777.003.000 S
EAN no.: 5705499112962
VVS no.: 153019622
LVI no.: 3303868

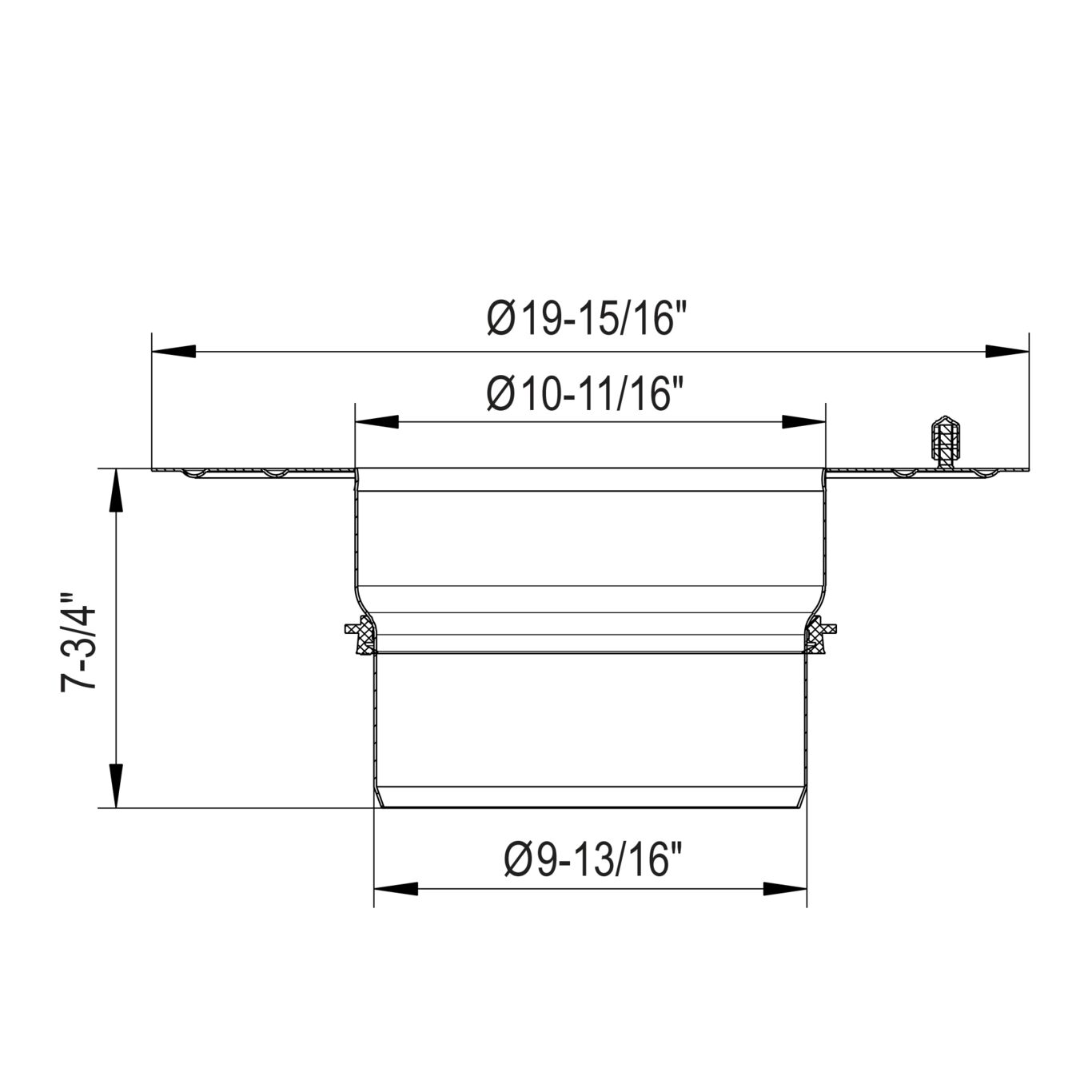

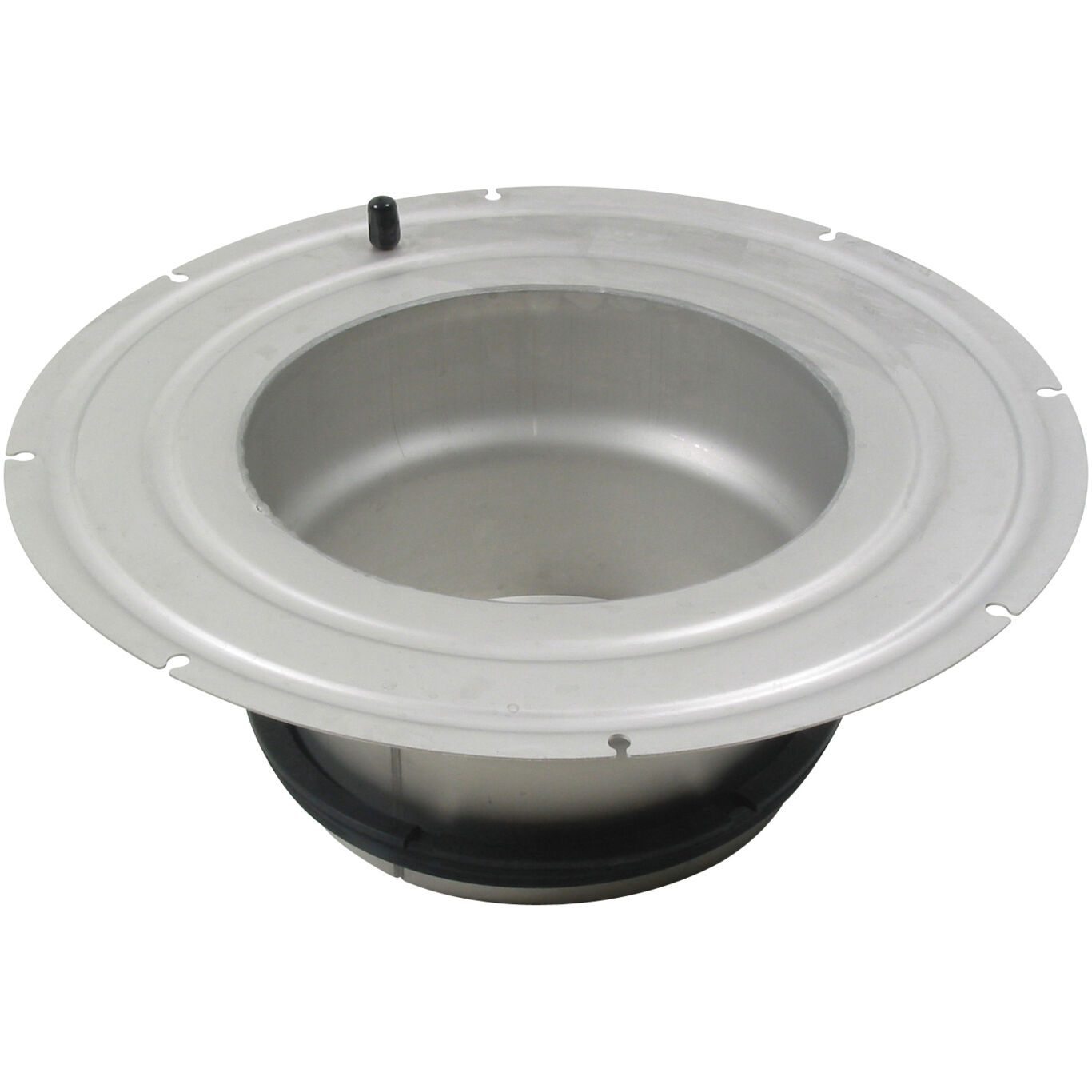

INTERMEDIATE SECTION WITH MEMBANE FLANGE
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Minimum Height (mm) | 196 |
| Outlet dia. (mm) | 250 |
| Outlet Diameter (Inch) | 10 |
| Weight (kg) | 5.04 |
| Weight (lbs) | 11.11 |
-
