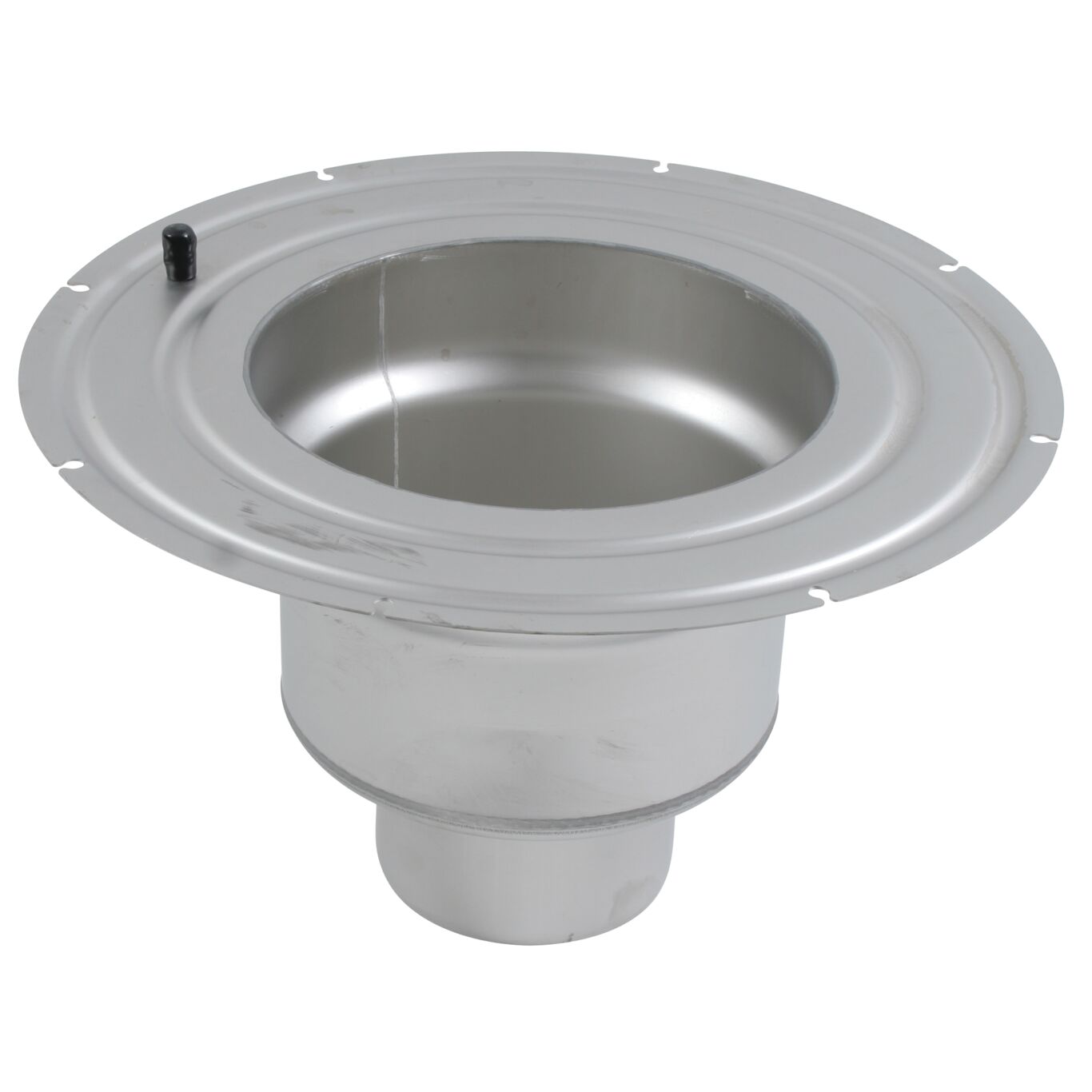

LOWER PART - (774.003.160 S)

Part Of the Series: Lower part-250

Type no.: 774.003.160 S

EAN no.: 5705499111972

VVS no.: 153008348

LVI no.: 3303796


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type Liquid Membrane

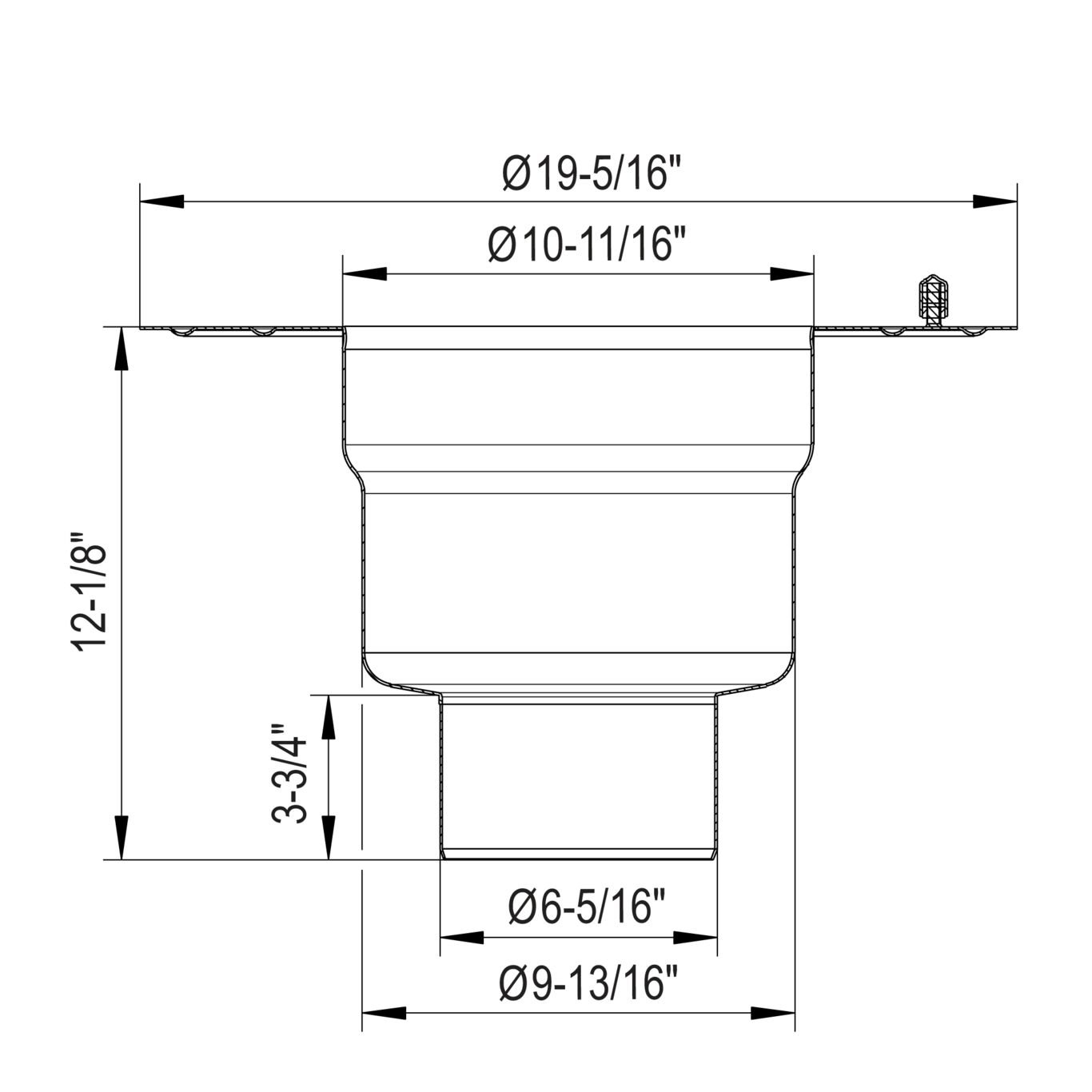

Minimum Height (mm) 308
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Weight (kg) 5.82
Weight (lbs) 12.83
