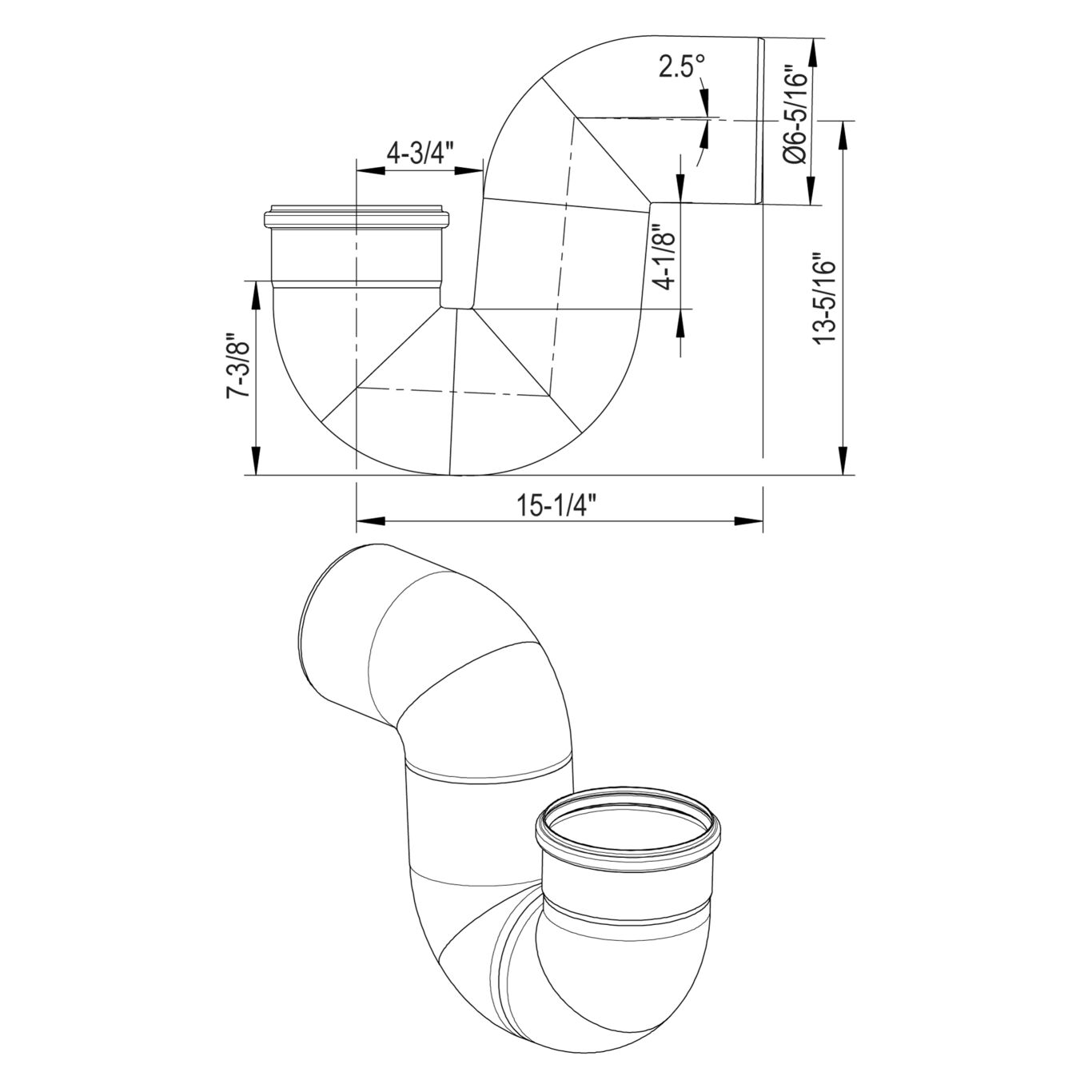

P-TRAP 87.5° - (525.090.160 S)

Part Of the Series: Water trap-p

Type no.: 525.090.160 S

EAN no.: 5705499101492

VVS no.: 160381460

RSK no.: 1550394

LVI no.: 3304022


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Angle (°) 87.5
Field of Application Industrial
Length (mm) 187
Material AISI 316L
Material (EN) EN 1.4404
Max Flow (l/s) 28.5
Minimum Flow (l/s) 7.5
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Water Seal Height (mm) 105
Weight (kg) 6.22
Weight (lbs) 13.71
