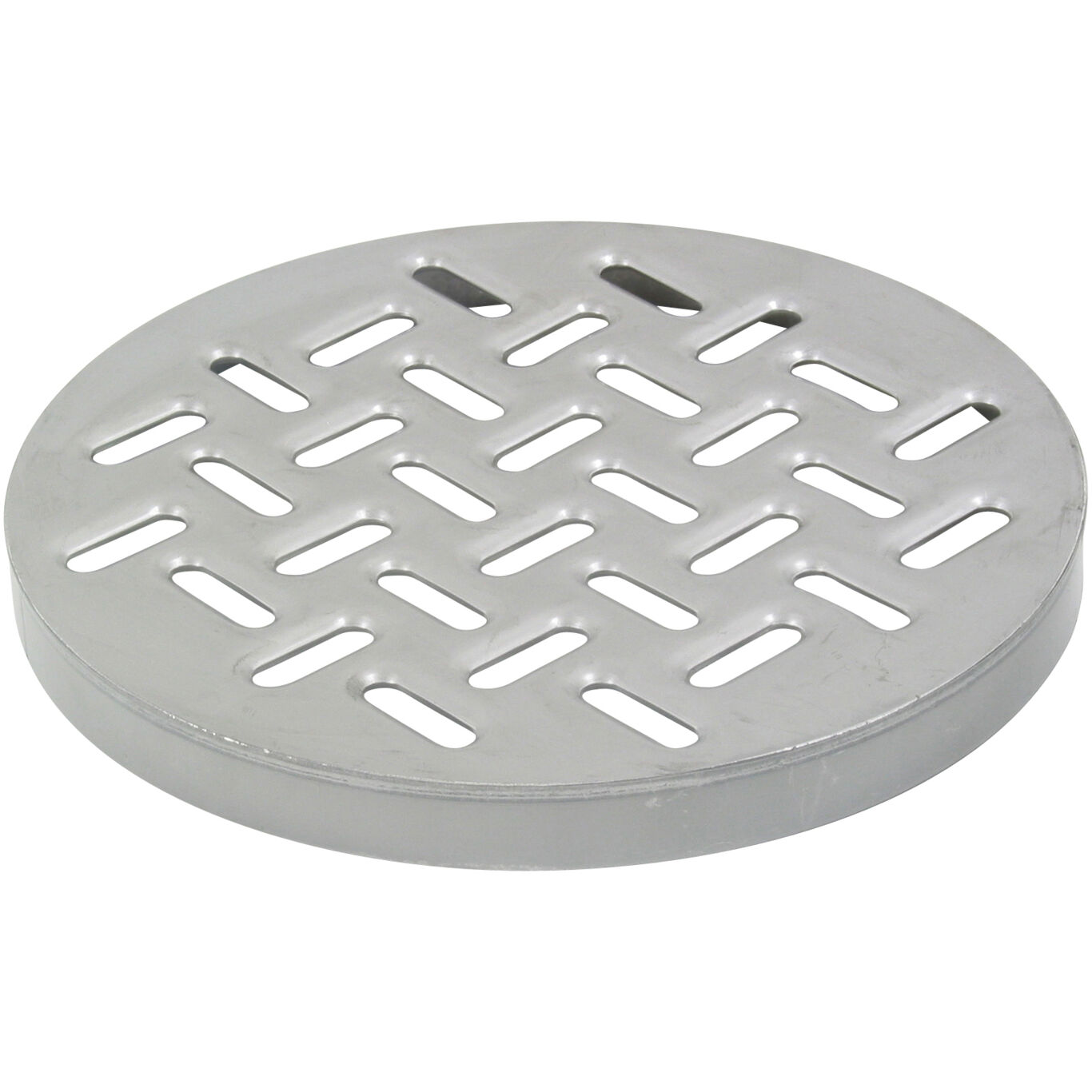

3MM GRATING CIRCLE - (790.273.000.03 S)

Part Of the Series: Grating-Drain-305-Vinyl-332

Type no.: 790.273.000.03 S

EAN no.: 5705499106855

VVS no.: 153559173

RSK no.: 7121877

NRF no.: 3395165

LVI no.: 3304052

Size: Ø295


Download CAD Collections

2d DWG files

3d STP files

Product Specification
Field of Application Industrial
Load Class EN1253 L15
Load class EN1253(kg) L15 (1000)
Load class EN1253(lbs) L15 (2205)
Material AISI 316L
Material (EN) EN 1.4404
Minimum Height (mm) 25
Non slip R10
Number of Screws 0
Shape Round
Size (mm) Ø295
Size of Frame (Inch) Ø11-5/8
Weight (kg) 1.6
Weight (lbs) 3.53
