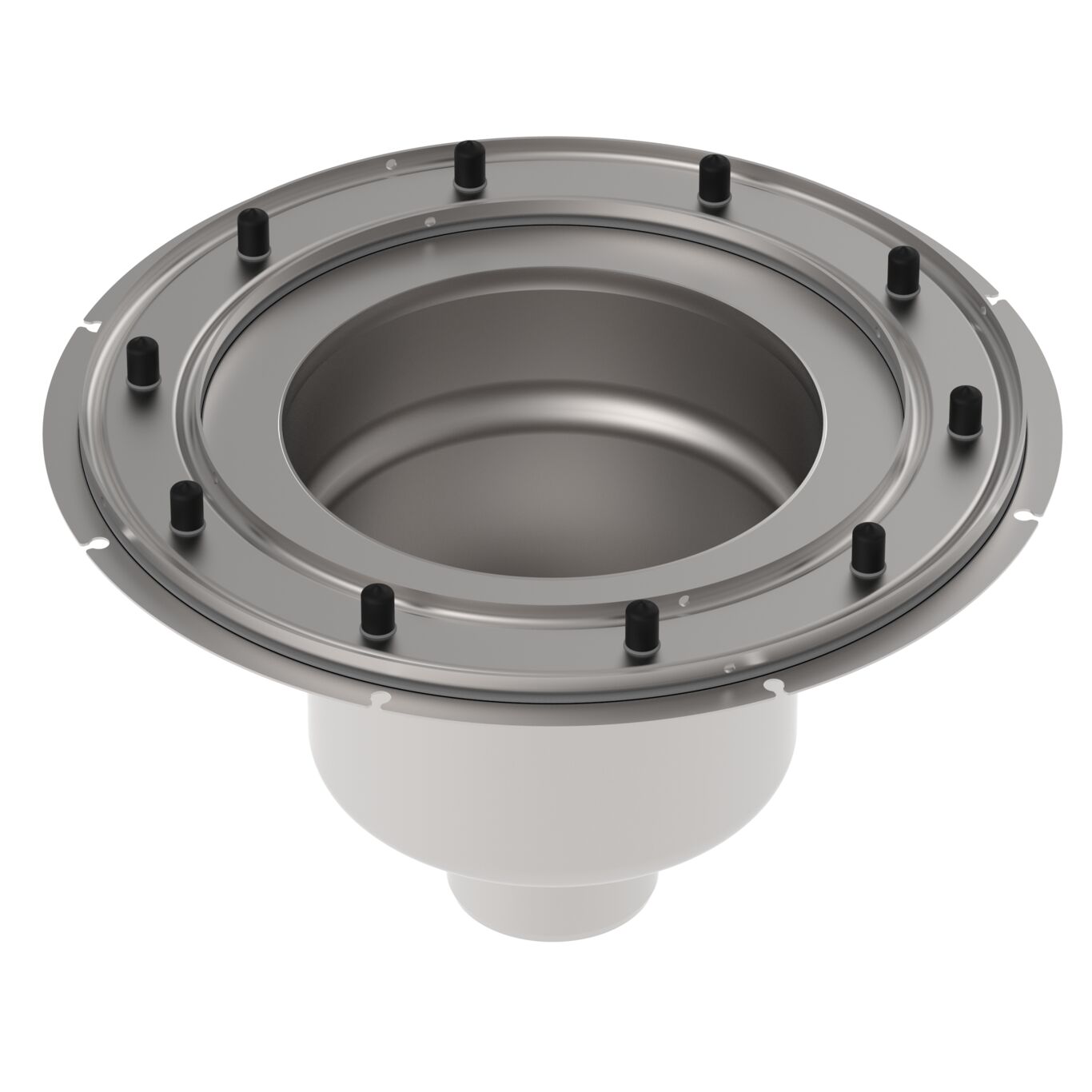

LOWER PART - (775.003.110 S)

Part Of the Series: Lower part-250

Type no.: 775.003.110 S

EAN no.: 5705499112627

VVS no.: 153008376

LVI no.: 3303802


Download CAD Collections

2d DWG files

3d STP files

Product Specification
Field of Application Industrial
Material AISI 316L
Material (EN) EN 1.4404
Membrane Type Sheet Membrane

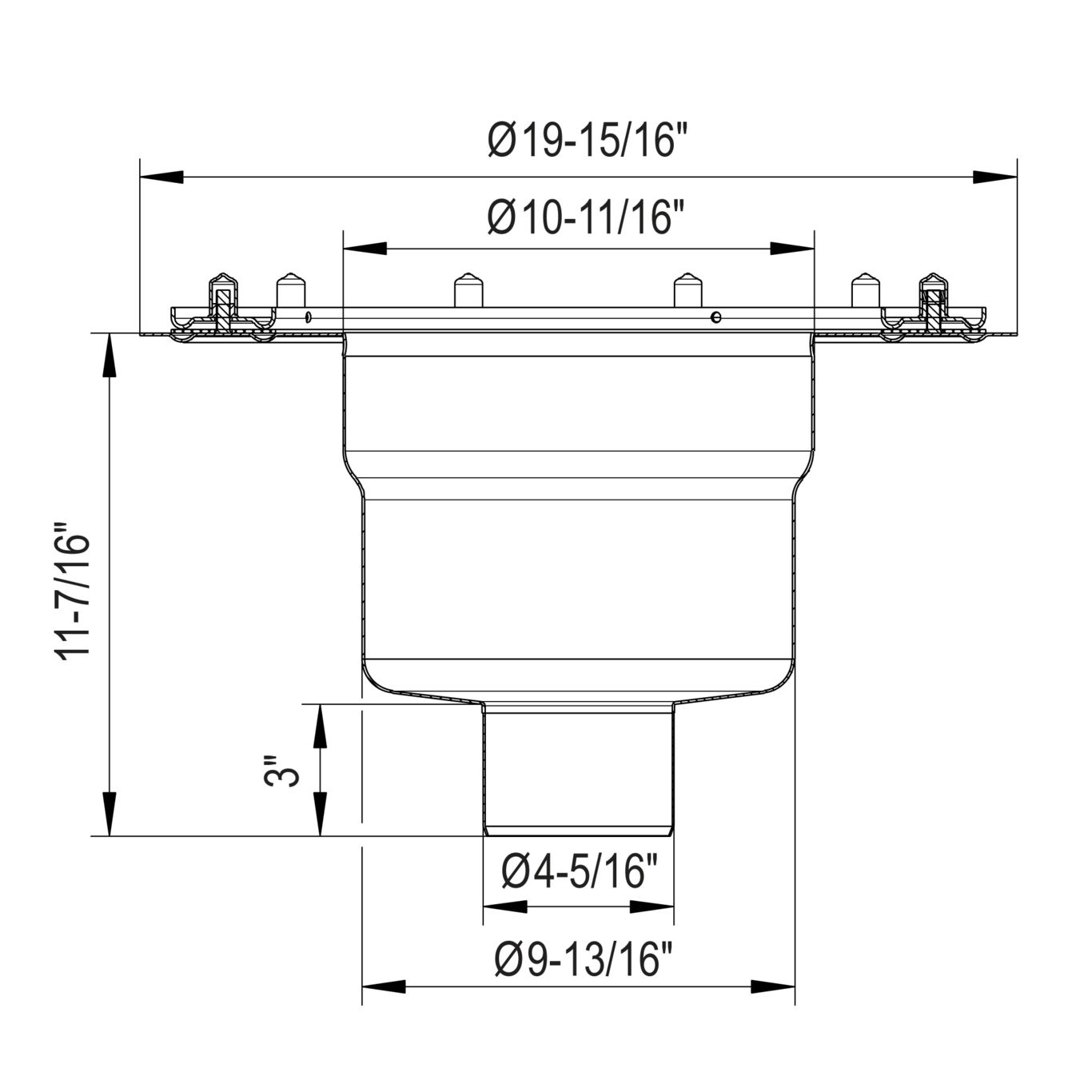

Minimum Height (mm) 290
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Weight (kg) 7.71
Weight (lbs) 17
