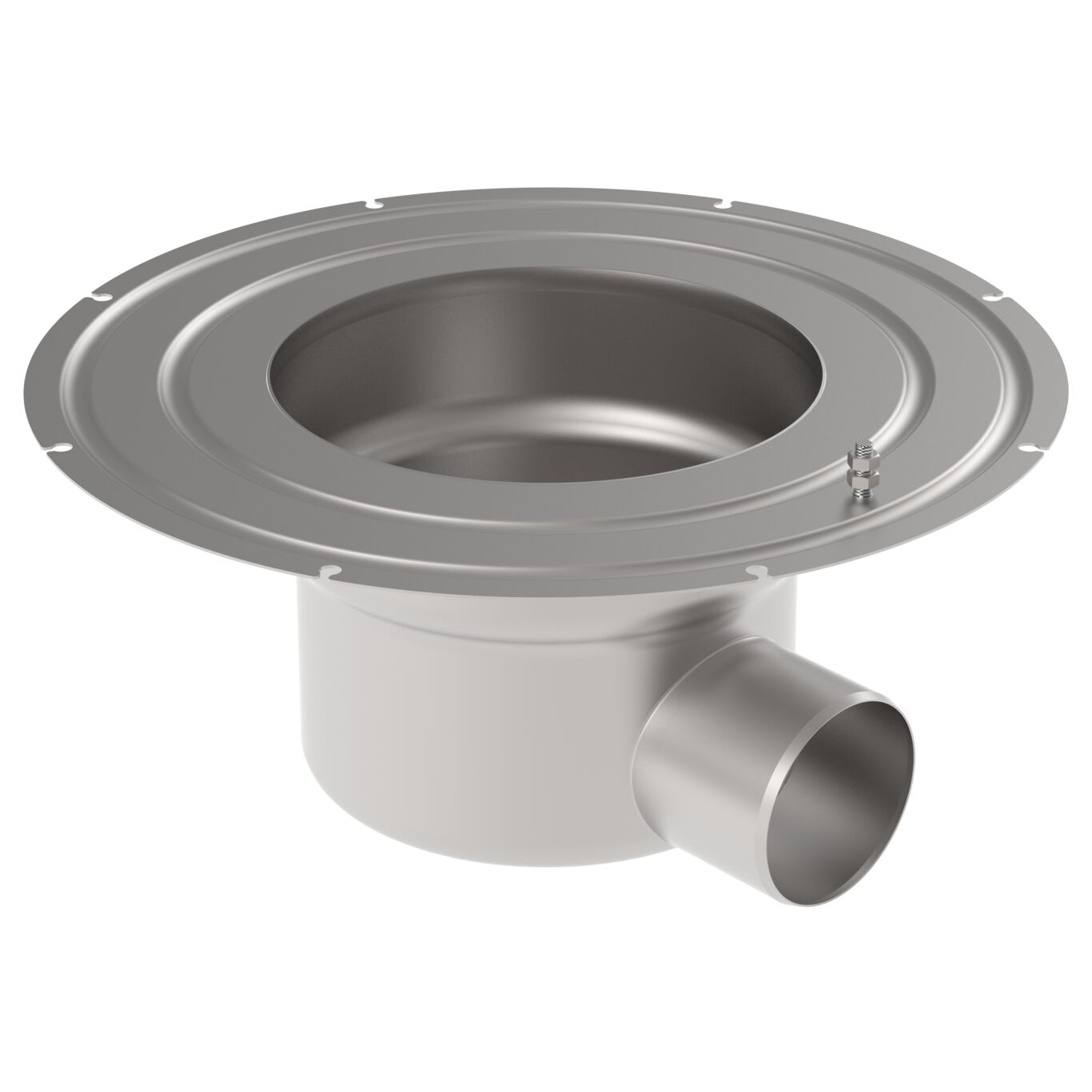

LOWER PART - (769.003.110 S)
×
![]()
Part Of the Series: Lower part-250
Type no.: 769.003.110 S
EAN no.: 5705499110913
VVS no.: 153019346
LVI no.: 3303778
LOWER PART
-Liquid membrane flange
-Outlet: Ø110mm, horizontal
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 216 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Horizontal |
| Weight (kg) | 6.36 |
| Weight (lbs) | 14.02 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
