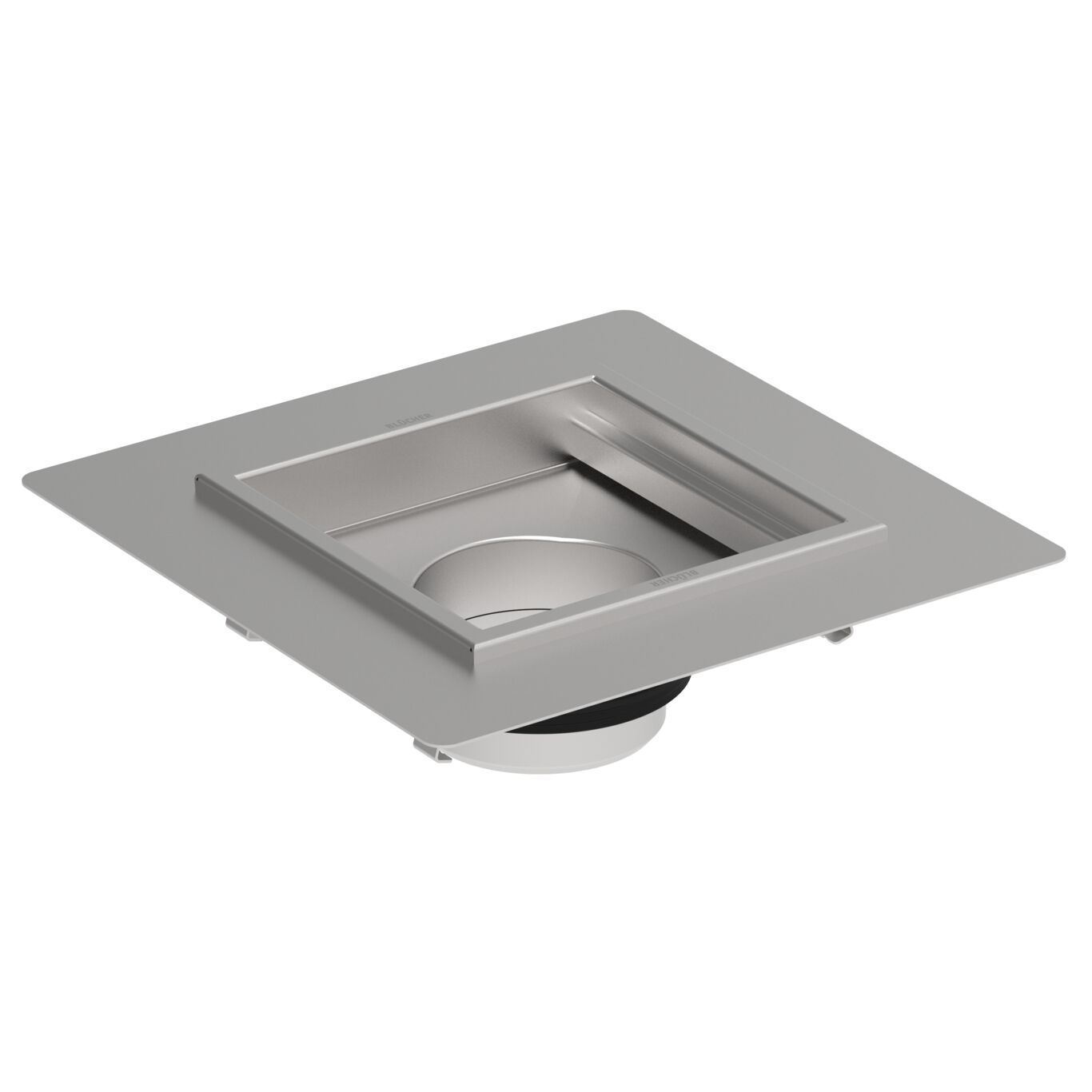

KITCHEN CHANNEL 300x300 - (668EK003-00)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 668EK003-00
EAN no.: 5705499134704
RSK no.: 7122970
LVI no.: 3304157
Size: 300x300
KITCHEN CHANNEL 12 x 12
-Adjustable
-Floor: concrete, tiled and resin
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Maximum Height (mm) | 173 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 155 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 300x300 |
| Size of Frame (Inch) | 12 x 12 |
| Weight (kg) | 6.4 |
| Weight (lbs) | 14.11 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
