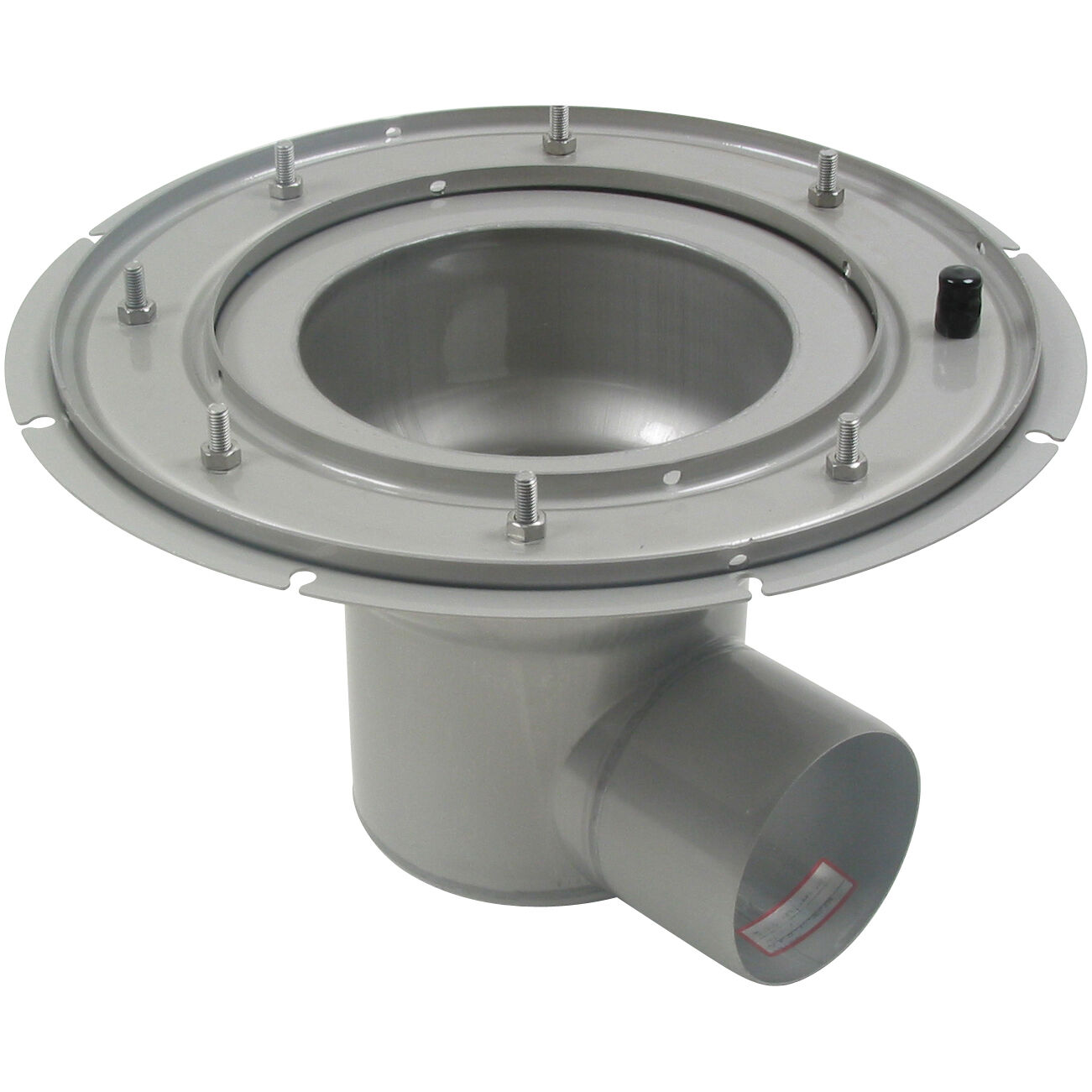

LOWER PART - (771.002.110)

Part Of the Series: Lower part-160

Type no.: 771.002.110

EAN no.: 5705499111248

NRF no.: 3396335

LVI no.: 3303783

Download CAD Collections

2d DWG files

3d STP files

Download MasterSpec Documents


Product Specification
Field of Application Industrial
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Sheet Membrane
Minimum Height (mm) 218
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Horizontal
Weight (kg) 4.88
Weight (lbs) 10.76
