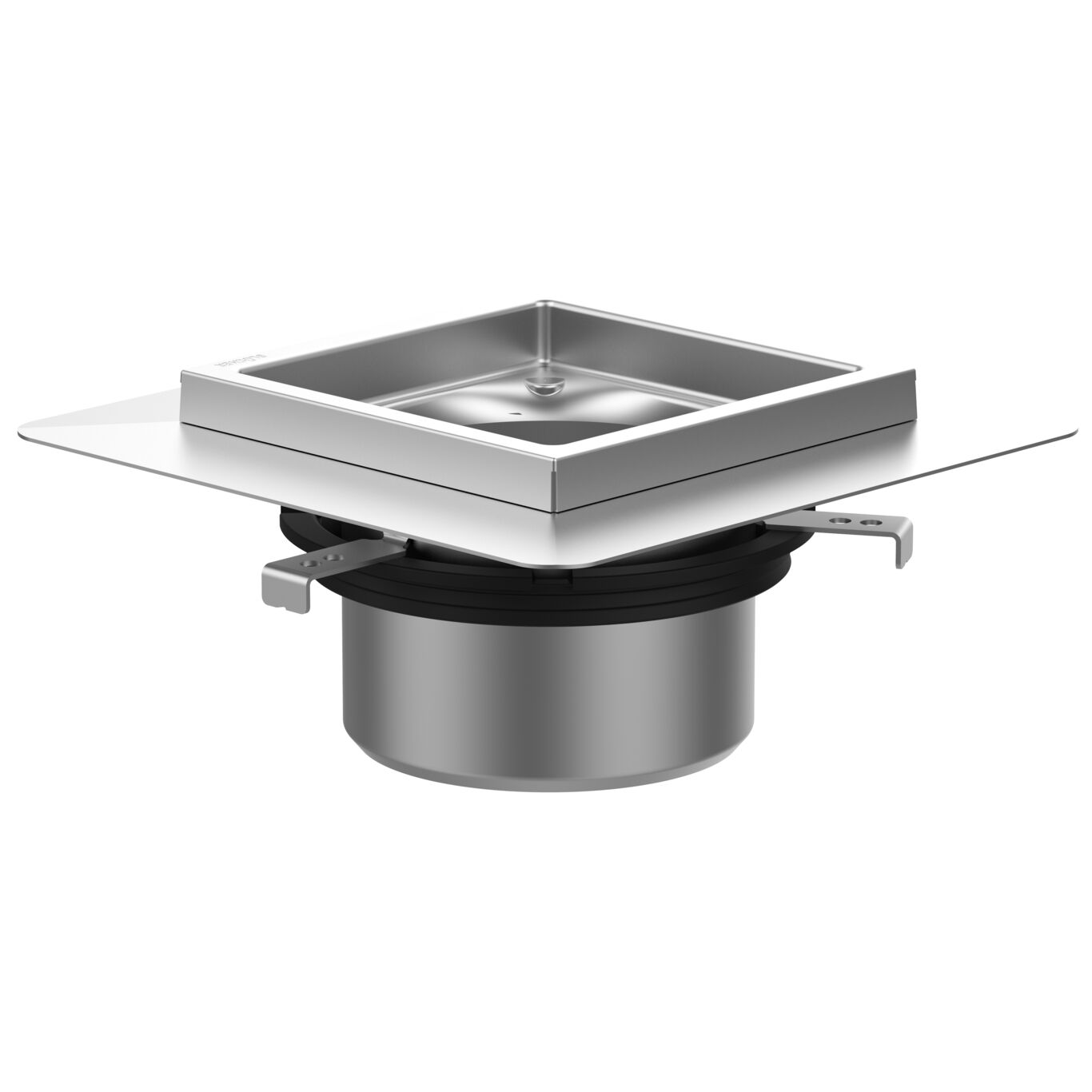

UPPER PART, LOW - (774.422.000.01)
×
![]()
Part Of the Series: Upper part-Liquid membrane-200
Type no.: 774.422.000.01
EAN no.: 5705499115734
Size: 200x200
UPPER PART, LOW
-With screw lock
-Floor: concrete and tiled
-Frame: 200x200mm
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 1 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Shape | Square |
| Size (mm) | 200x200 |
| Size of Frame (Inch) | 7-7/8 x 7-7/8 |
| Weight (kg) | 4.55 |
| Weight (lbs) | 10.03 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
