LOWER PART - (775.002.075)
×
![]()
Part Of the Series: Lower part-160
Type no.: 775.002.075
EAN no.: 5705499112573
NRF no.: 3396341
LVI no.: 3303797

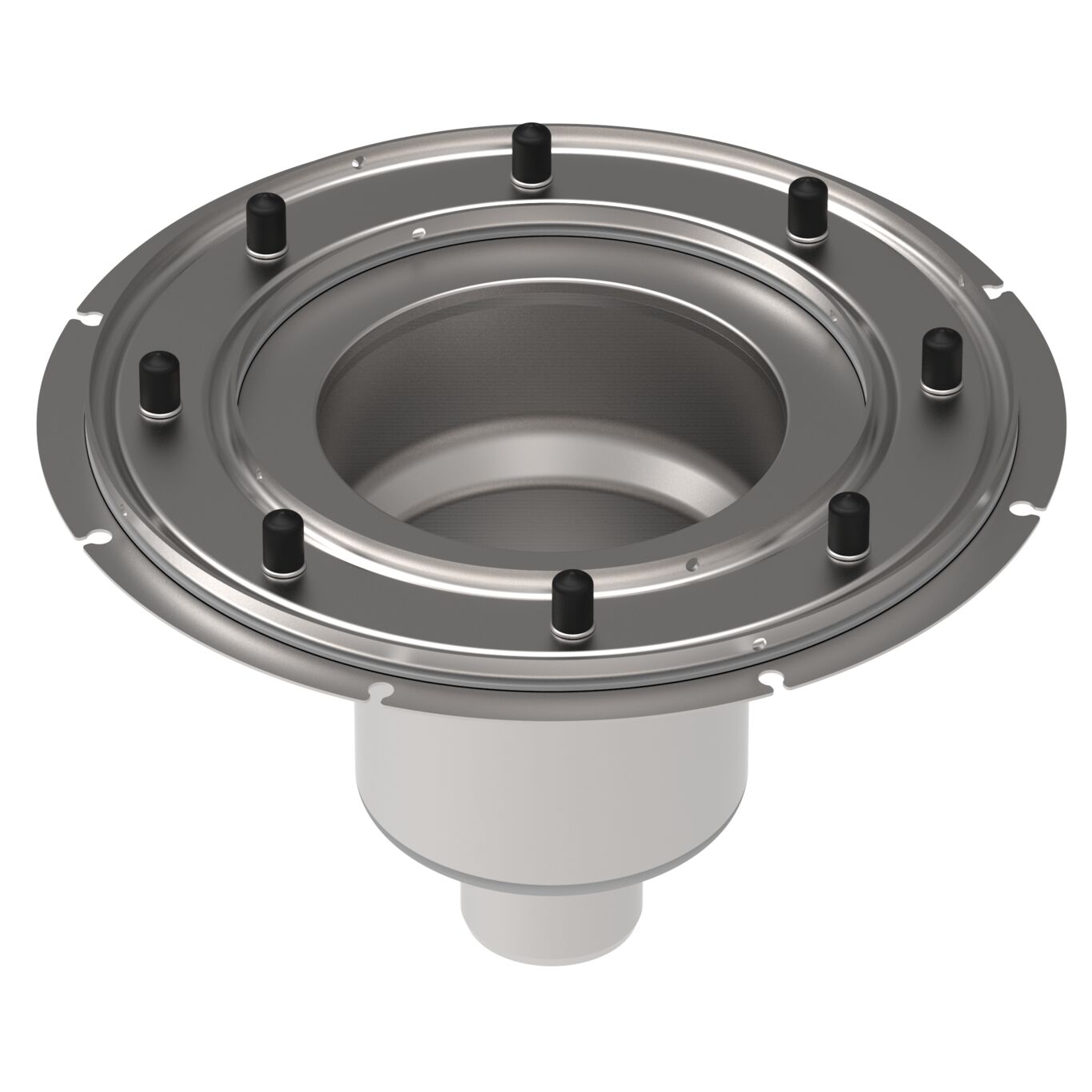

LOWER PART
-Sheet membrane flange
-Outlet: Ø75mm, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-113, BFD-113-R
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Sheet Membrane |
| Minimum Height (mm) | 267 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Weight (kg) | 4.39 |
| Weight (lbs) | 9.68 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
