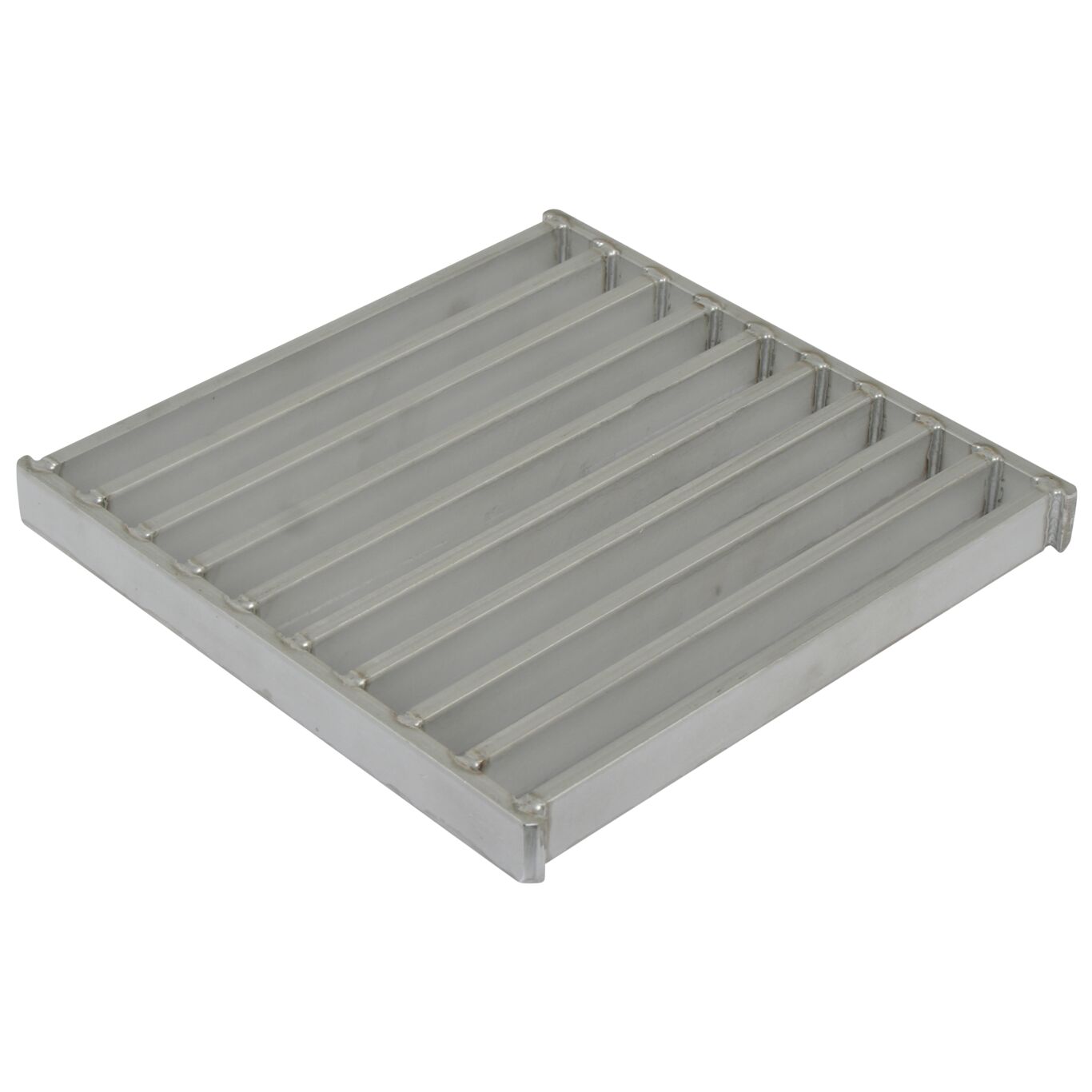

LADDER GRATING SQUARE - (790.268.000.28)

Part Of the Series: Grating-Drain-300

Type no.: 790.268.000.28

EAN no.: 5705499128611

RSK no.: 7123463

NRF no.: 3397195

Size: 300x300

Download CAD Collections

2d DWG files

3d STP files

Download MasterSpec Documents


Product Specification
Field of Application Industrial
Load Class EN1253 R50
Load class EN1253(kg) R50 (7000)
Load class EN1253(lbs) R50 (15432)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 25
Non slip R11
Number of Screws 0
Shape Square
Size (mm) 300x300
Size of Frame (Inch) 11-3/4 x 11-3/4
Weight (kg) 4.82
Weight (lbs) 10.63
