3MM GRATING SQUARE - (790.268.000.03)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.000.03
EAN no.: 5705499113631
RSK no.: 7121875
NRF no.: 3396413
LVI no.: 3304033
Size: 300x300

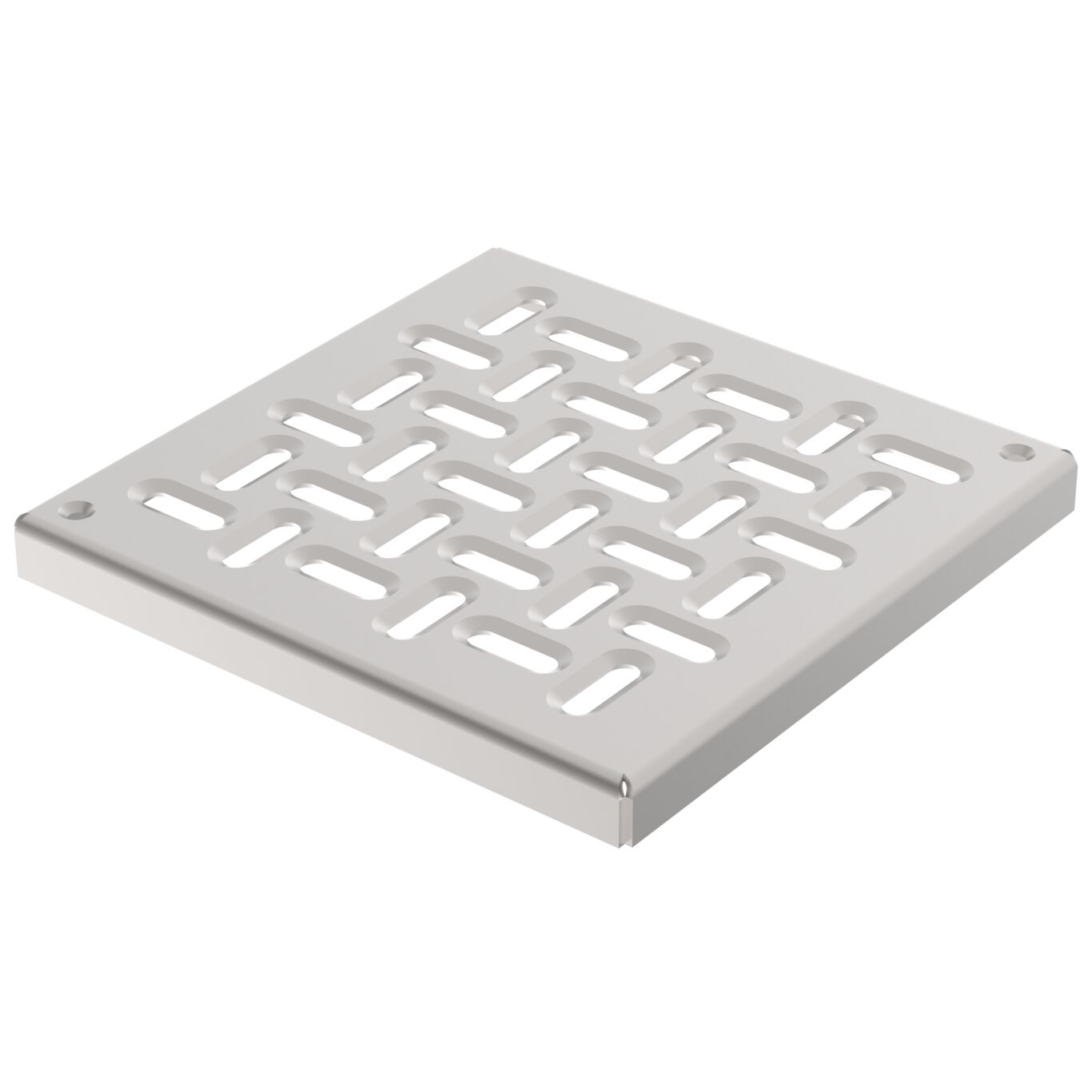

3MM GRATING SQUARE

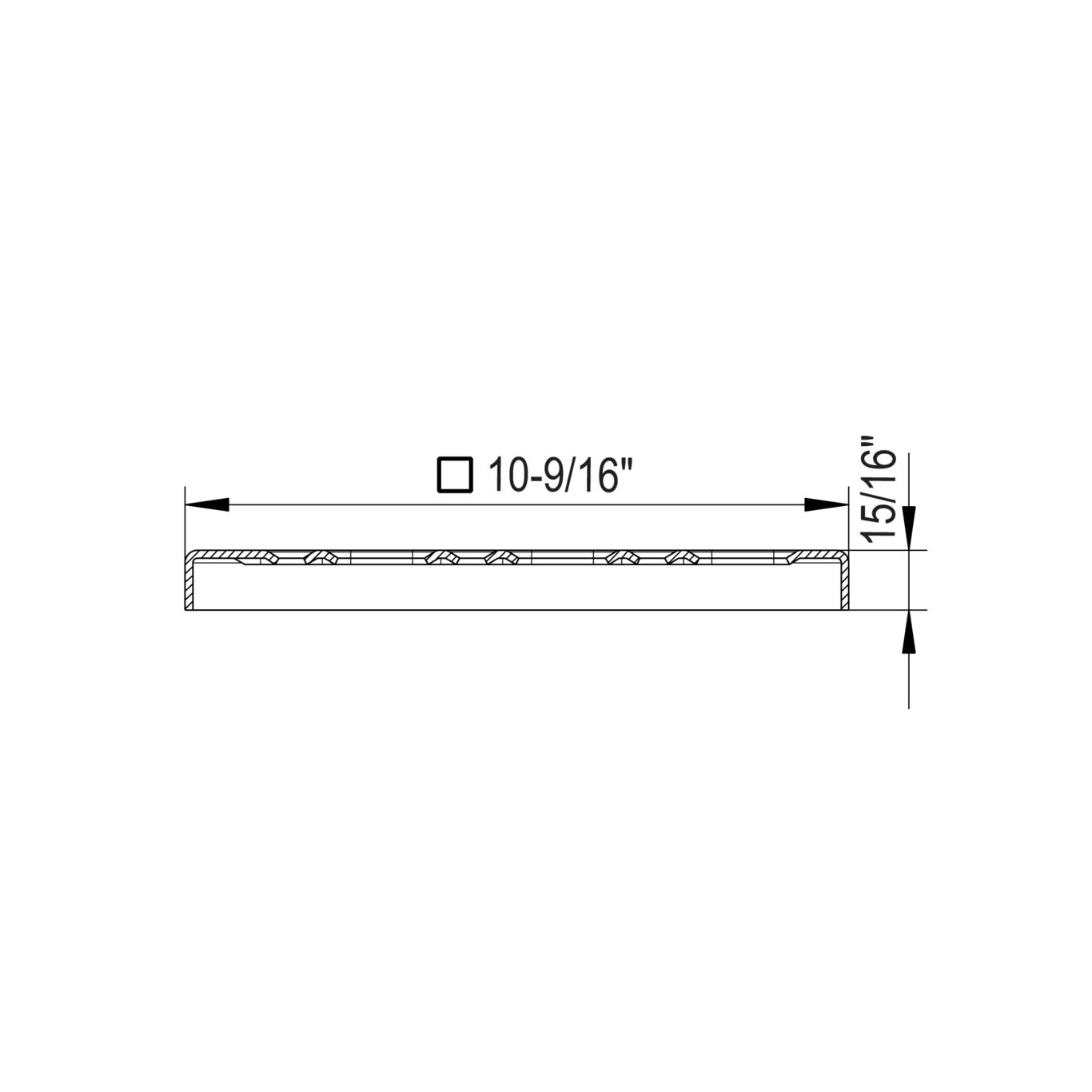

-Grating: 268x268mm
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-133, BFD-134, BFD-134-SO, BFD-134-VP, BFD-136, BFD-136-SO, BFD-234, BFD-234-SO, BFD-236, BFD-236-SO, BFD-334, BFD-336, BFD-343, BFD-343-SO, BFD-343-TPT, BFD-344, BFD-344-TPT, BFD-346, BFD-346-SO, BFD-348, BFD-563, BFD-564, BFD-564-TPT
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | L15 |
| Load class EN1253(kg) | L15 (1250) |
| Load class EN1253(lbs) | L15 (2756) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 24 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 300x300 |
| Size of Frame (Inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 1.89 |
| Weight (lbs) | 4.17 |
-
