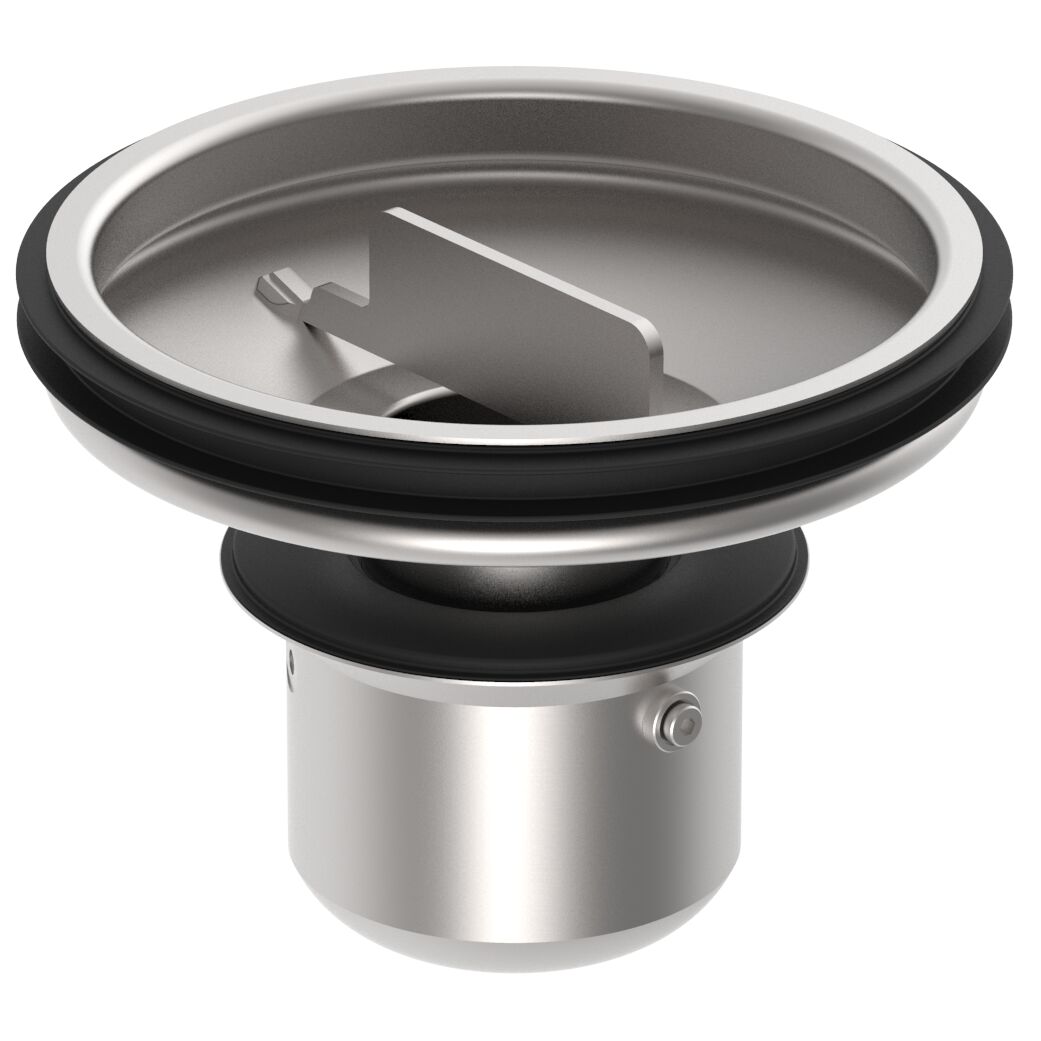

REMOVABLE WATER TRAP WITH ODOUR STOP - (563.002.000)

Part Of the Series: Water trap-160

Type no.: 563.002.000

EAN no.: 5705499135275

RSK no.: 7120429

NRF no.: 3395086

LVI no.: 3304180


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 304
Material (EN) EN 1.4301
Max Flow (l/s) 1.3
Minimum Height (mm) 120
Outlet dia. (mm) 157
Outlet Diameter (Inch) 6
Water Seal Height (mm) 51
Weight (kg) 0.59
Weight (lbs) 1.3
