HYGIENICPRO GRATING SQUARE - (790.268.000.60)
×
![]()
Part Of the Series: Grating-Drain-300
Type no.: 790.268.000.60
EAN no.: 5705499113686
VVS no.: 153539195
RSK no.: 7121879
NRF no.: 3396316
LVI no.: 3304048
Size: 300x300

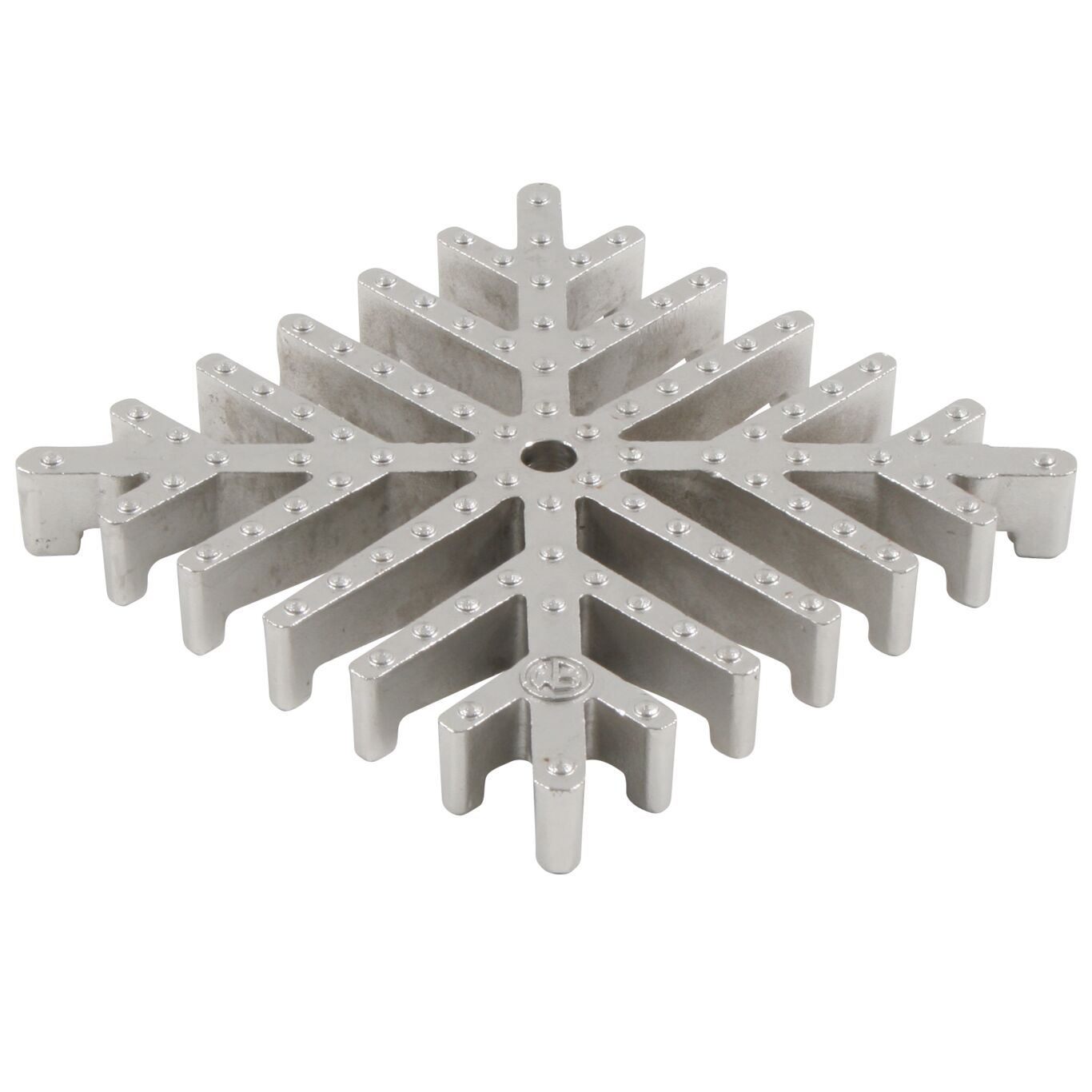

HYGIENICPRO GRATING SQUARE

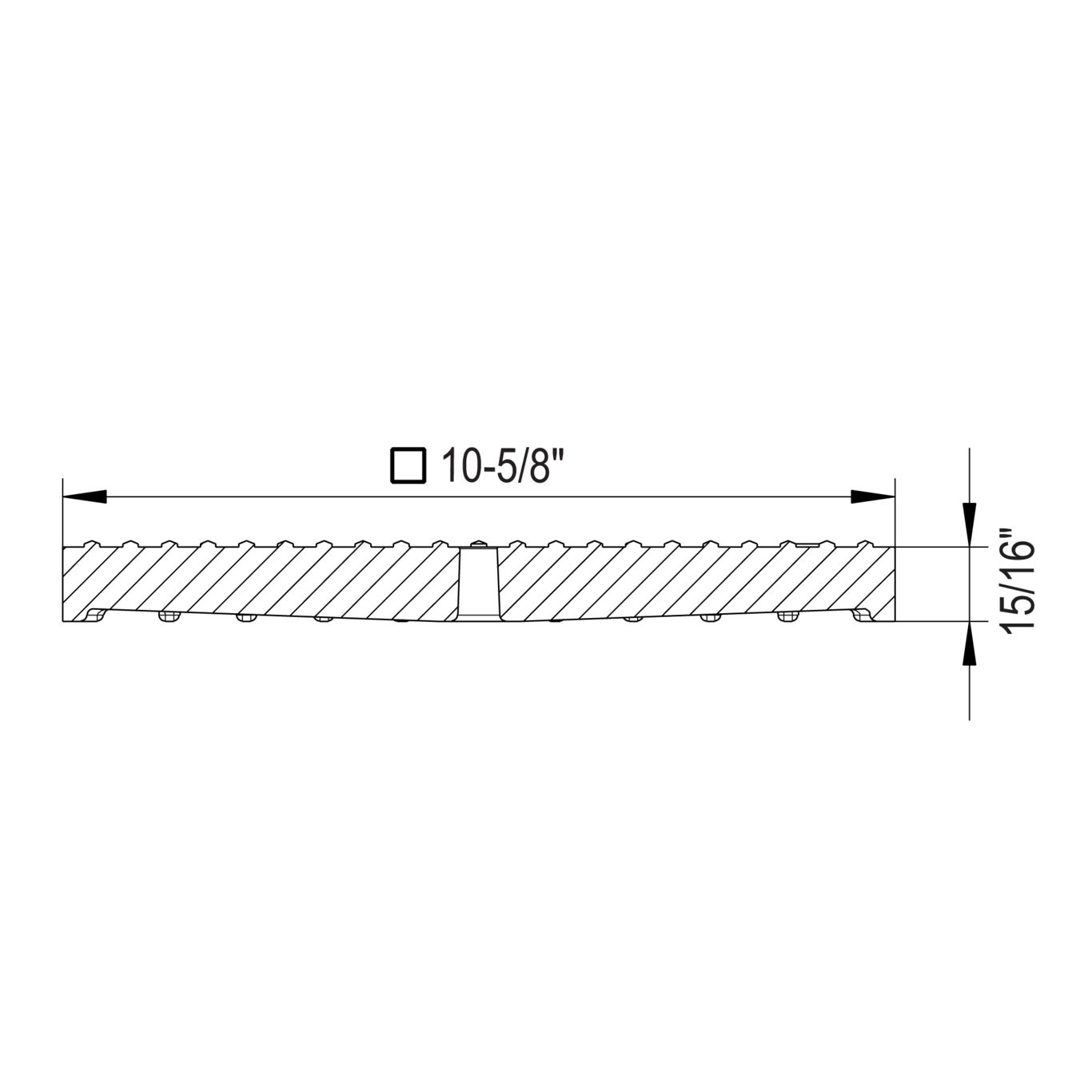

-Grating: 270x270mm
-Stainless steel: AISI304C/EN1.4308
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | R50 |
| Load class EN1253(kg) | R50 (5000) |
| Load class EN1253(lbs) | R50 (11023) |
| Material | AISI 304C |
| Material (EN) | EN 1.4308 |
| Minimum Height (mm) | 24 |
| Non slip | R10 |
| Number of Screws | 0 |
| Shape | Square |
| Size (mm) | 300x300 |
| Size of Frame (Inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 5.36 |
| Weight (lbs) | 11.82 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
