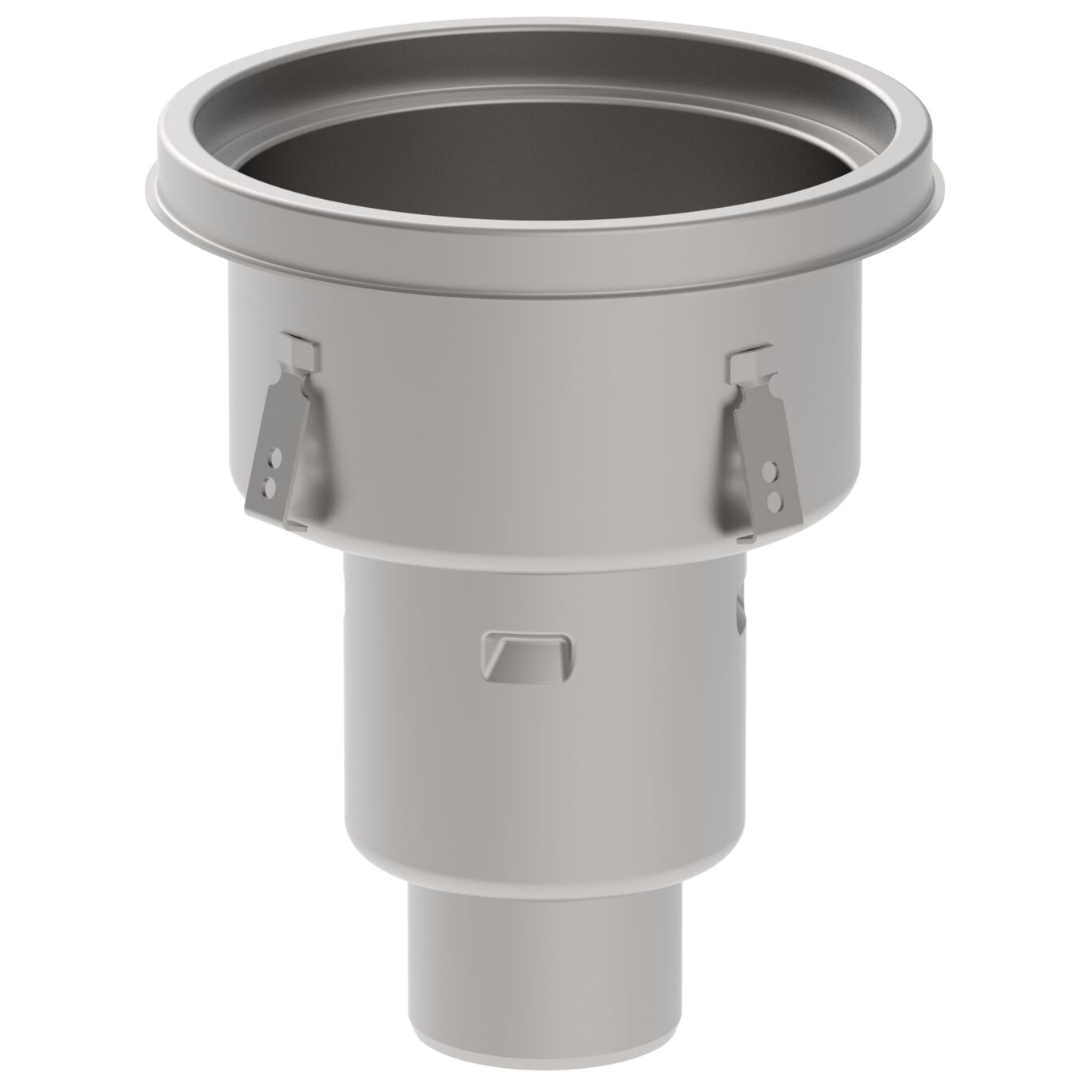

HYGIENICPRO INDUSTRIAL DRAIN, MEDIUM - (755.503.110)

Part Of the Series: Drain-No membrane-305

Type no.: 755.503.110

EAN no.: 5705499137781

VVS no.: 221803002

LVI no.: 3305600

Size: Ø305


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Adjustable No
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 378
Number of Inlets 0
Number of Screw Holes 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Shape Round

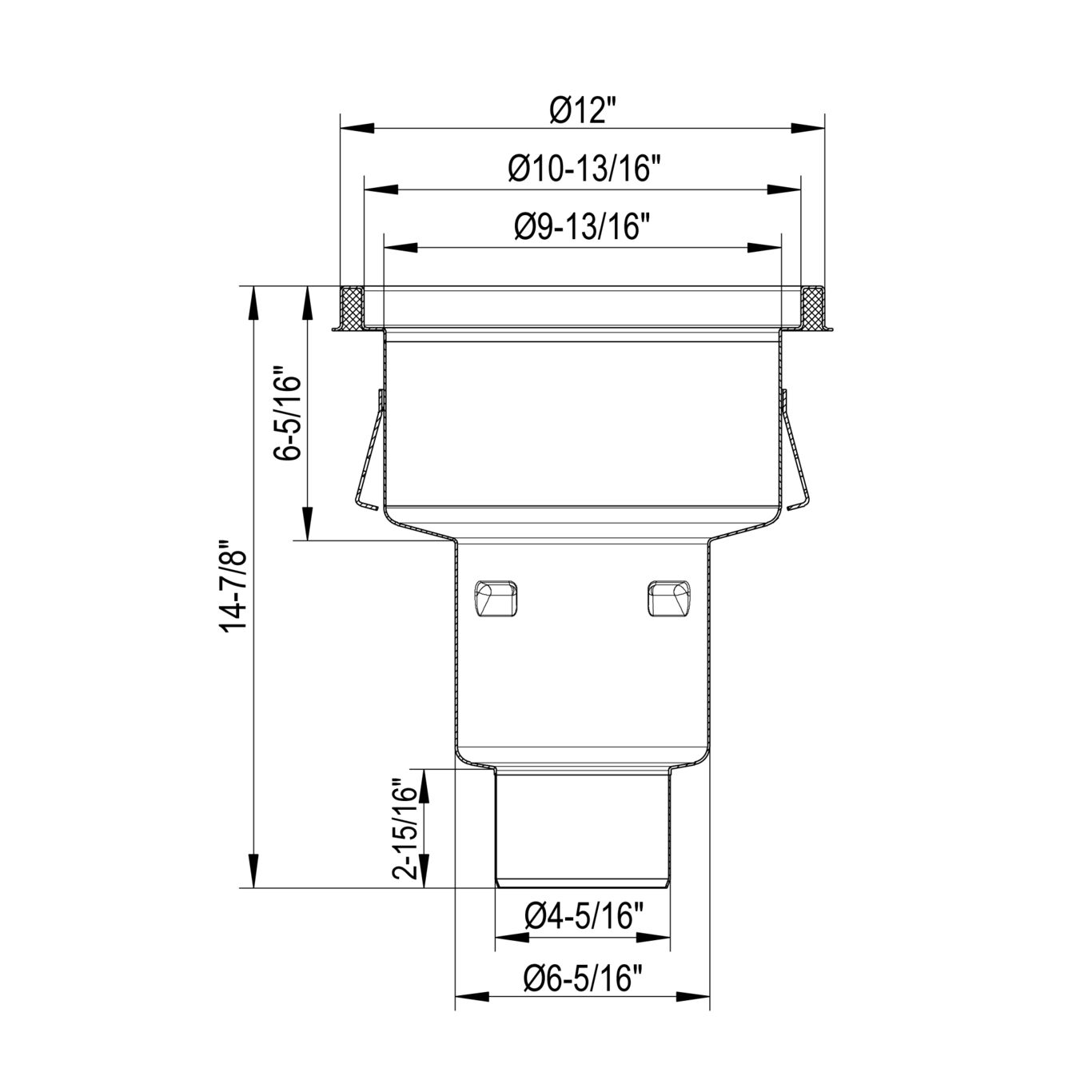

Size (mm) Ø305
Size of Frame (Inch) Ø12
Weight (kg) 4.35
Weight (lbs) 9.59
