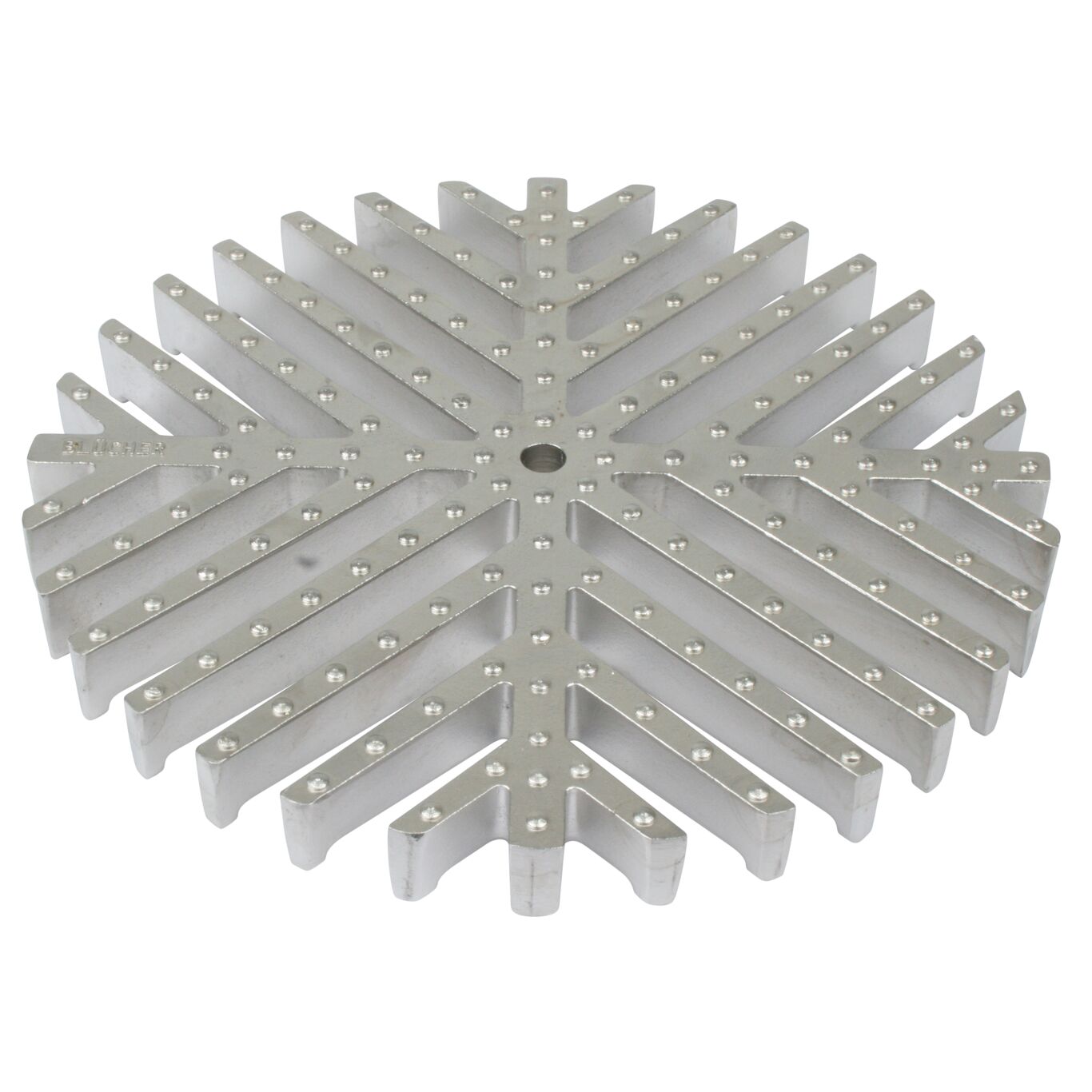

Part Of the Series: Grating-Drain-305-Vinyl-332

Type no.: 790.273.000.60

EAN no.: 5705499128352

VVS no.: 153519110

RSK no.: 7120428

NRF no.: 3395173

LVI no.: 3304063

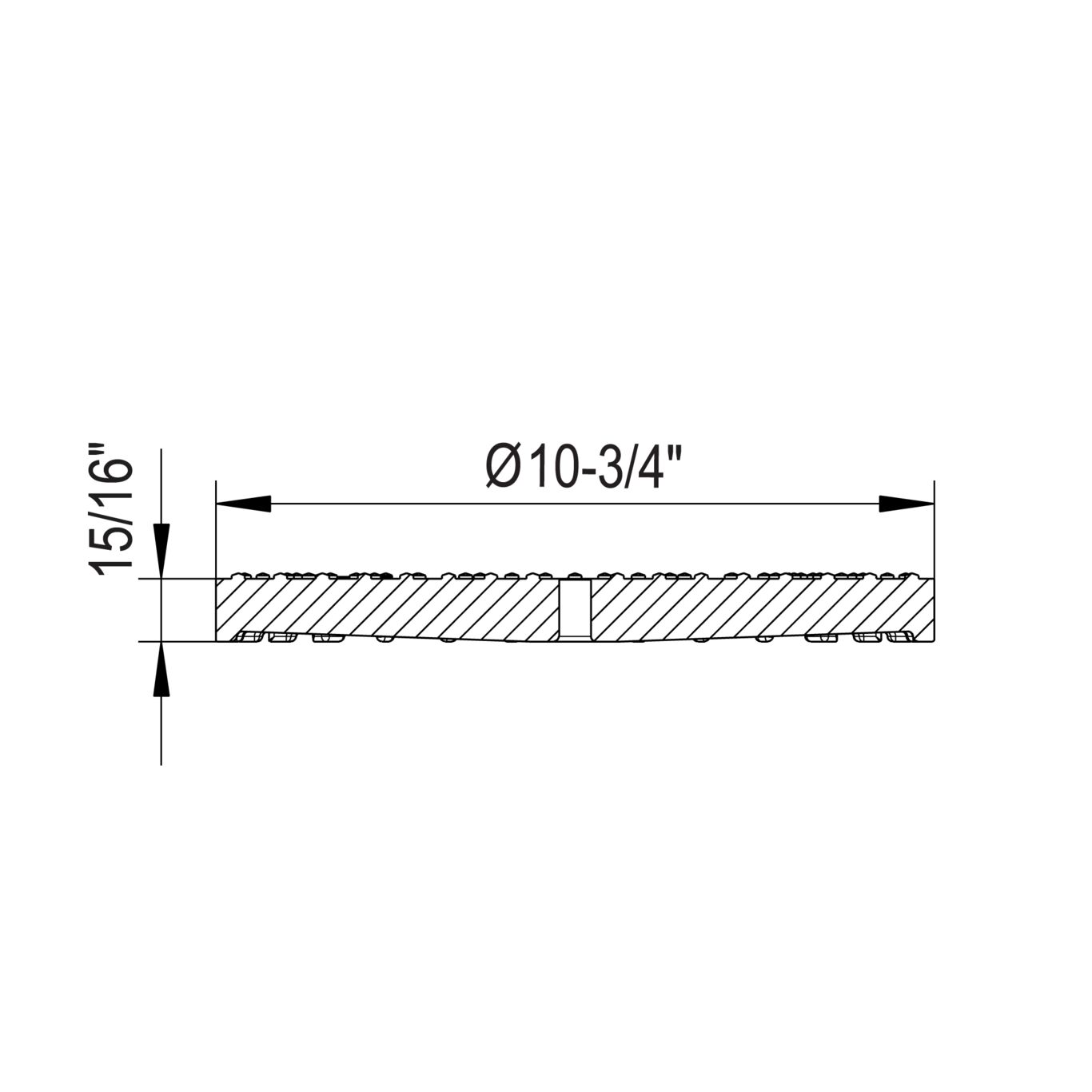

Size: Ø295

Download CAD Collections

2d DWG files

3d STP files

Download MasterSpec Documents


Product Specification
Field of Application Industrial
Load Class EN1253 R50
Load class EN1253(kg) R50 (5000)
Load class EN1253(lbs) R50 (11023)
Material AISI 304C
Material (EN) EN 1.4308
Minimum Height (mm) 24
Non slip R10
Number of Screws 0
Shape Round
Size (mm) Ø295
Size of Frame (Inch) Ø11-5/8
Weight (kg) 4.43
Weight (lbs) 9.77
