HYGIENICPRO INDUSTRIAL DRAIN, LOW - (755.513.110)
×
![]()
Part Of the Series: Drain-No membrane-305
Type no.: 755.513.110
EAN no.: 5705499137804
VVS no.: 221803001
LVI no.: 3305602
Size: Ø305

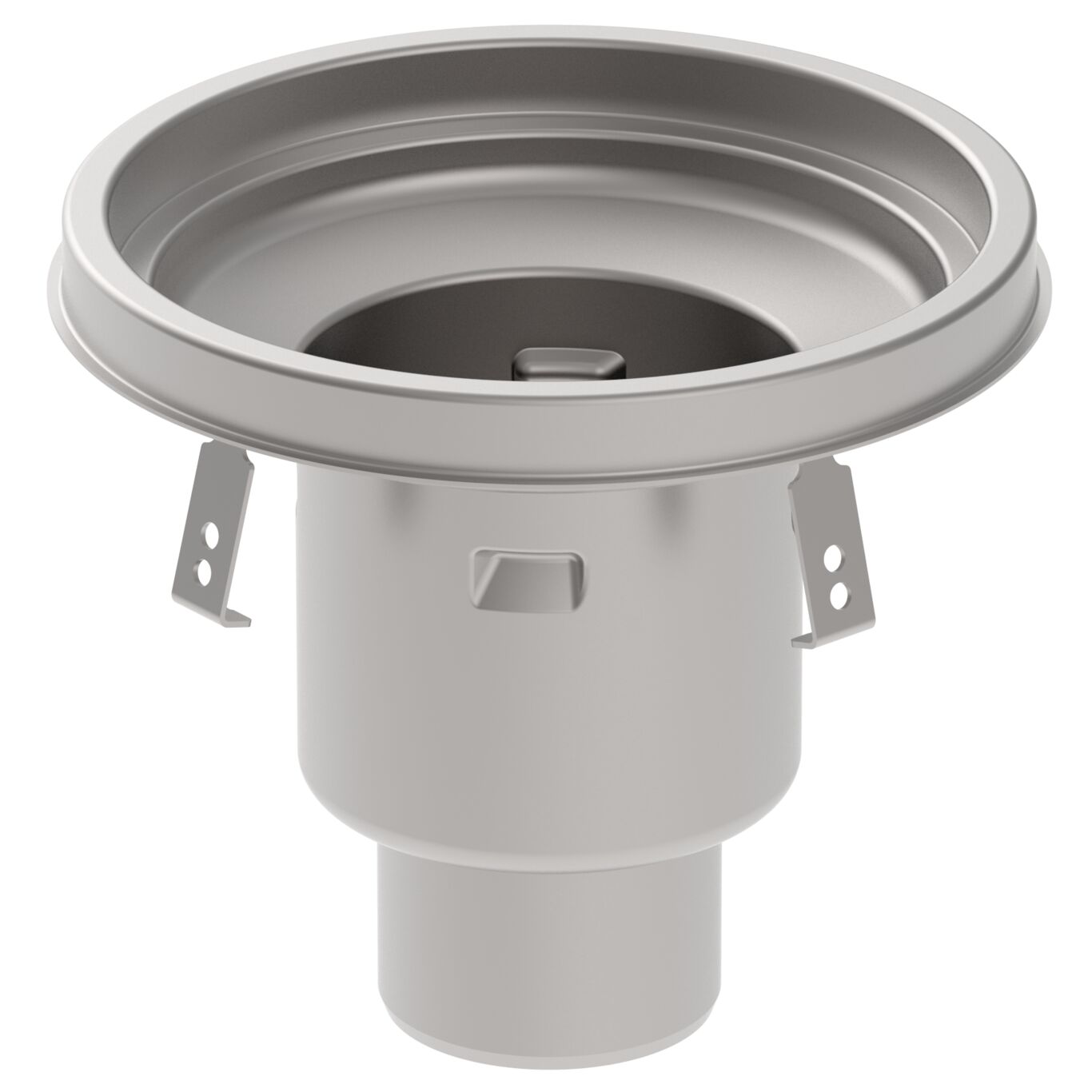

HYGIENICPRO INDUSTRIAL DRAIN, LOW
-Floor: concrete, tiled and resin
-No membrane, frame: Ø12 inch
-Outlet: Ø4 inch, vertical
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-574L
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 275 |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 110 |
| Outlet Diameter (Inch) | 4 |
| Outlet Direction | Vertical |
| Shape | Round |
| Size (mm) | Ø305 |
| Size of Frame (Inch) | Ø12 |
| Weight (kg) | 3.4 |
| Weight (lbs) | 7.5 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
