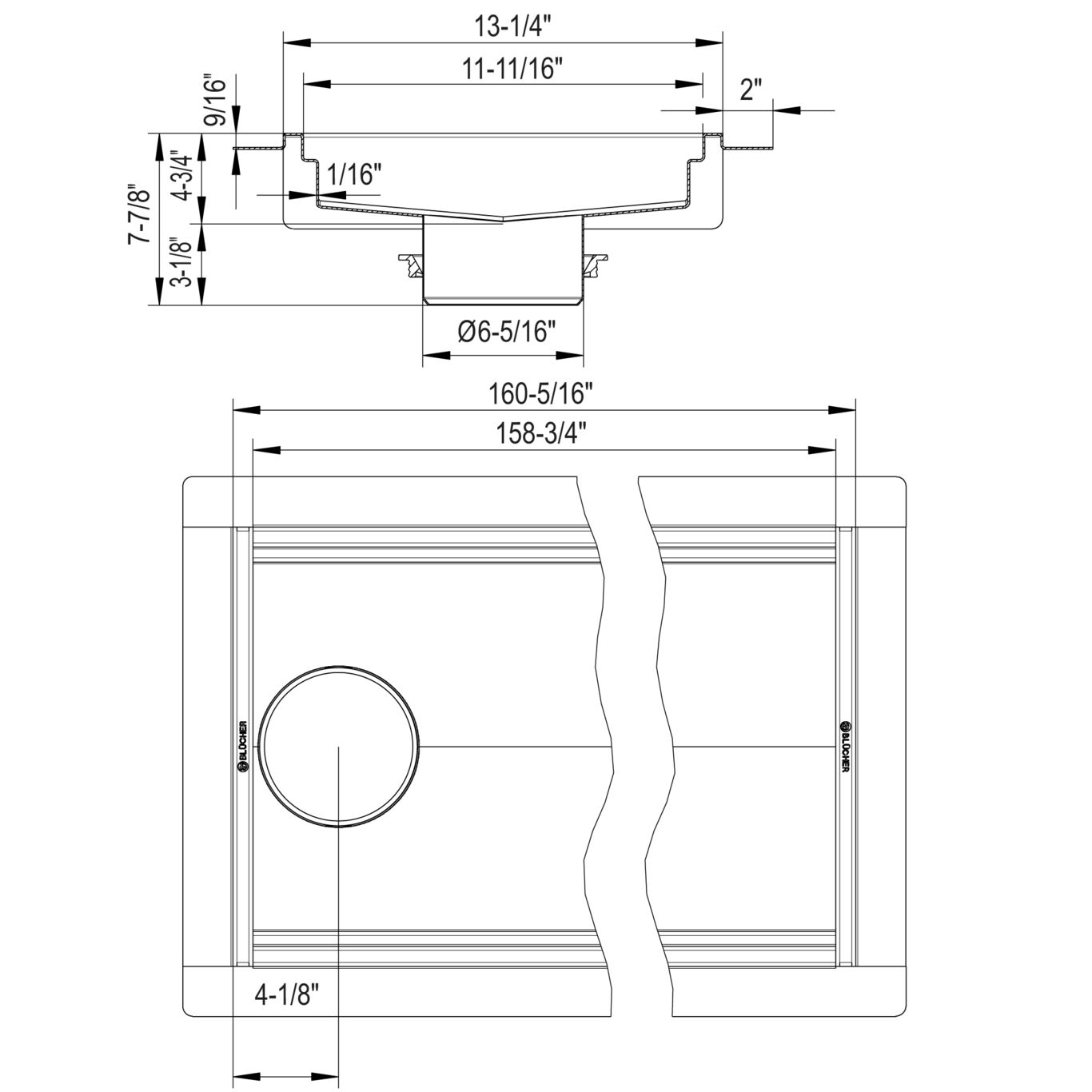

CHANNEL 300x4000 END OUTLET - (674EK040-00BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674EK040-00BA

EAN no.: 5705499131307

Size: 300x4000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 200
Outlet Box No
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (mm) 300x4000
Size of Frame (Inch) 11-3/4 x 157-1/2
Weight (kg) 43.71
Weight (lbs) 96.36
