TILED/EPOXY GRATING CHANNEL - (697.020.300.49)
×
![]()
Part Of the Series: Grating-Channel-300
Type no.: 697.020.300.49
EAN no.: 5705499128598
NRF no.: 3397161
Size: 300x500

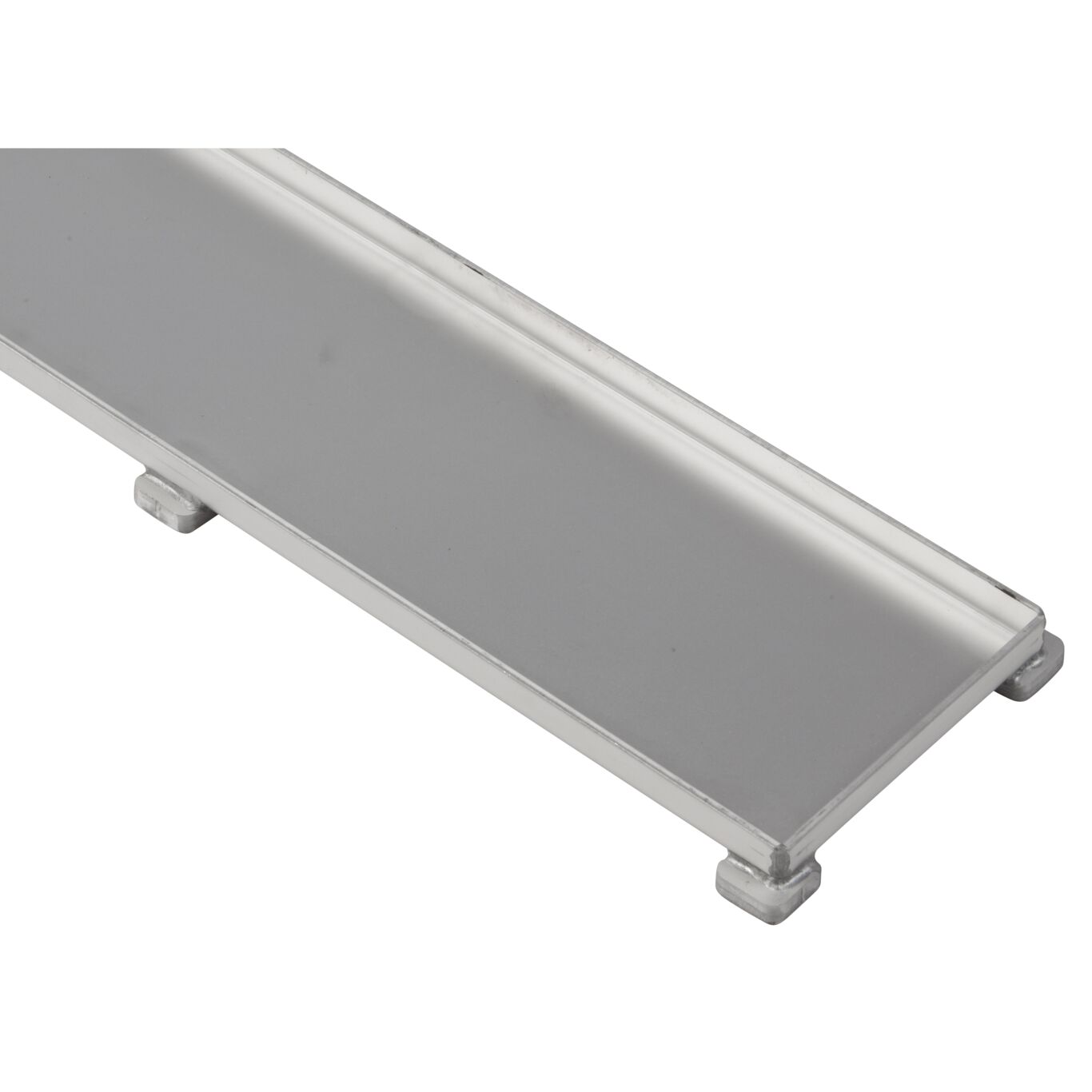

TILED/EPOXY GRATING CHANNEL

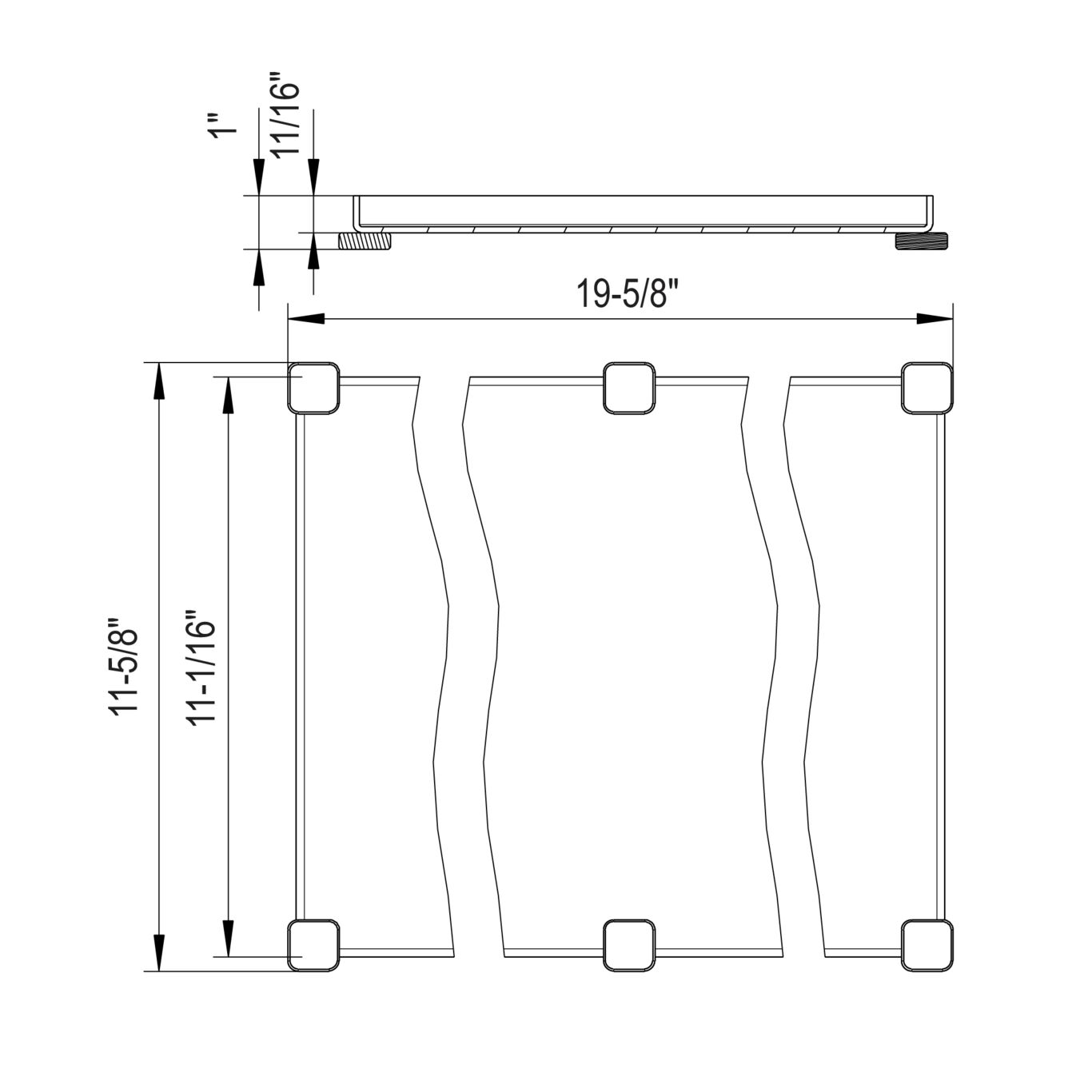

-Grating: 11-5/8 x 19-5/8 inch
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Load Class EN1253 | K3 |
| Load class EN1253(kg) | K3 (600) |
| Load class EN1253(lbs) | K3 (1323) |
| Load Class EN1433 | A15 |
| Load class EN1433(kg) | A15 (2.250) |
| Load class EN1433(lbs) | A15 (4960) |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 26 |
| Number of Screws | 0 |
| Shape | Rectangular |
| Size (mm) | 300x500 |
| Size of Frame (Inch) | 11-3/4 x 19-5/8 |
| Weight (kg) | 3.92 |
| Weight (lbs) | 8.64 |
-
Approval Information
For approval information, please refer to the below approval certificates.
