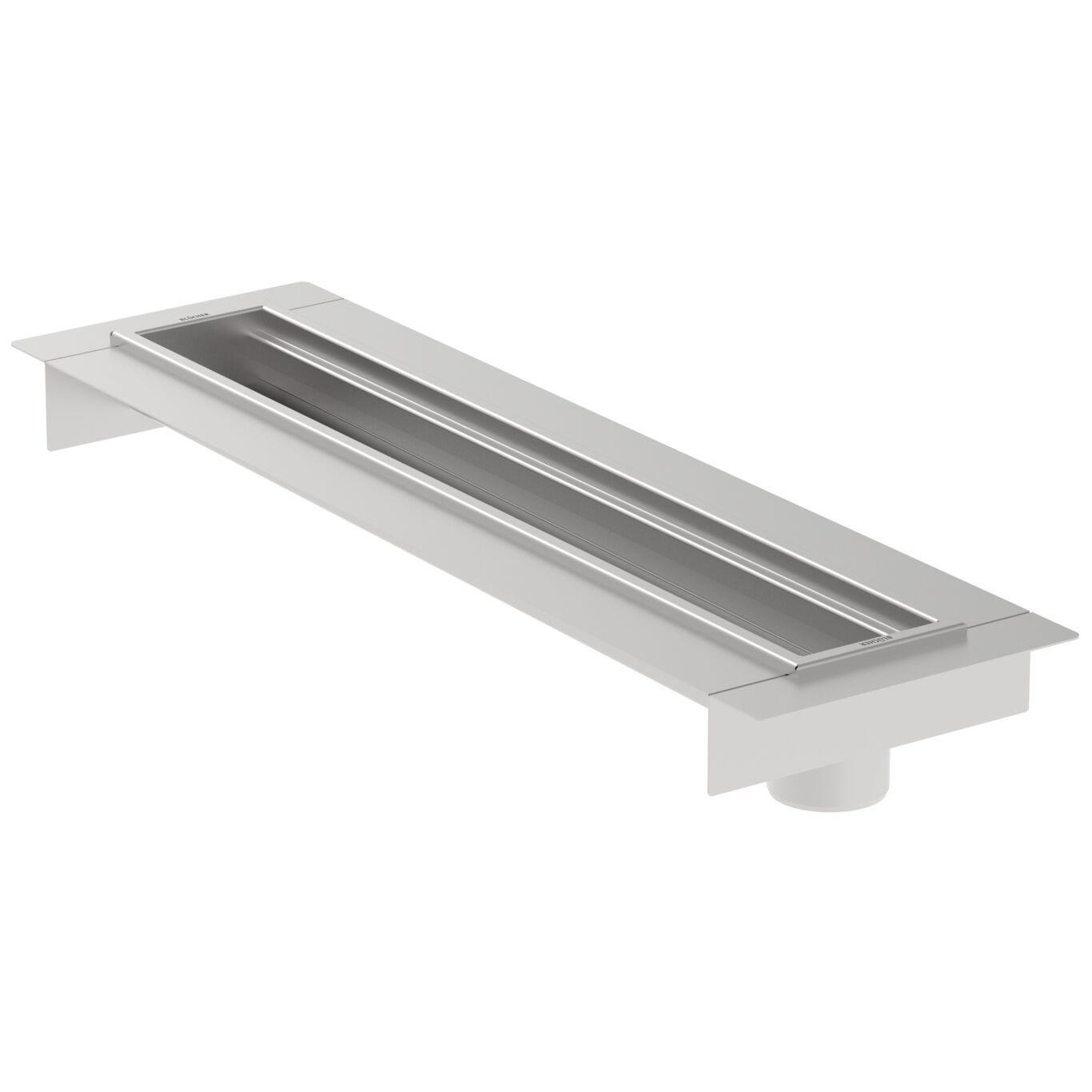

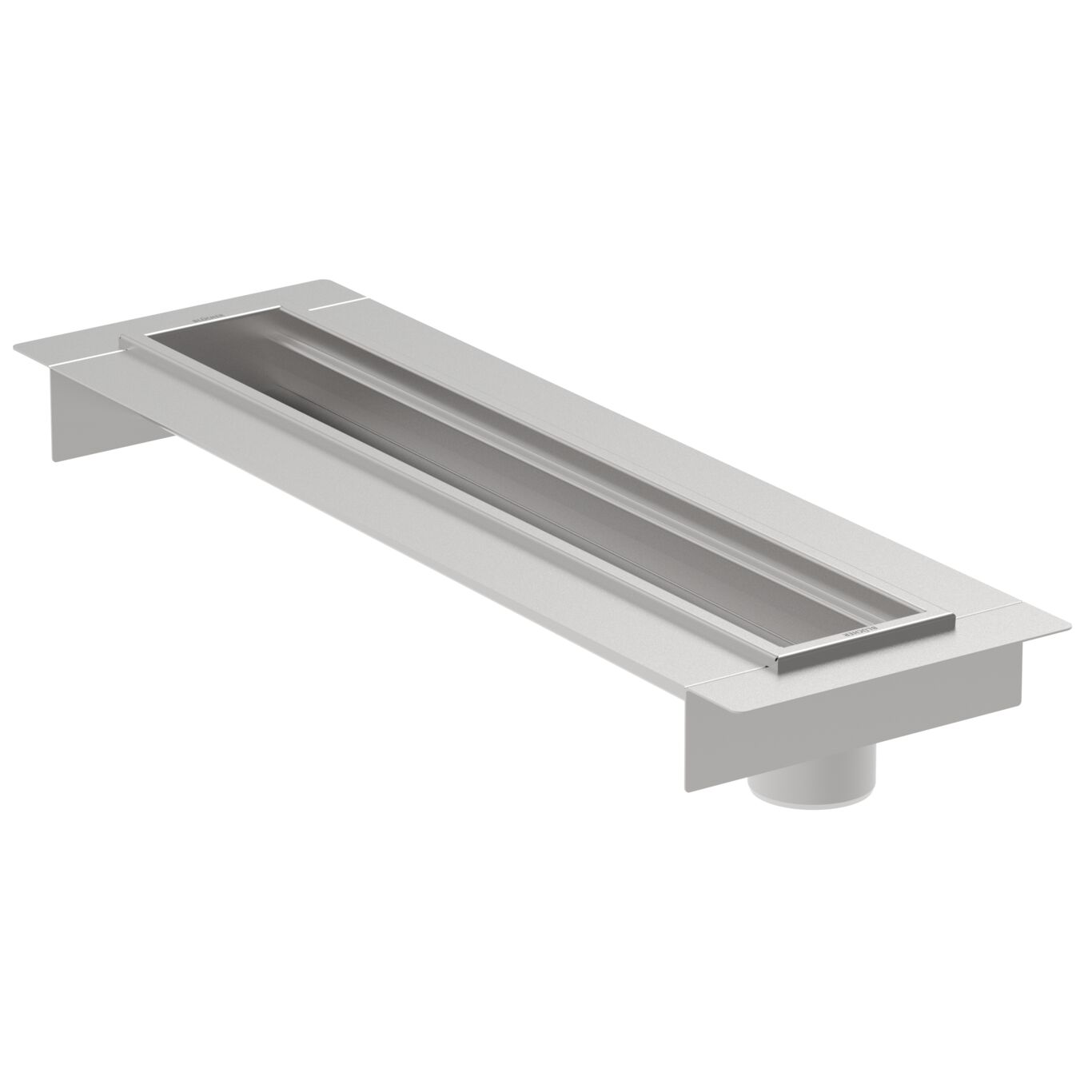

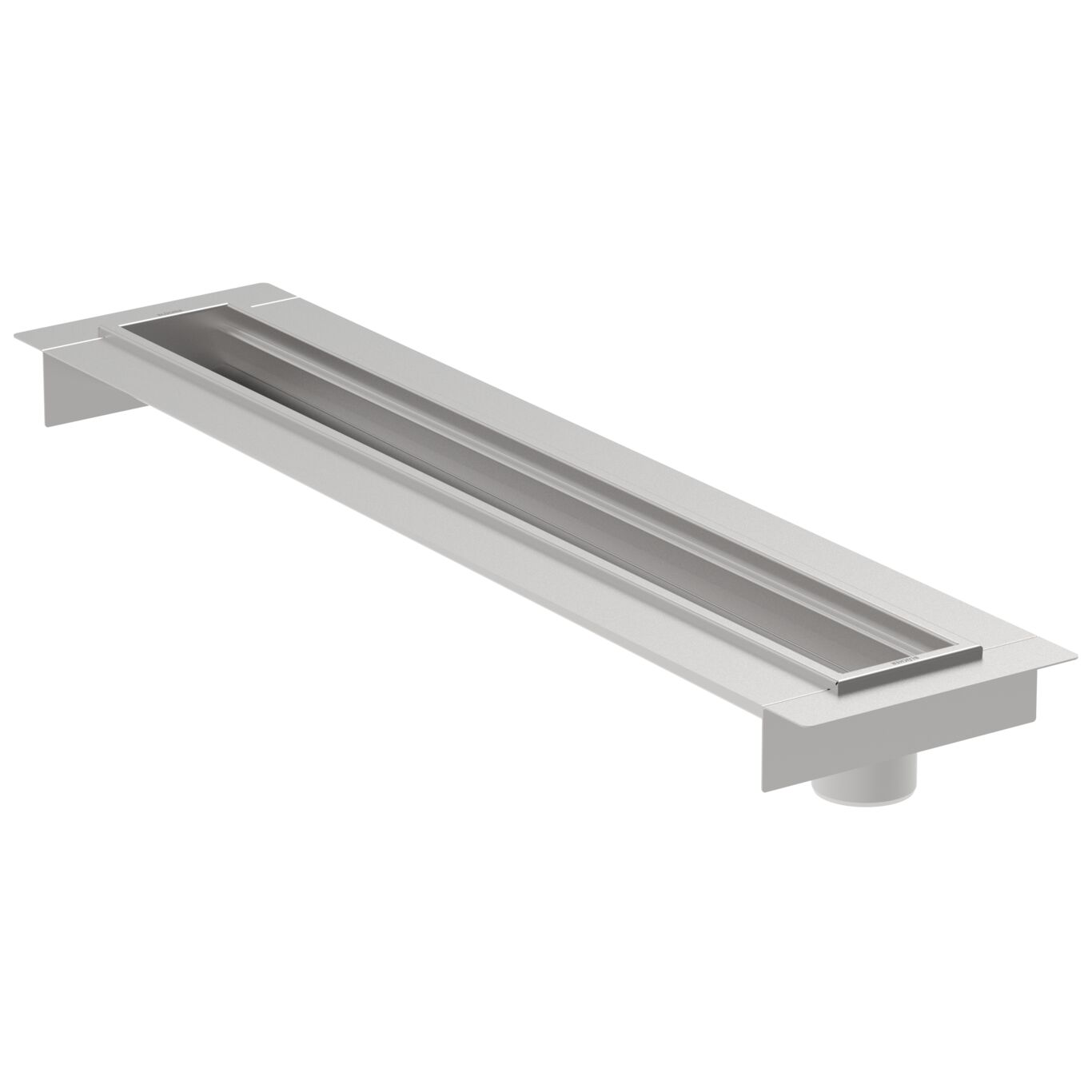

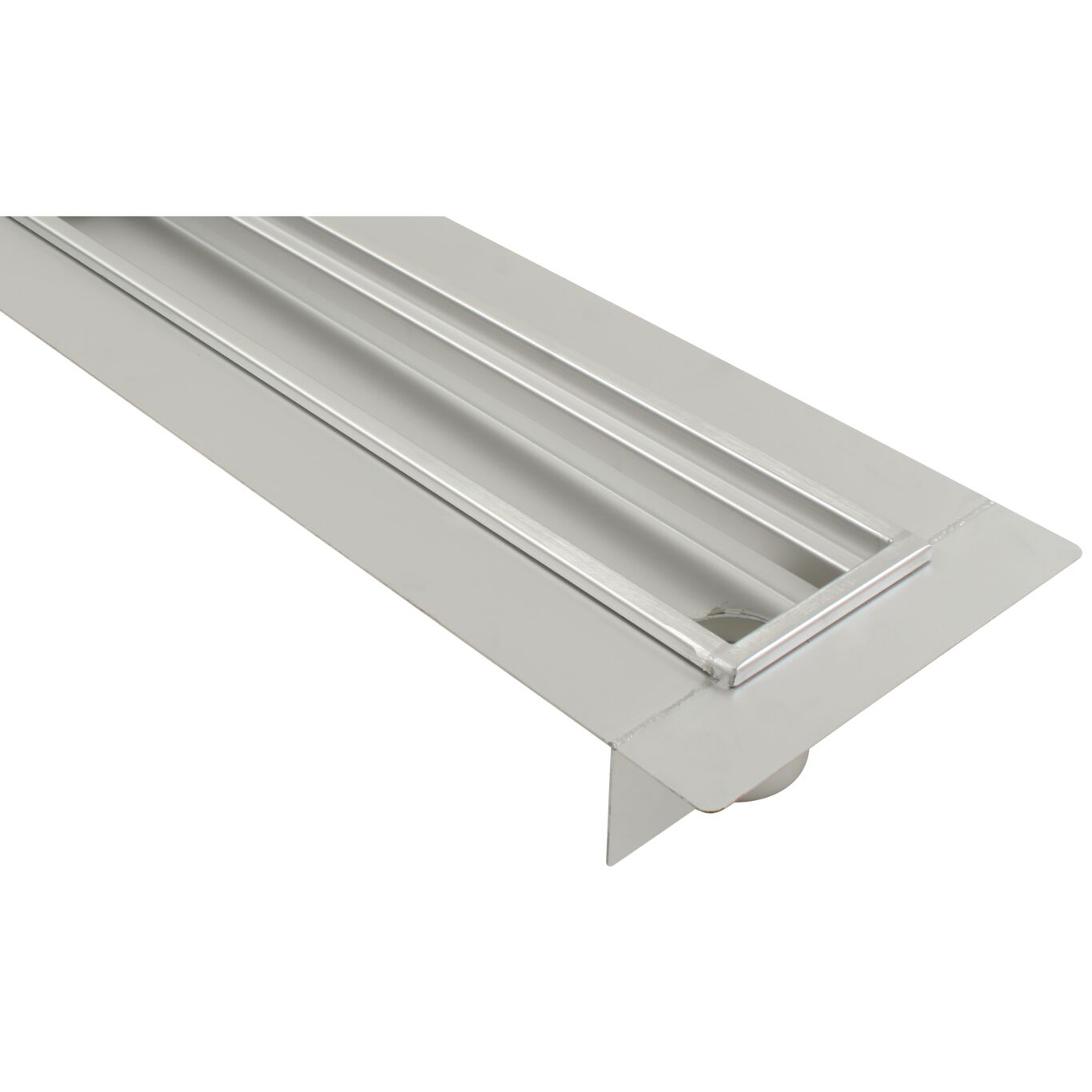

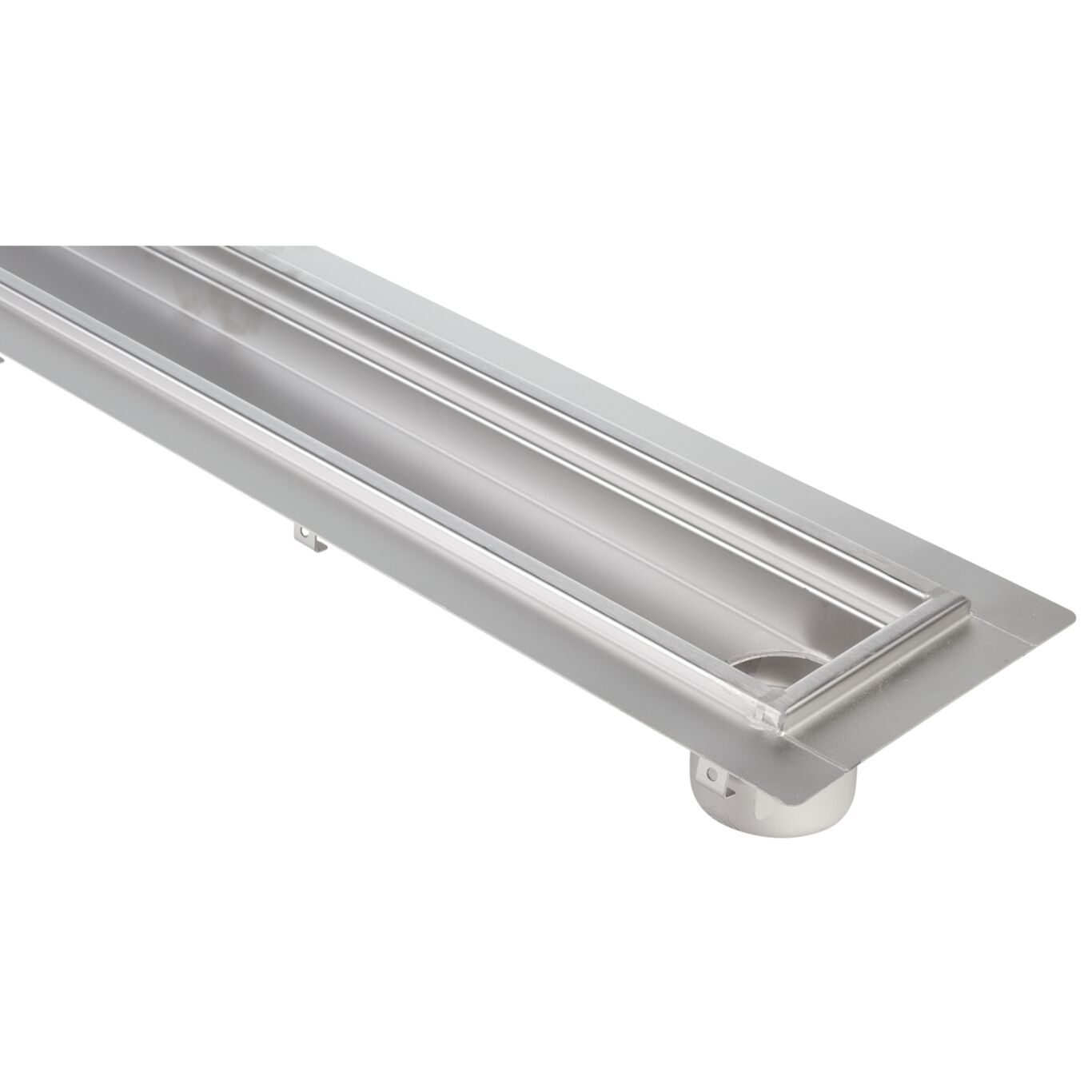

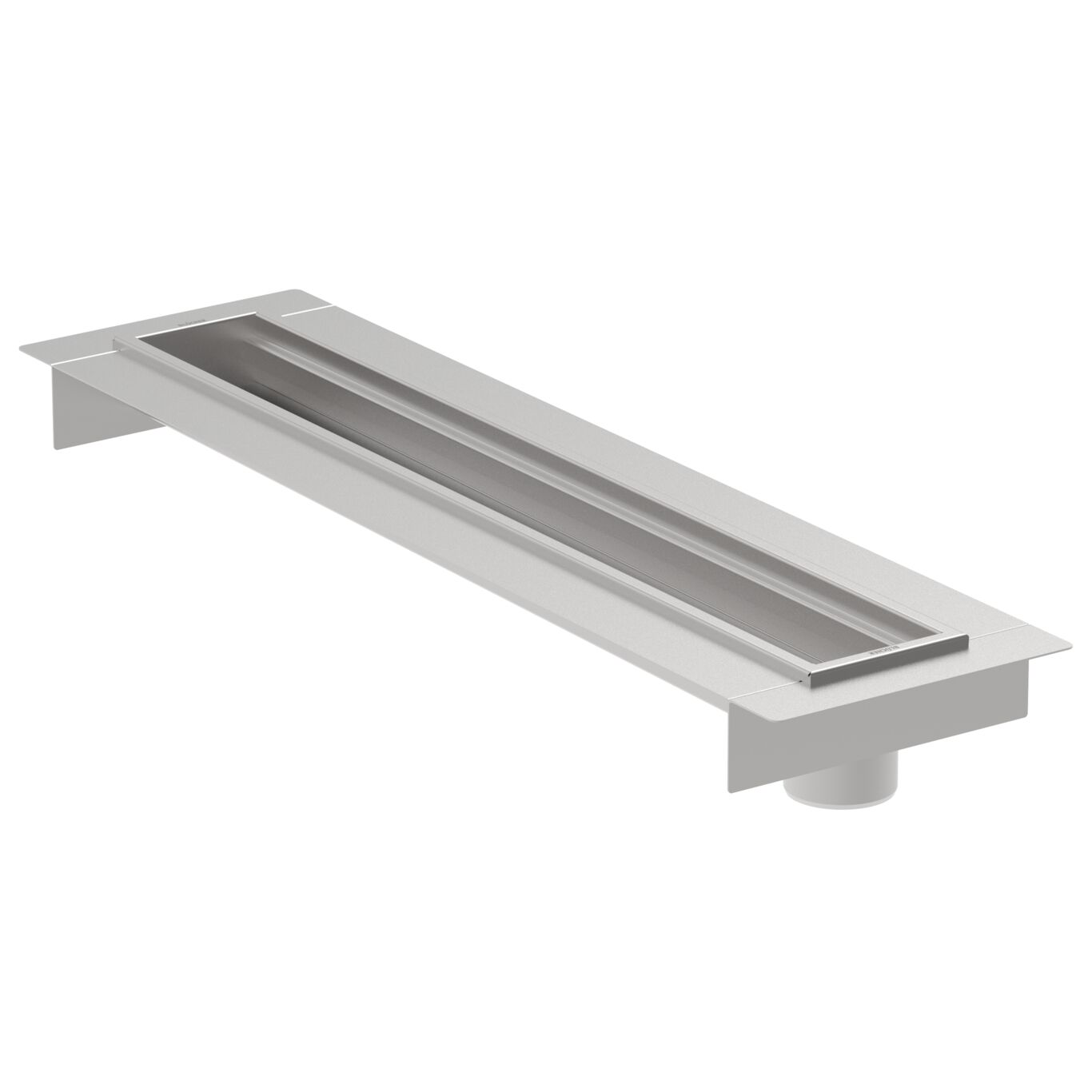

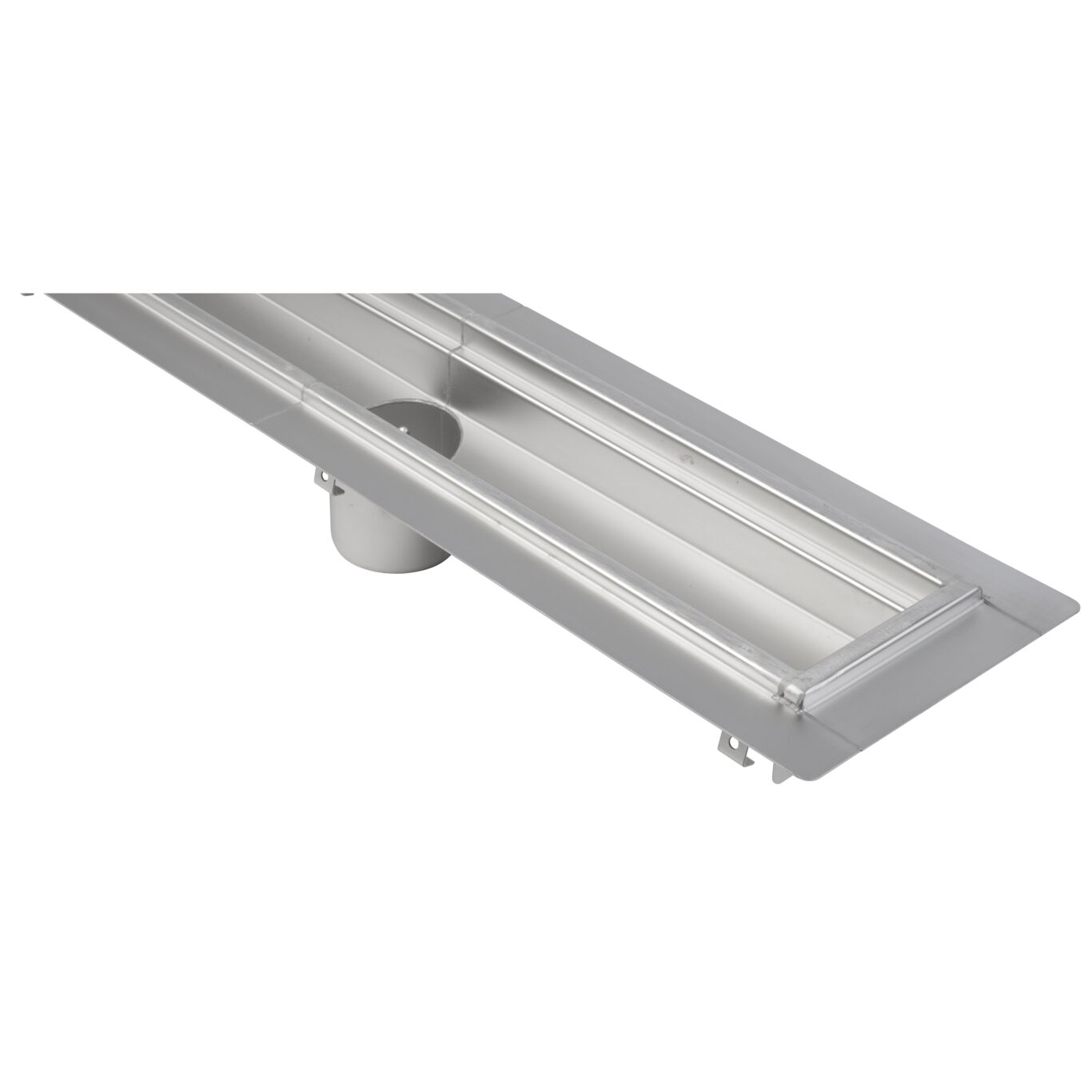

Channel-Liquid membrane

Channel with liquid membrane. Frame size bigger than 150x900mm


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

  • The channel is made from 2 mm acid-pickled stainless steel.
  • Designed in accordance with standard EN1253.
  • The longitudinal fall is 1% and the cross fall corresponds to 160°-170°.

Select options below for a specific Channel-Liquid membrane
