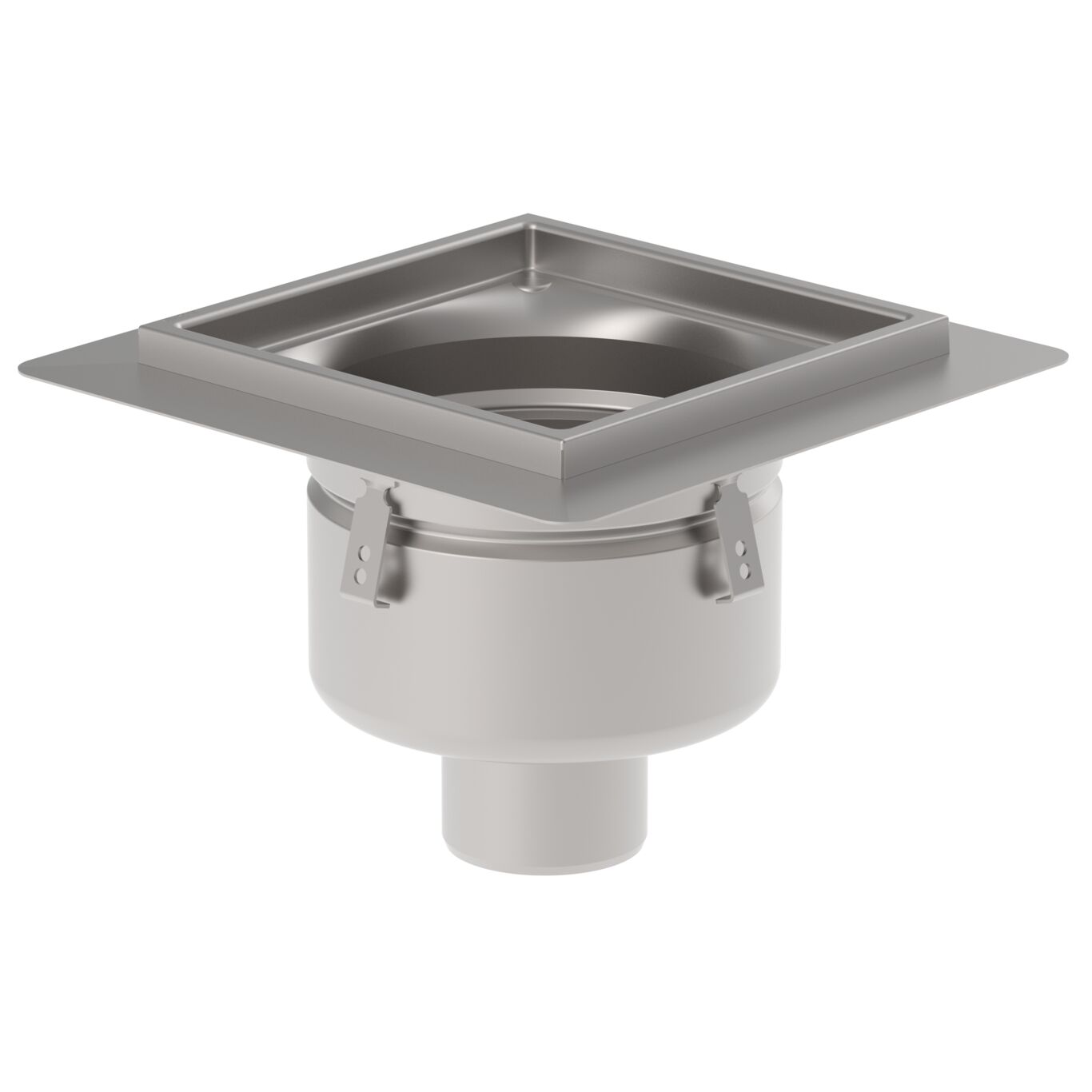

INDUSTRIAL DRAIN, LOW - (767.403.110)

Part Of the Series: Drain-Liquid membrane-300

Type no.: 767.403.110

EAN no.: 5705499110784

VVS no.: 153045316

NRF no.: 3396381

LVI no.: 3303716

Size: 300x300


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Adjustable No
Field of Application Industrial
Floor Concrete / Tiled
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Number of Inlets 0
Number of Screw Holes 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Shape Square
Size (mm) 300x300
Size of Frame (Inch) 11-3/4 x 11-3/4
Weight (kg) 9.08
Weight (lbs) 20.02
