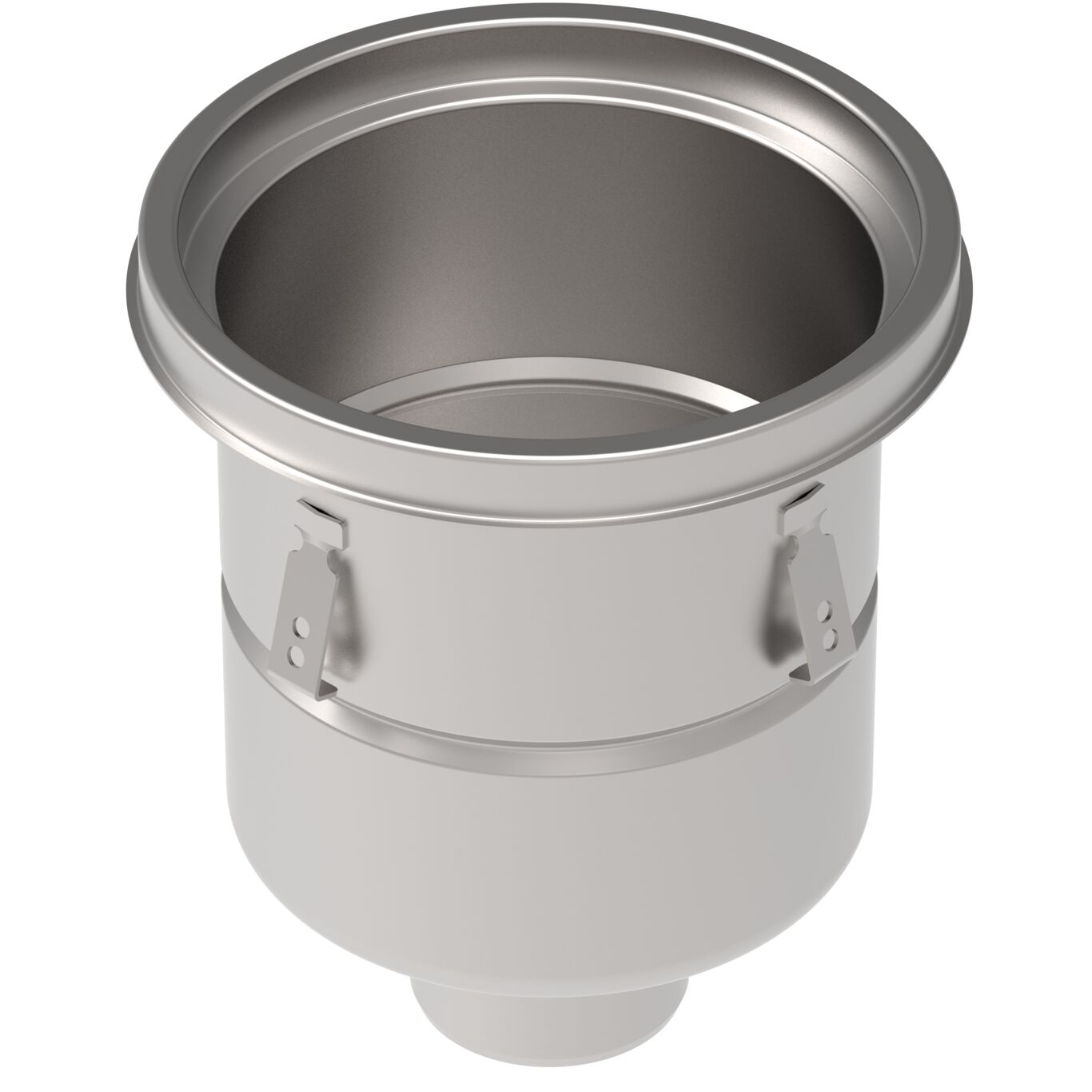

INDUSTRIAL DRAIN - (760.503.110)

Part Of the Series: Drain-No membrane-305

Type no.: 760.503.110

EAN no.: 5705499109542

VVS no.: 153050003

RSK no.: 7124000

NRF no.: 3396086

LVI no.: 3303526

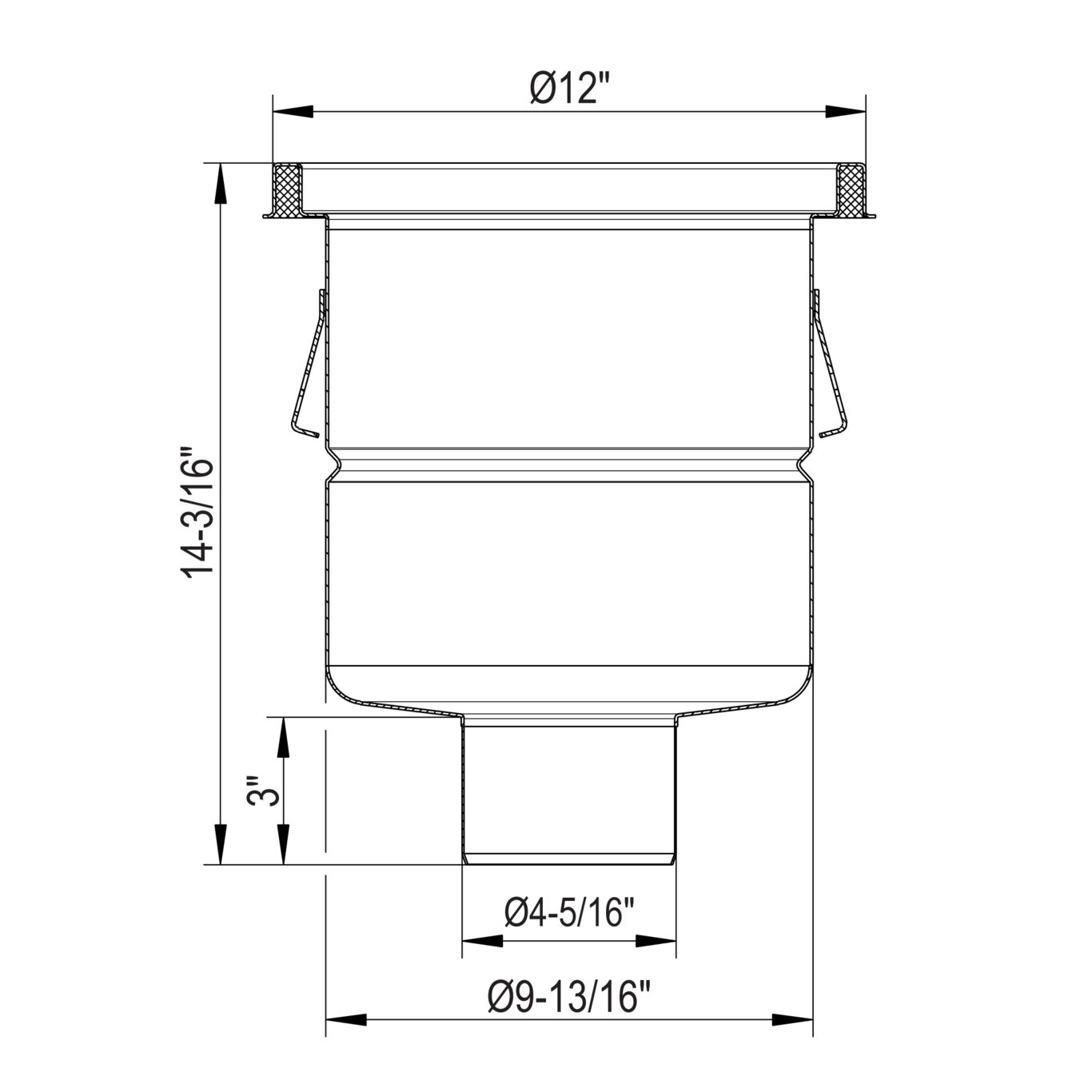

Size: Ø305


Download CAD Collections

2d DWG files

3d STP files

Product Specification
Adjustable No
Field of Application Industrial
Floor Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 360
Number of Inlets 0
Number of Screw Holes 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Shape Round
Size (mm) Ø305
Size of Frame (Inch) Ø12
Weight (kg) 5.66
Weight (lbs) 12.48
