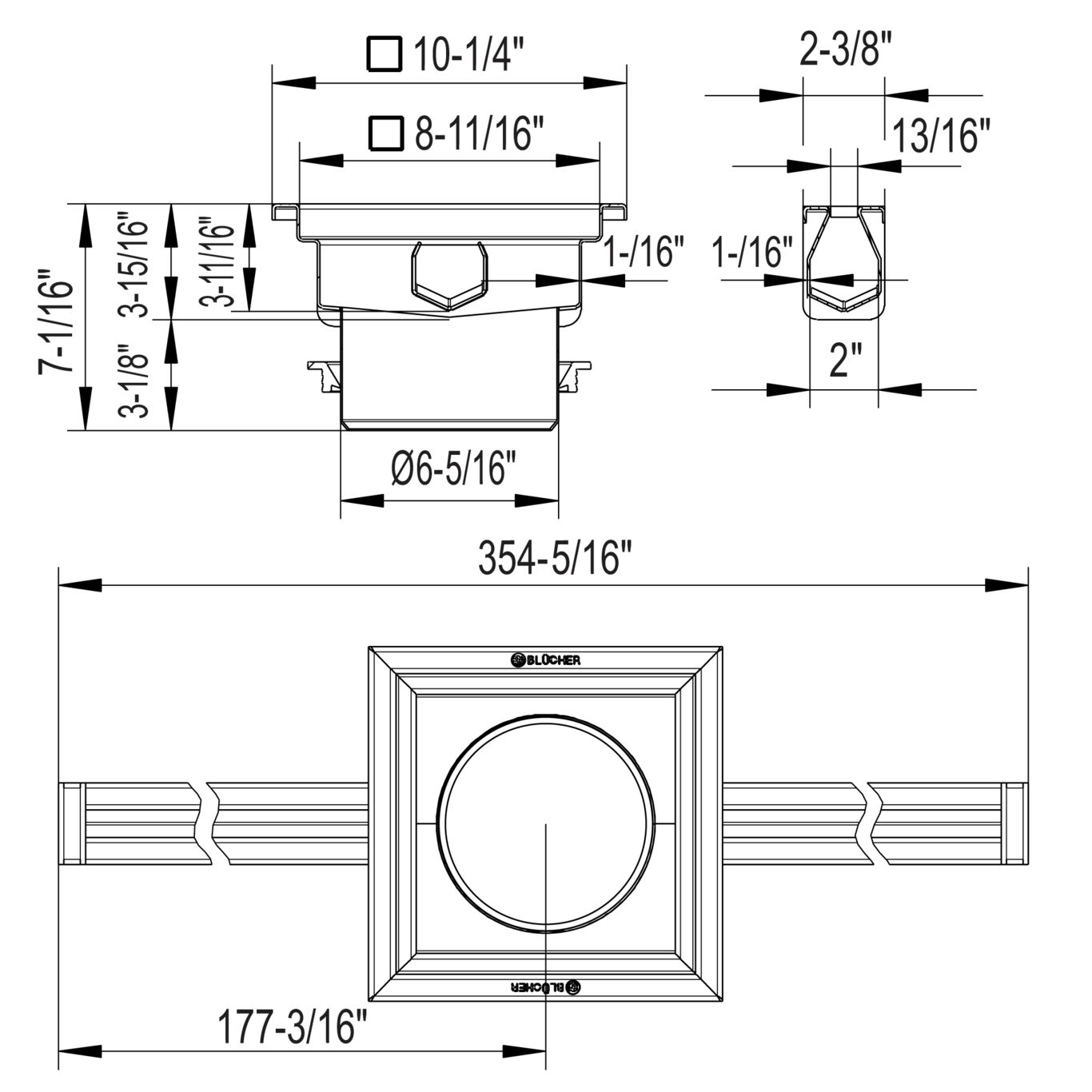

SLOT CHANNEL 20x9000 CENTER OUTLET - (673AK090-45BA)

Part Of the Series: Slot channel-No membrane

Type no.: 673AK090-45BA

EAN no.: 5705499125917

Size: 20x9000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 180
Outlet Box Yes
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 20x9000
Size of Frame (Inch) 3/4 x 354-3/8
Weight (kg) 40.81
Weight (lbs) 89.97
