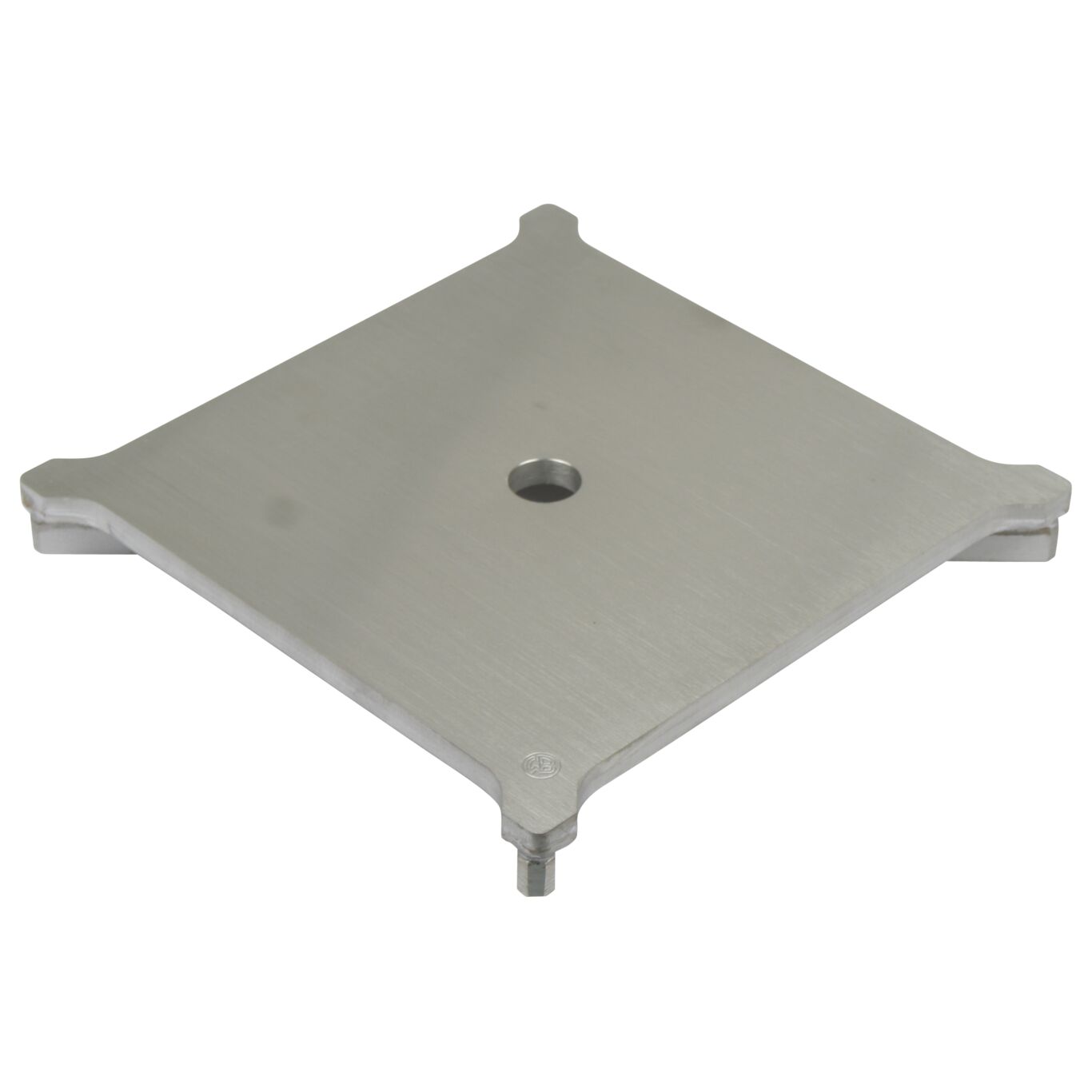

SLOT GRATING SQUARE - (790.218.000.10)

Part Of the Series: Grating-Drain-250

Type no.: 790.218.000.10

EAN no.: 5705499128710

Size: 250x250


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 R50
Load class EN1253(kg) R50 (5000)
Load class EN1253(lbs) R50 (11023)
Material AISI 304
Material (EN) EN 1.4301

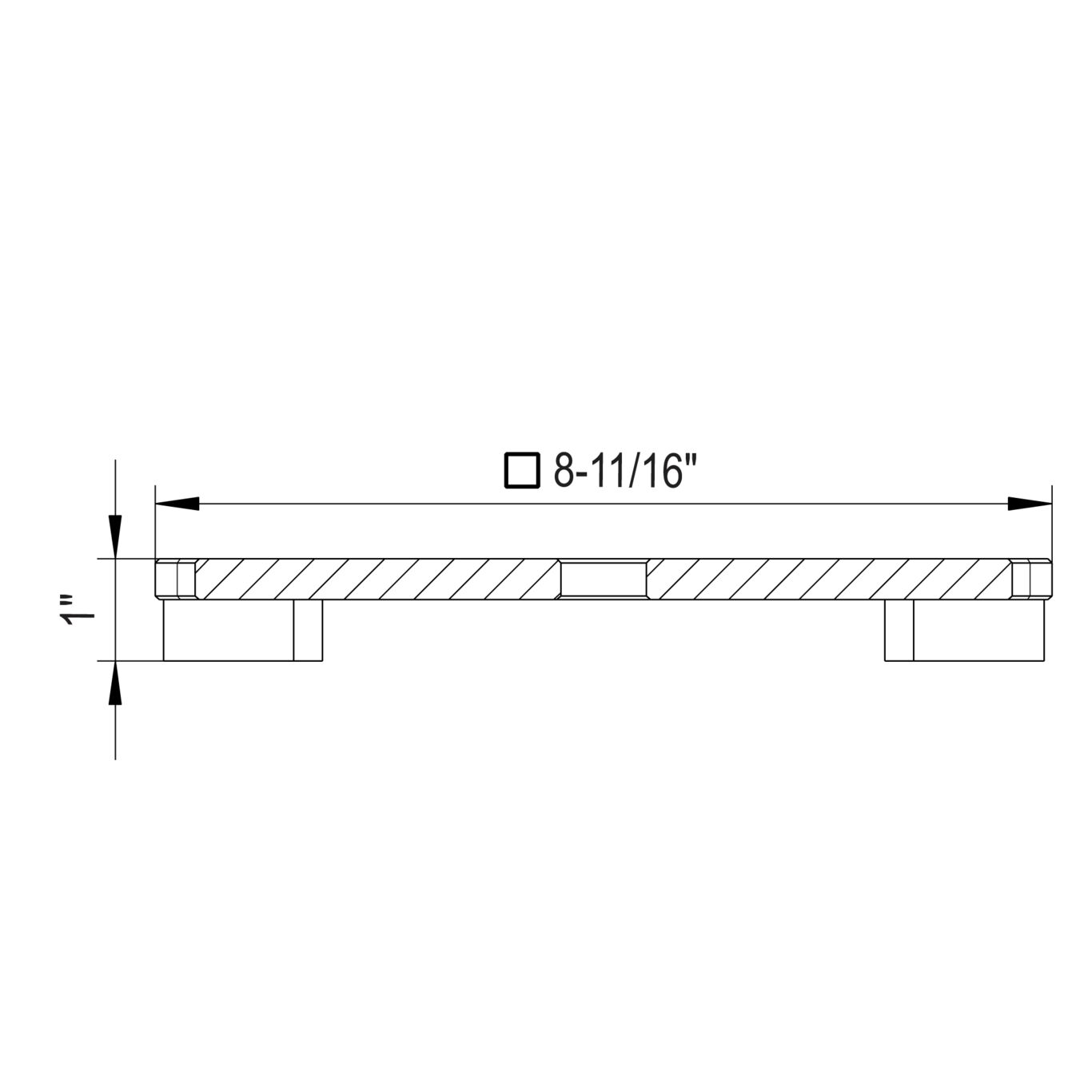

Minimum Height (mm) 25
Non slip R10
Number of Screws 0
Shape Square
Size (mm) 250x250
Size of Frame (Inch) 9-7/8 x 9-7/8
Weight (kg) 3.44
Weight (lbs) 7.58
