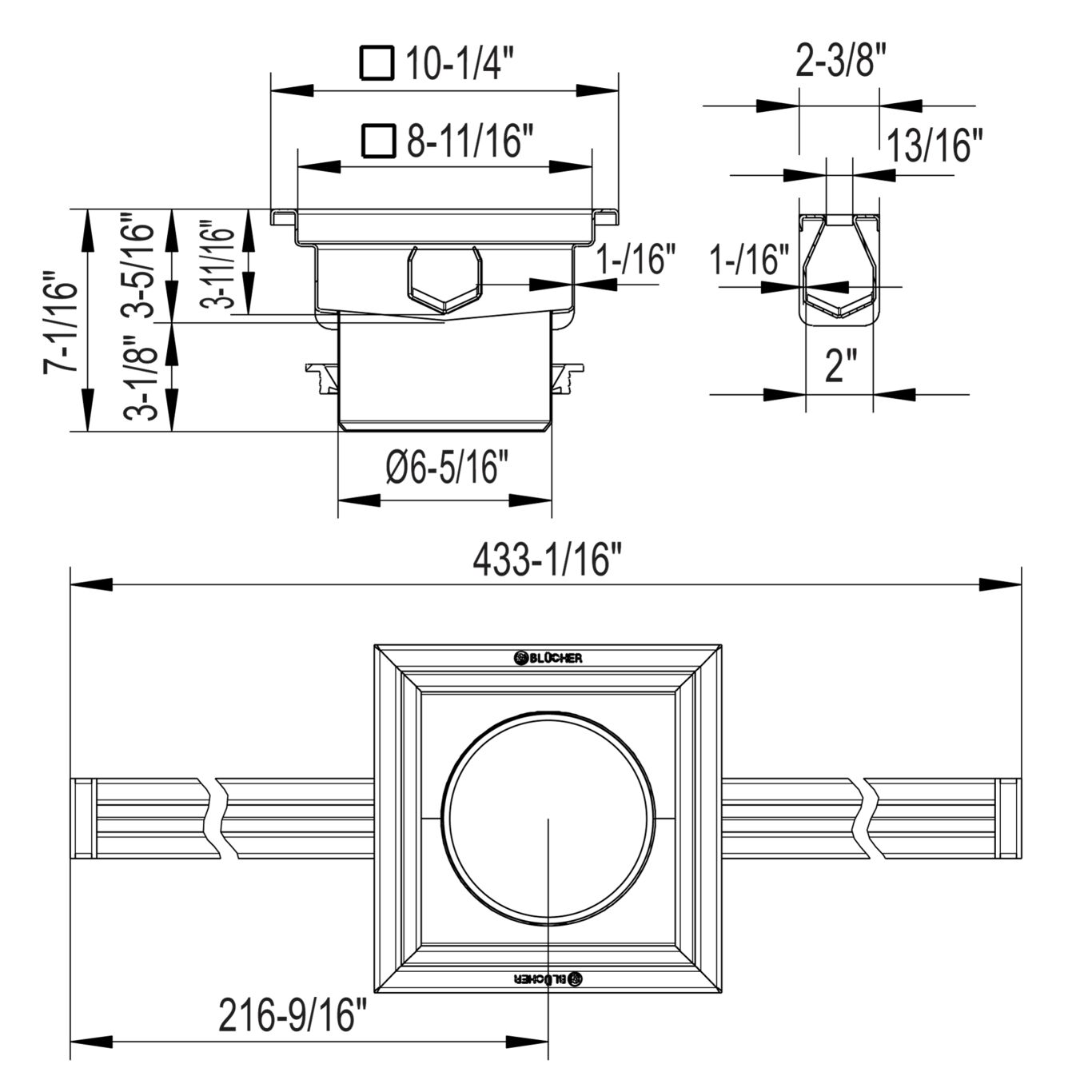

SLOT CHANNEL 20x11000 CENTER OUTLET - (673AK110-55BA)

Part Of the Series: Slot channel-No membrane

Type no.: 673AK110-55BA

EAN no.: 5705499125931

Size: 20x11000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 180
Outlet Box Yes
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 20x11000
Size of Frame (Inch) 3/4 x 433-1/8
Weight (kg) 46
Weight (lbs) 101.41
