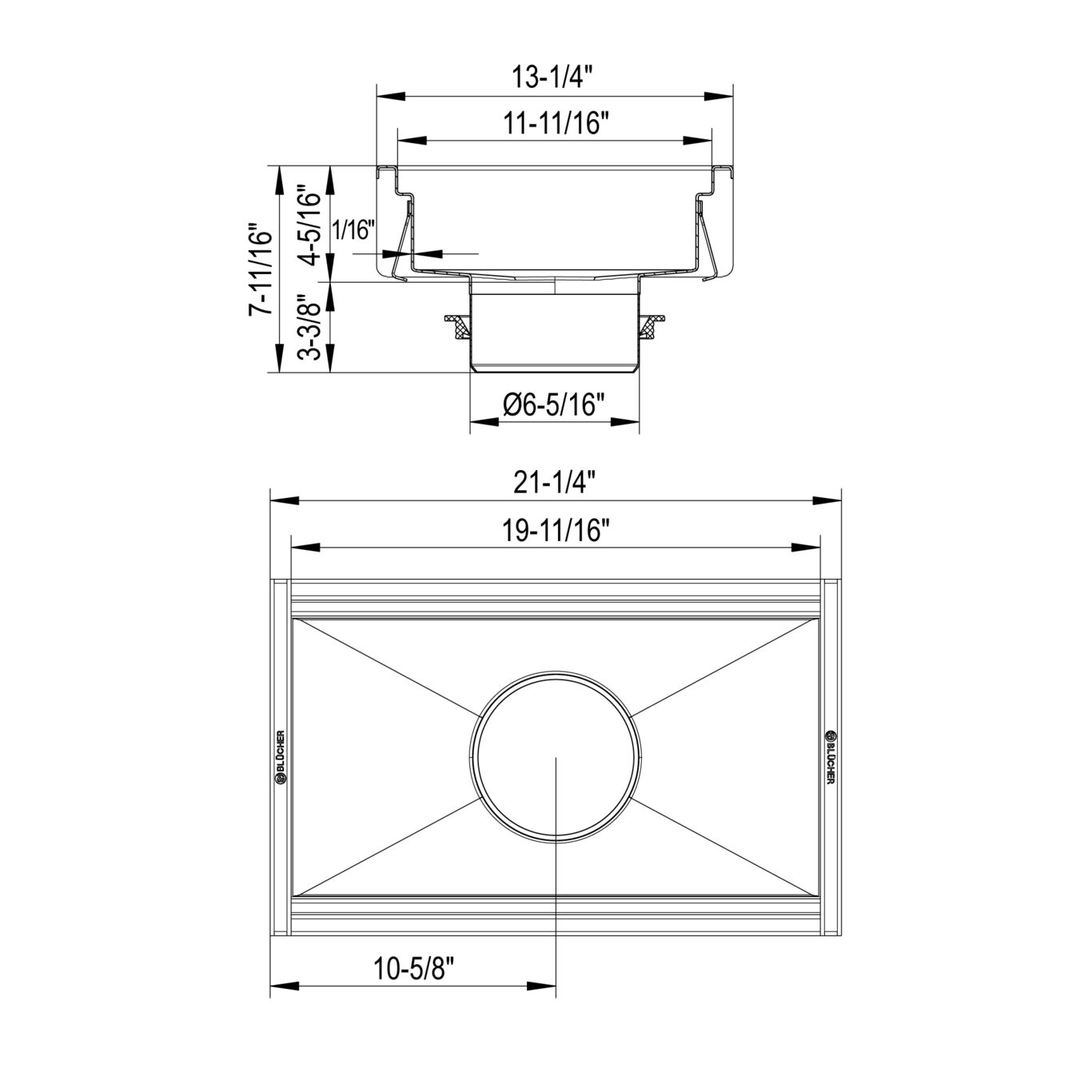

KITCHEN CHANNEL 300x500 - (660EK005-11)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660EK005-11
EAN no.: 5705499134735
RSK no.: 7122958
NRF no.: 3397055
Size: 300x500
KITCHEN CHANNEL 12 x 20
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 195 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 300x500 |
| Size of Frame (Inch) | 12 x 20 |
| Weight (kg) | 6.11 |
| Weight (lbs) | 13.47 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
NO - PS3079-21
BLÜCHER® Channels EPD
HACCP Food Safety Programme - Australasia
AUS - WMKT00204 - 24 RINA -MAC320524XG EuroPipe Declaration of Conformity - BSEN1253-002 TÜRK LOYDU - 25041616077231247 PL - Hygienic Certificate - All Products KR - Type Approval CPH42135-PE001
