KITCHEN CHANNEL 300x500 - (668EK005-11)

Part Of the Series: Kitchen channel-Liquid membrane

Type no.: 668EK005-11

EAN no.: 5705499134902

RSK no.: 7122972

Size: 300x500

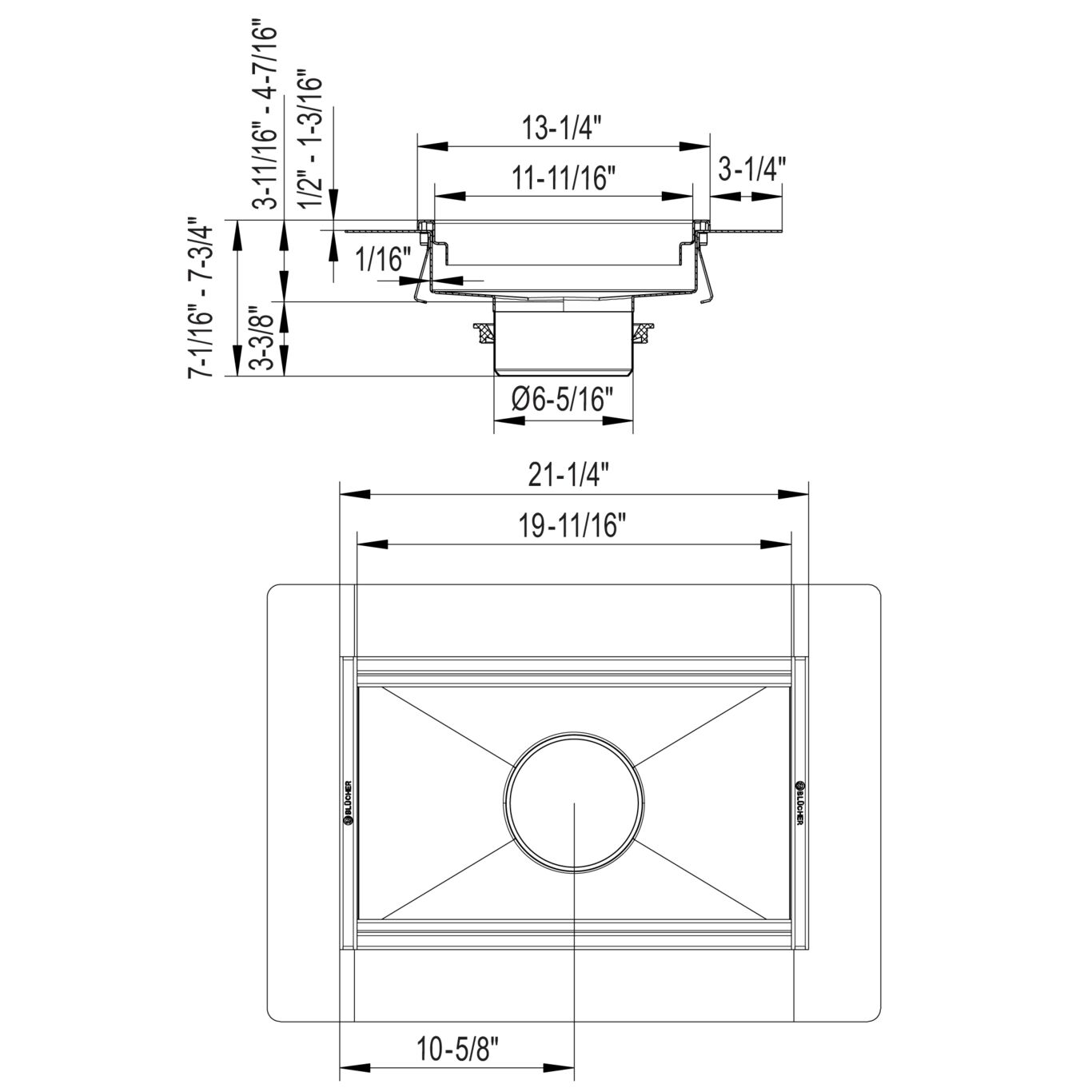

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Maximum Height (mm) 197
Membrane Type Liquid Membrane
Minimum Height (mm) 179
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Shape Rectangular
Size (mm) 300x500
Size of Frame (Inch) 12 x 20
Weight (kg) 10.03
Weight (lbs) 22.11
