CHANNEL 200x2000 CENTER OUTLET - (674DK020-10BA)

Part Of the Series: Channel-Liquid membrane

Type no.: 674DK020-10BA

EAN no.: 5705499131130

NRF no.: 3396471

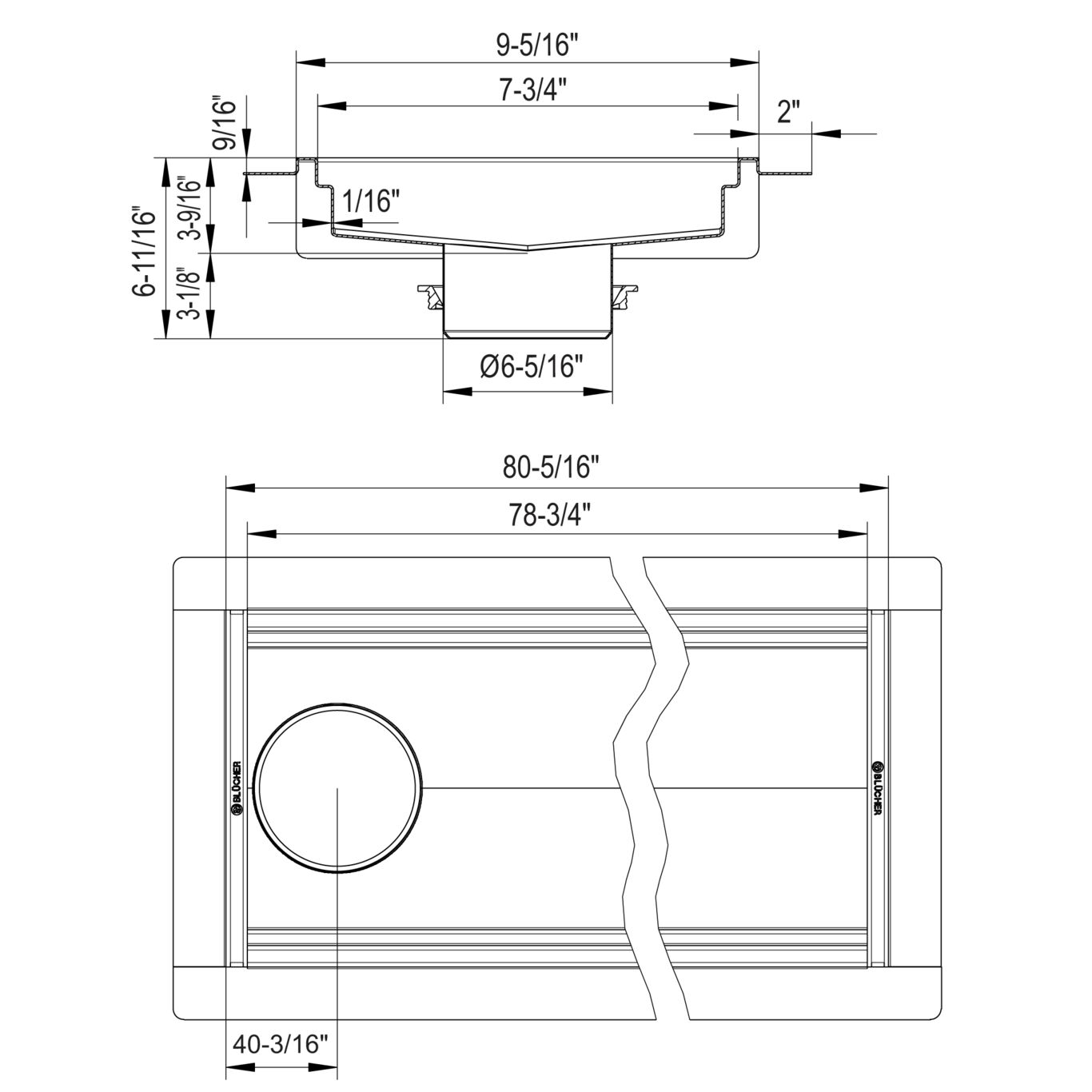

Size: 200x2000


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 170
Outlet Box No
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Outlet Placement Center
Shape Rectangular
Size (mm) 200x2000
Size of Frame (Inch) 7-7/8 x 78-3/4
Weight (kg) 17.75
Weight (lbs) 39.13
