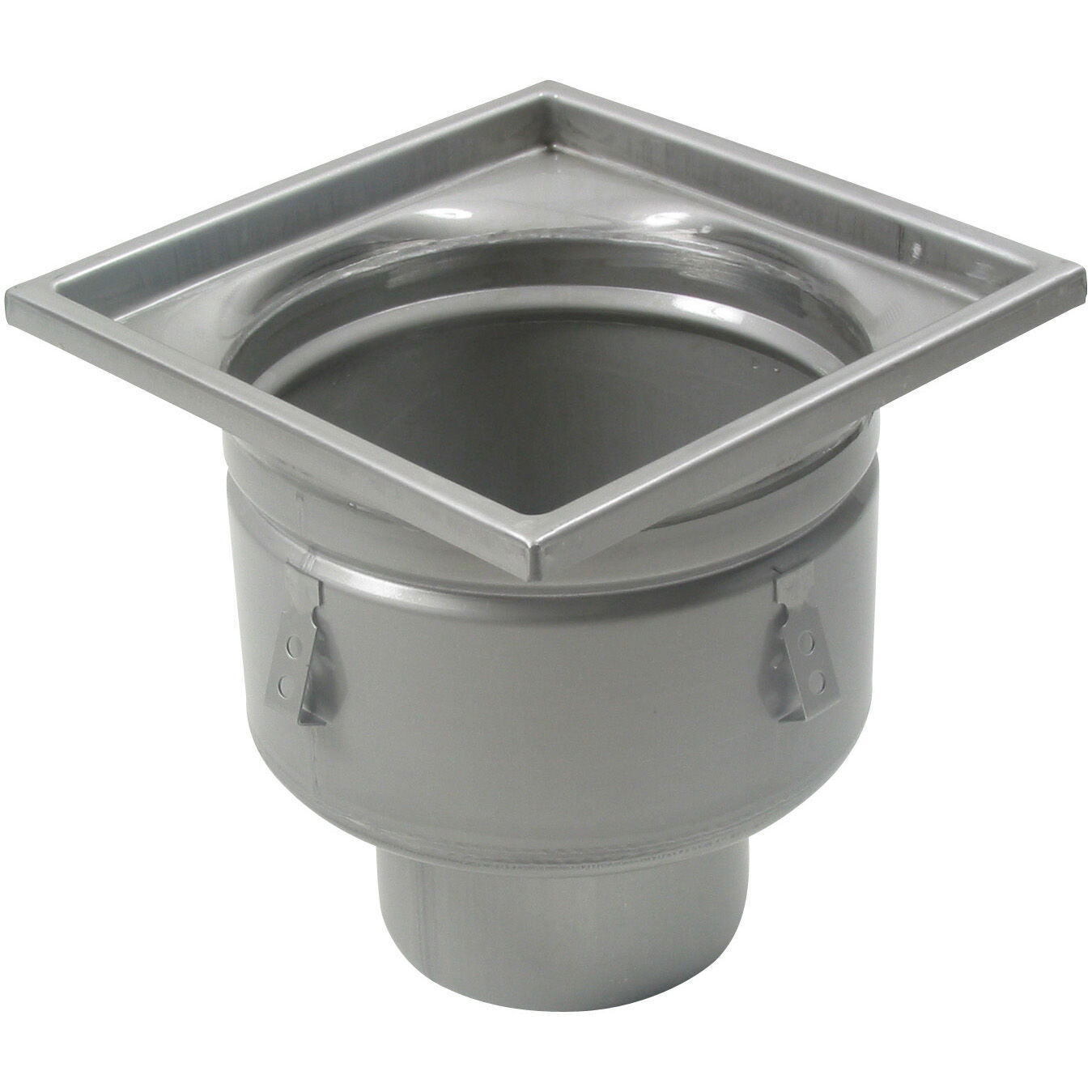

INDUSTRIAL DRAIN, LOW - (766.403.160)

Part Of the Series: Drain-No membrane-300

Type no.: 766.403.160

EAN no.: 5705499110401

VVS no.: 153041318

LVI no.: 3303571

Size: 300x300


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Adjustable No
Field of Application Industrial
Floor Concrete / Tiled
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Number of Inlets 0
Number of Screw Holes 0
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Shape Square
Size (mm) 300x300
Size of Frame (Inch) 11-3/4 x 11-3/4
Weight (kg) 4.86
Weight (lbs) 10.71
