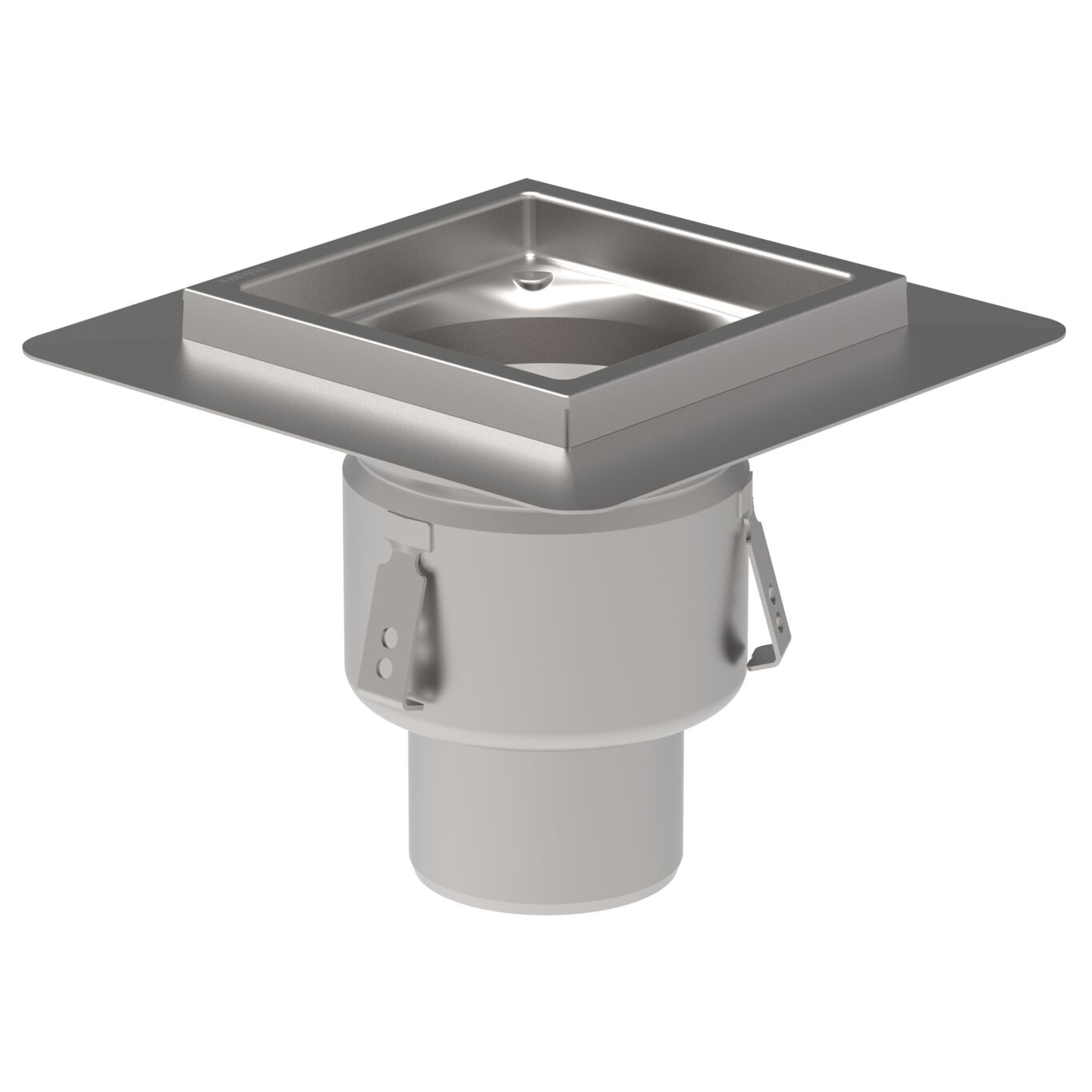

INDUSTRIAL DRAIN, LOW - (767.402.110)

Part Of the Series: Drain-Liquid membrane-200

Type no.: 767.402.110

EAN no.: 5705499110685

VVS no.: 153045116

NRF no.: 3396379

LVI no.: 3303706

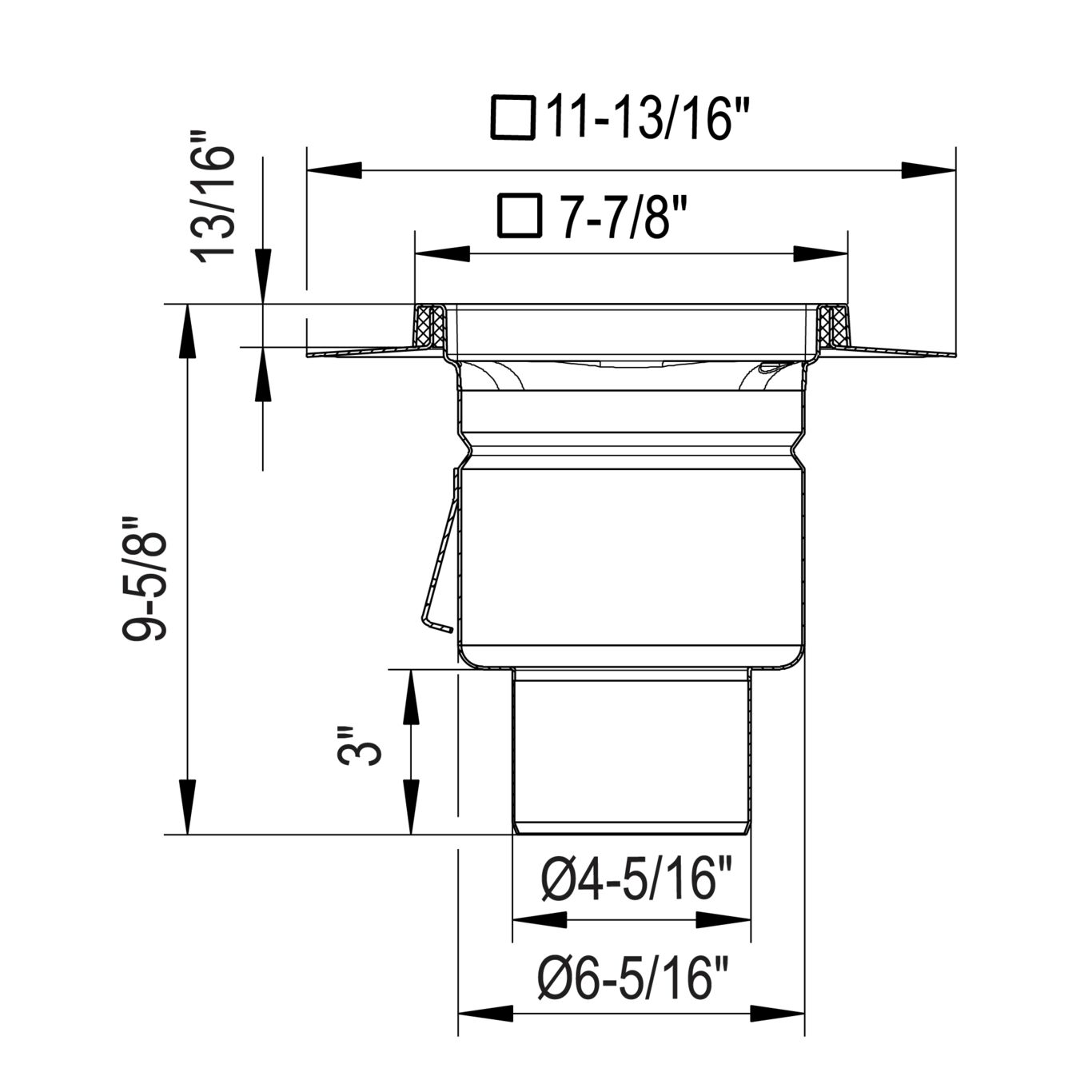

Size: 200x200


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Adjustable No
Field of Application Industrial
Floor Concrete / Tiled
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Number of Inlets 0
Number of Screw Holes 0
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Shape Square
Size (mm) 200x200
Size of Frame (Inch) 7-7/8 x 7-7/8
Weight (kg) 5.09
Weight (lbs) 11.22
