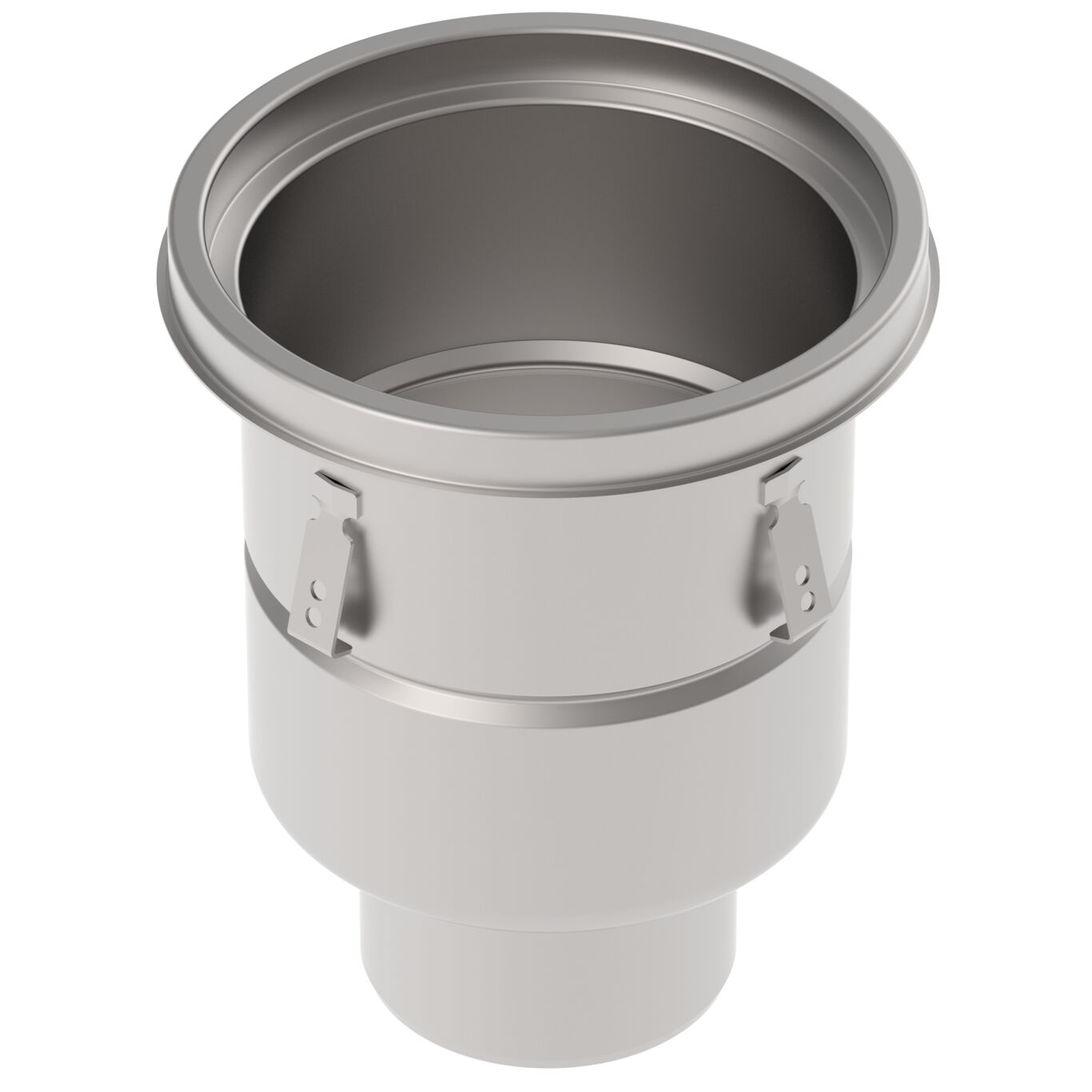

INDUSTRIAL DRAIN - (760.503.160)

Part Of the Series: Drain-No membrane-305

Type no.: 760.503.160

EAN no.: 5705499109566

VVS no.: 153050063

LVI no.: 3303528

Size: Ø305

Download CAD Collections

2d DWG files

3d STP files

Download MasterSpec Documents


Product Specification
Adjustable No
Field of Application Industrial
Floor Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 378
Number of Inlets 0
Number of Screw Holes 0
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Shape Round
Size (mm) Ø305
Size of Frame (Inch) Ø12
Weight (kg) 5.85
Weight (lbs) 12.9
