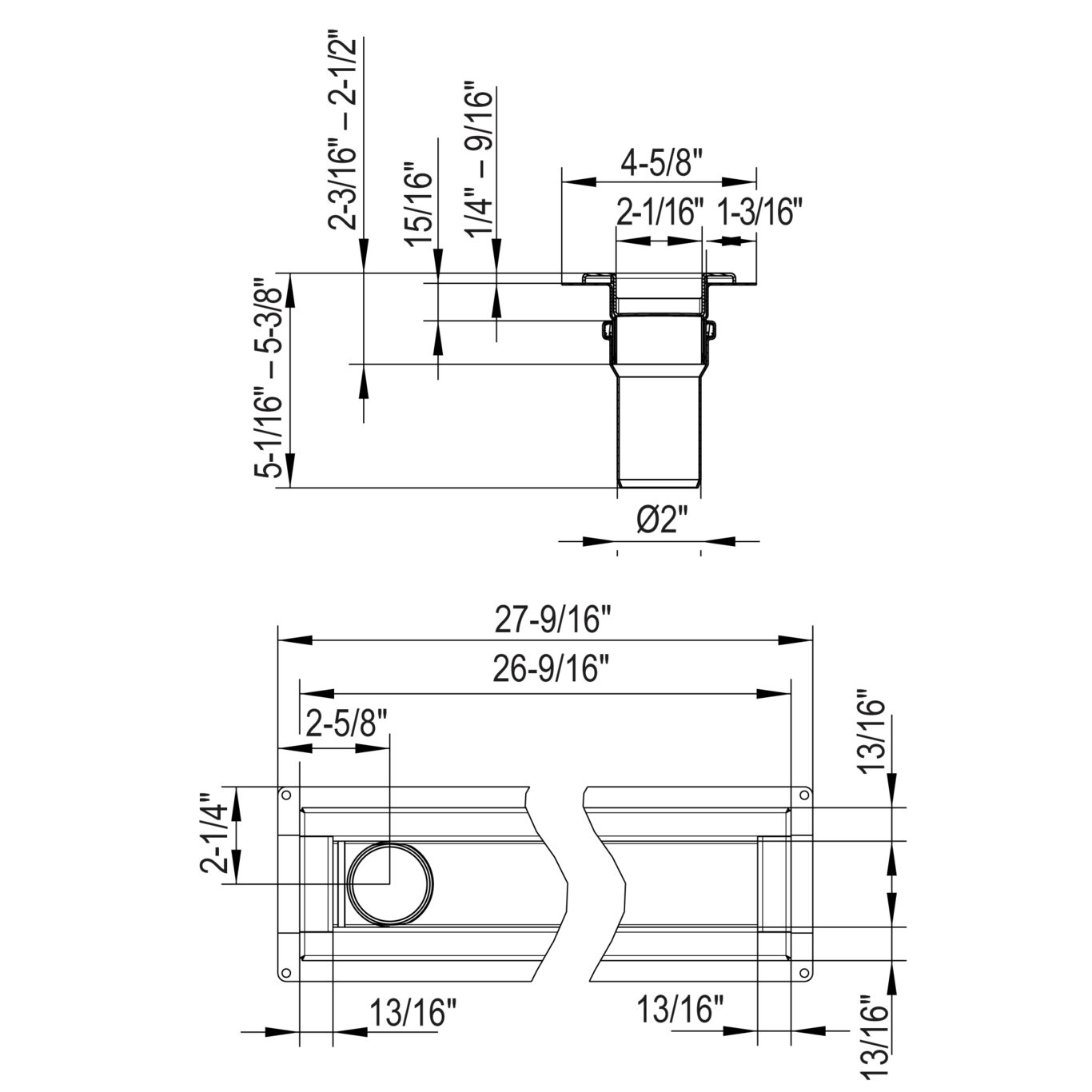

SHOWER CHANNEL WATERLINE 700 - (378.070.056.20)

Part Of the Series: Shower channel-Liquid membrane

Type no.: 378.070.056.20

EAN no.: 5705499138146

VVS no.: 155062007

RSK no.: 7121692

LVI no.: 3304415

Size: 50x700


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Floor Concrete / Tiled
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Outlet Box No
Outlet dia. (mm) 50
Outlet Diameter (Inch) 2
Outlet Direction Vertical
Outlet Placement End
Shape Rectangular
Size (mm) 50x700
Size of Frame (Inch) 2 x 27-1/2
Weight (kg) 2.29
Weight (lbs) 5.05
