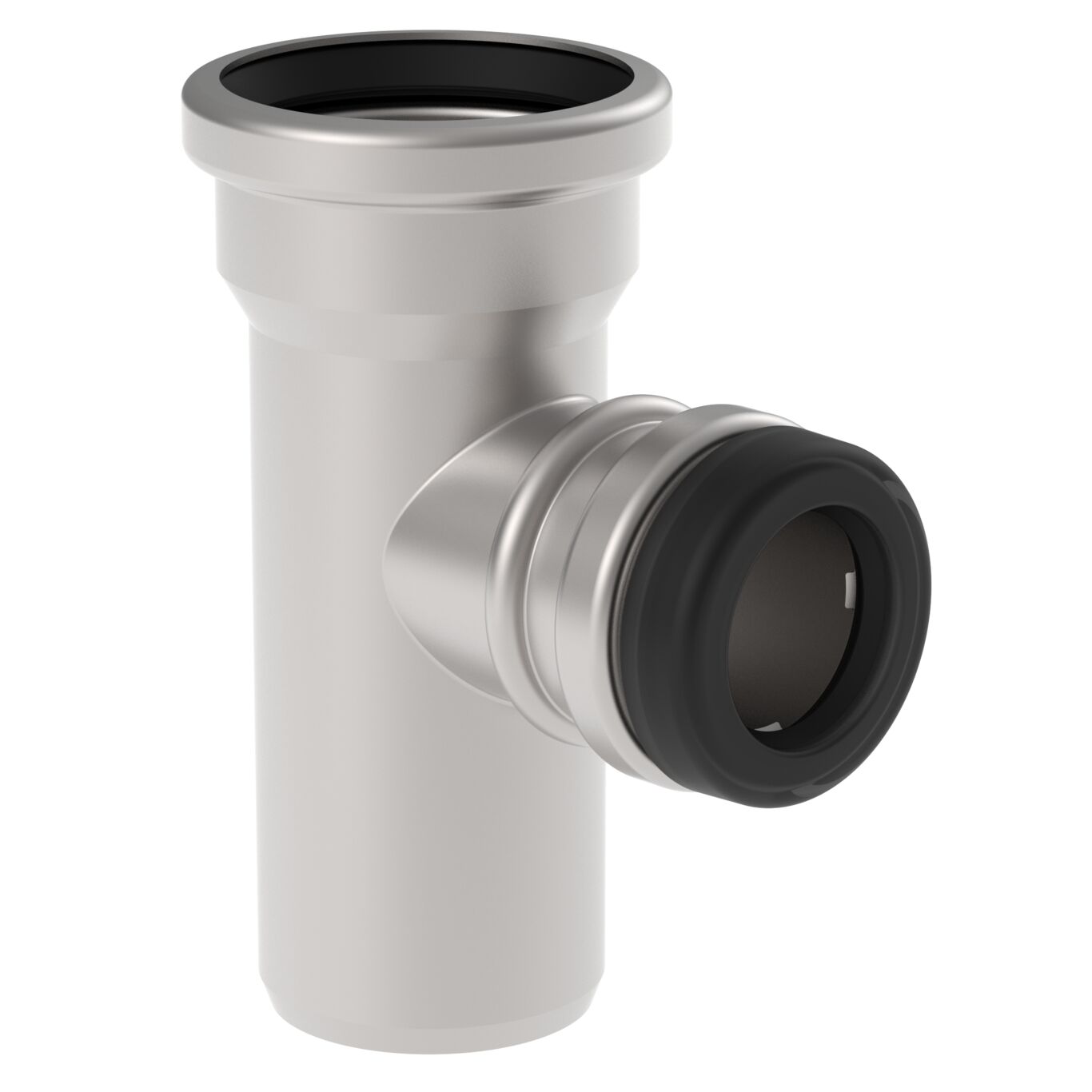

CONNECTING PIECE FOR WATERLINE - (620.300.036)
×
![]()
Part Of the Series: Spare parts-drain
Type no.: 620.300.036
EAN no.: 5705499123692
VVS no.: 155059650
CONNECTING PIECE FOR WATERLINE
-With side inlet
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Length (mm) | 109 |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 135 |
| Number of Inlets | 1 (Ø32/40mm) |
| Number of Inlets (Inch) | 1 (Ø1-1/4 inch, 1-1/2 inch) |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Product Family | WaterLine |
| Weight (kg) | 0.27 |
| Weight (lbs) | 0.6 |
-
Approval Information
For approval information, please refer to the below approval certificates.
