GRATING LINE OSLO 700 - (697.008.070)

Part Of the Series: Grating-Shower channel

Type no.: 697.008.070

EAN no.: 5705499122732

VVS no.: 155074107

RSK no.: 7121748

NRF no.: 3394788

LVI no.: 3304449

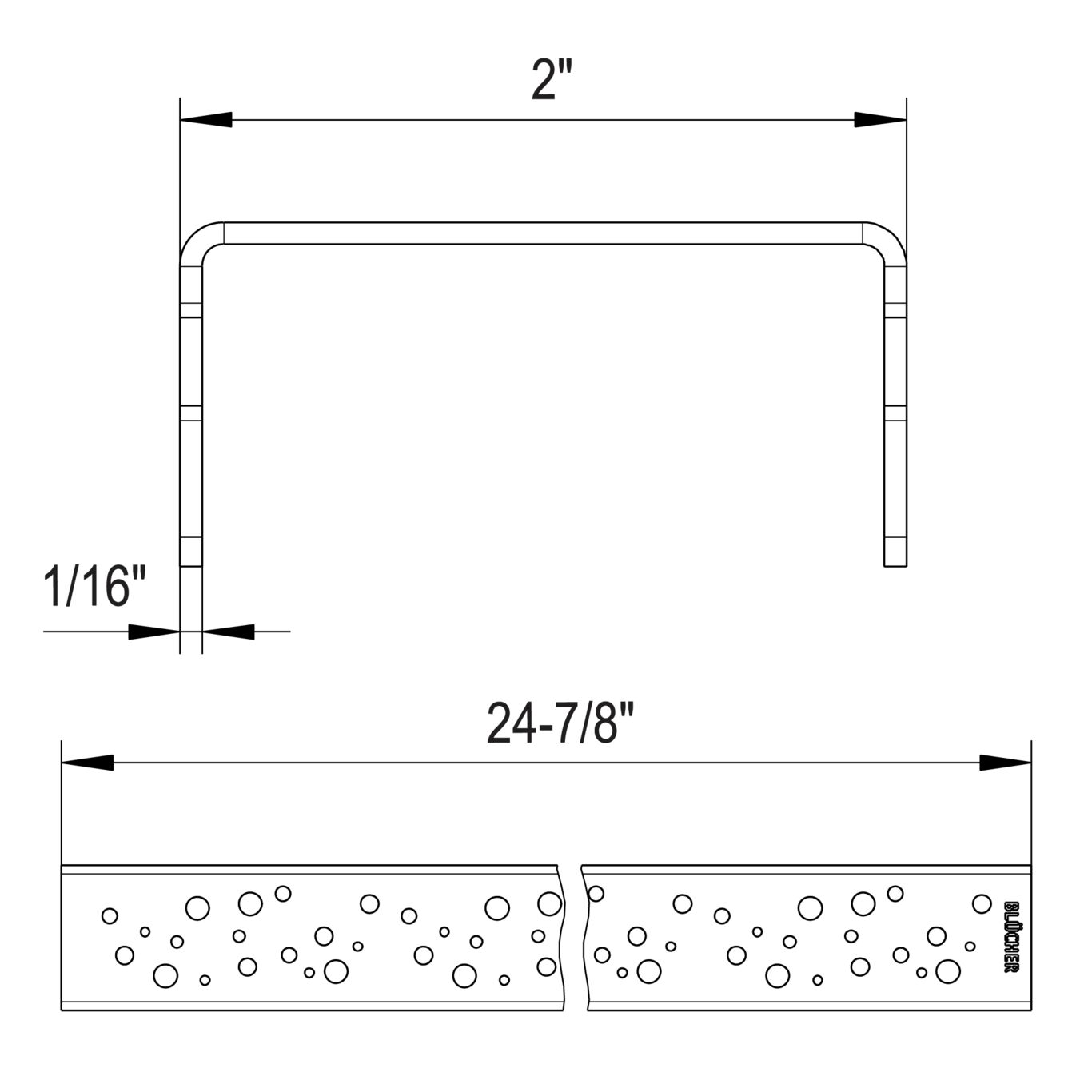

Size: 50x700


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Max Flow (l/s) 0.5
Number of Screws 0
Size (mm) 50x700
Size of Frame (Inch) 2 x 27-1/2
Weight (kg) 0.49
Weight (lbs) 1.08
