WATERLINE WATER TRAP - (510.025.050)
×
![]()
Part Of the Series: Water trap-Shower channel
Type no.: 510.025.050
EAN no.: 5705499134711
LVI no.: 3305795

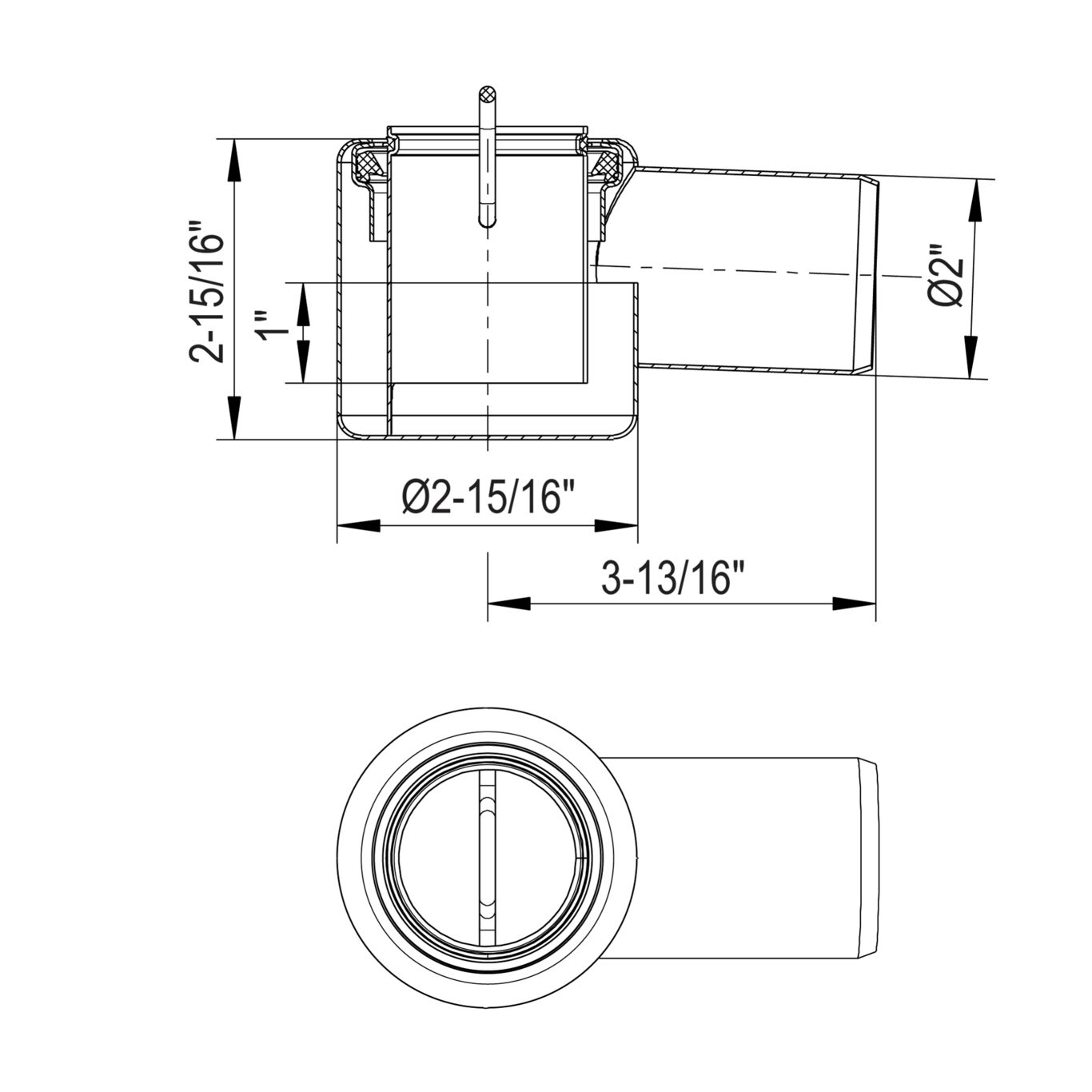

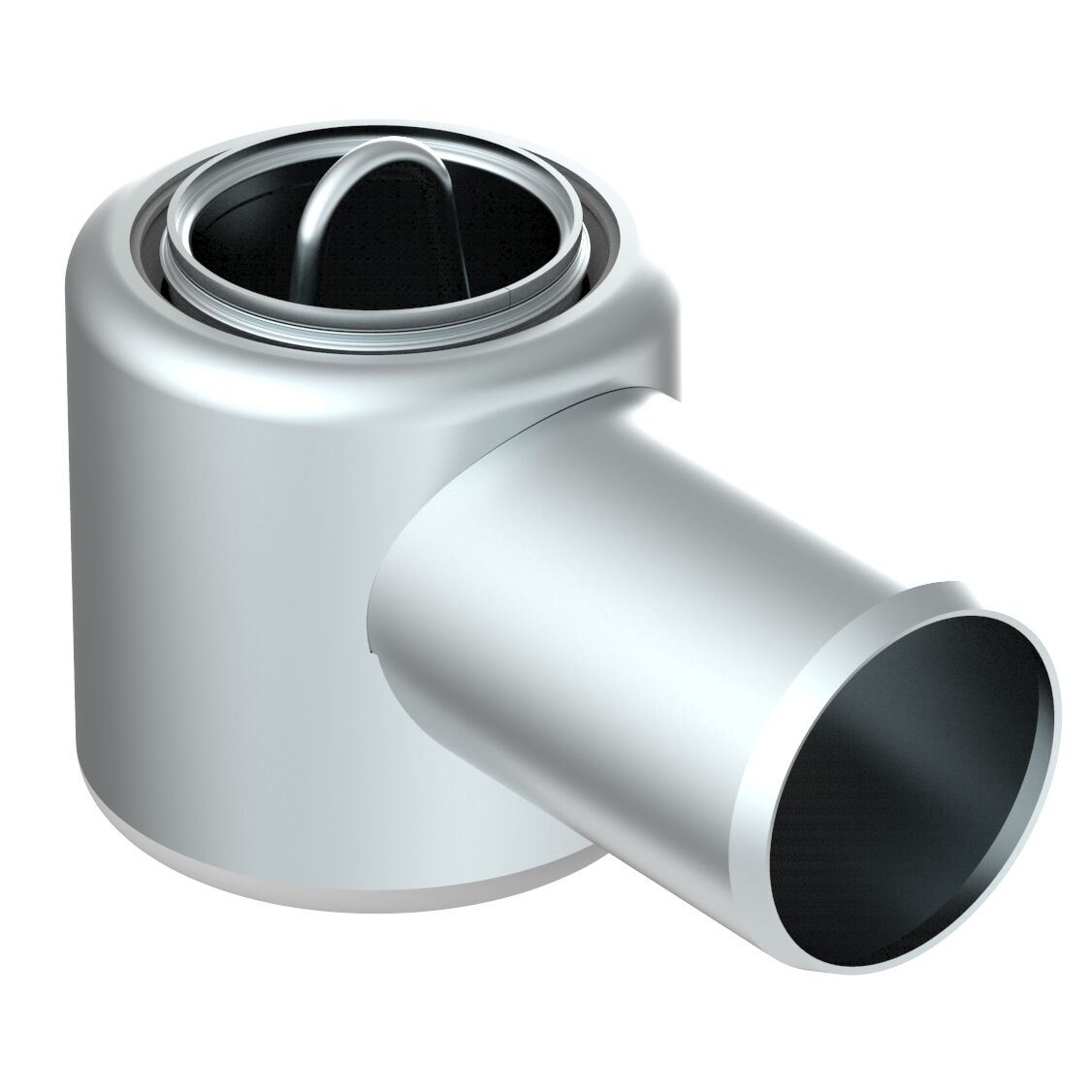

WATERLINE WATER TRAP
-To be built in, no retro-fitting
-Water seal height = 1 inch
-Outlet: Ø2 inch, horizontal
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Domestic |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Max Flow (l/s) | 0.6 |
| Minimum Height (mm) | 75 |
| Outlet dia. (mm) | 50 |
| Outlet Diameter (Inch) | 2 |
| Water Seal Height (mm) | 25 |
| Weight (kg) | 0.38 |
| Weight (lbs) | 0.84 |
-
Approval Information
For approval information, please refer to the below approval certificates.
