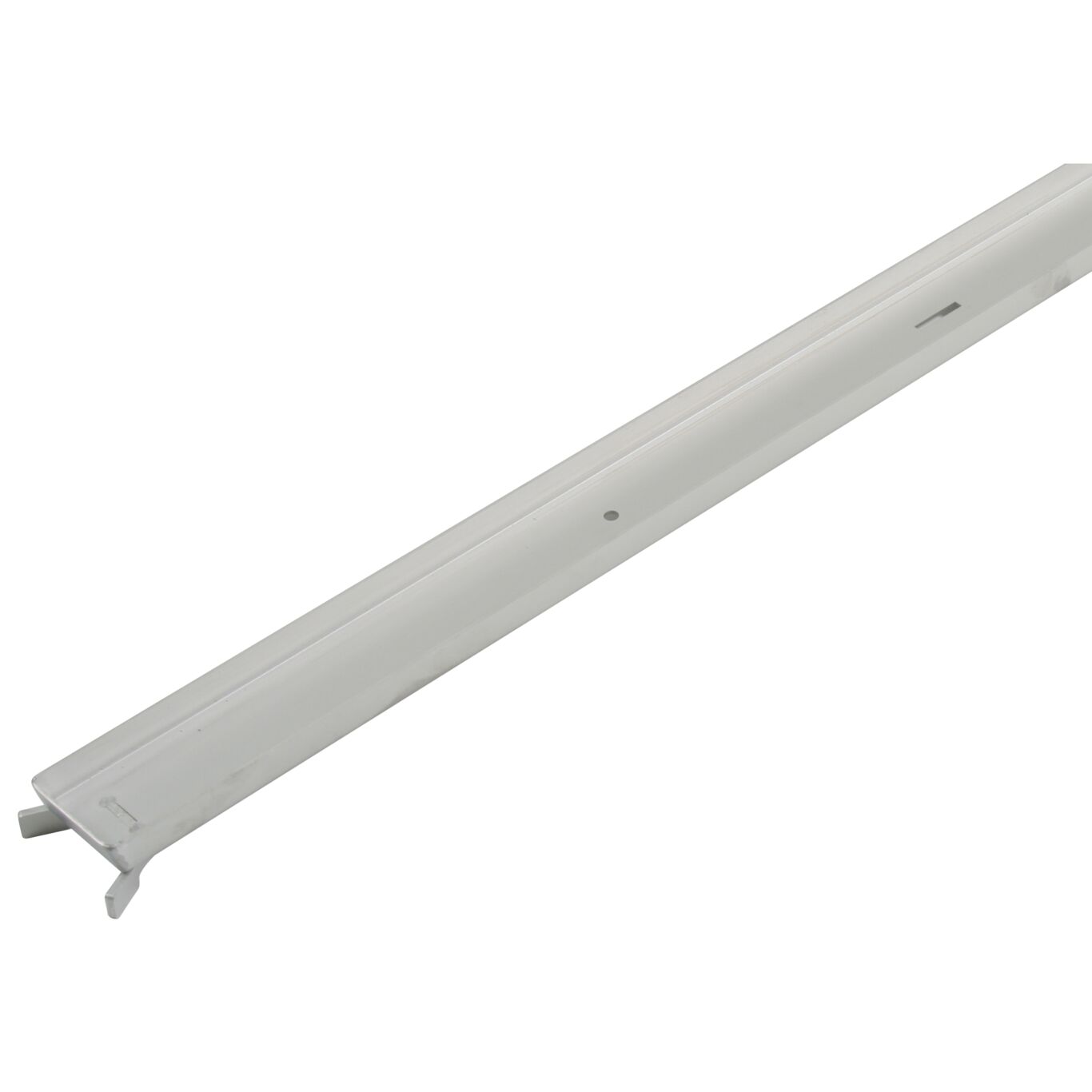

GRATING LINE TOKYO 700 - (697.009.070)

Part Of the Series: Grating-Shower channel

Type no.: 697.009.070

EAN no.: 5705499126990

VVS no.: 155076107

RSK no.: 7121996

NRF no.: 3394722

LVI no.: 3304465

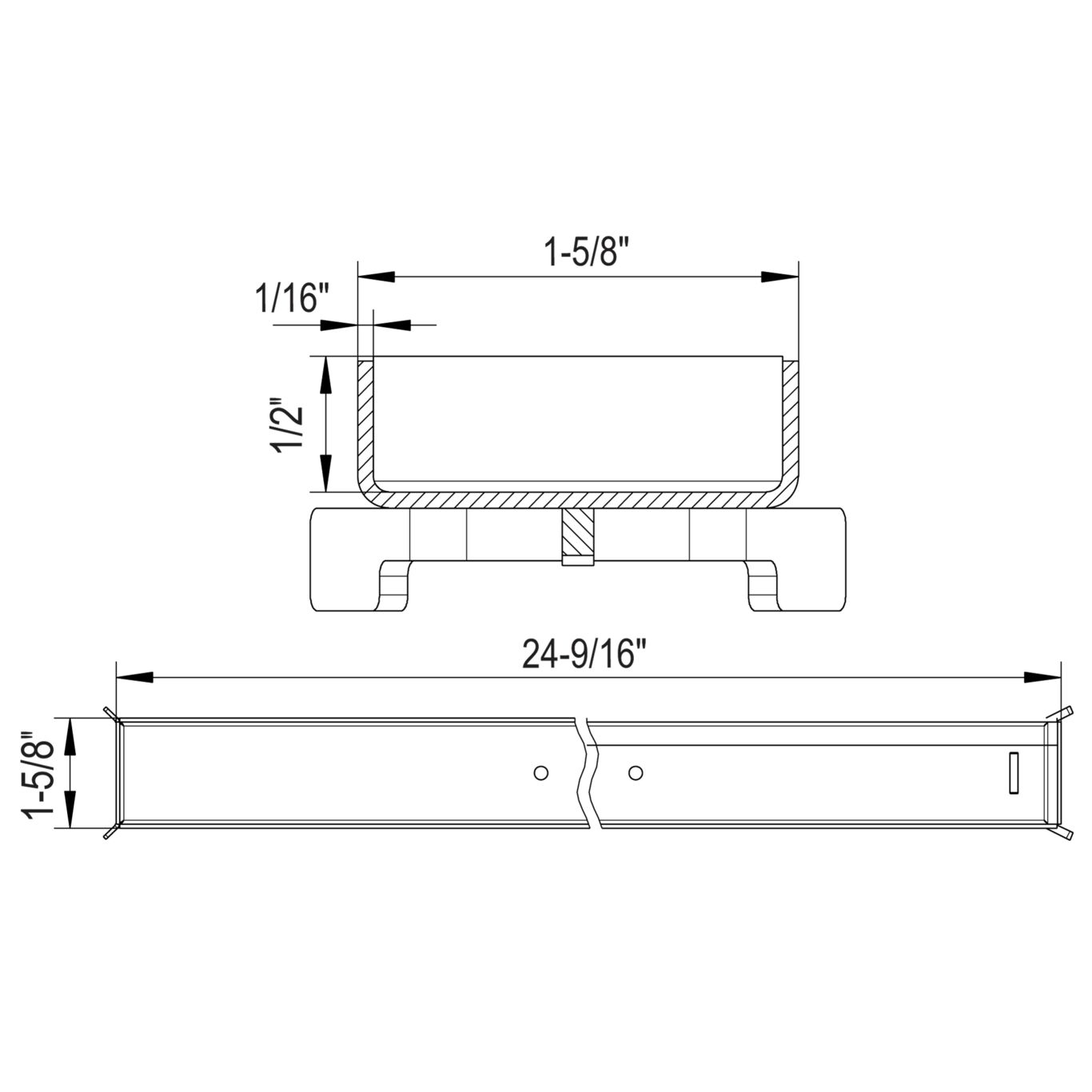

Size: 50x700


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Domestic
Load Class EN1253 K3
Load class EN1253(kg) K3
Material AISI 304
Material (EN) EN 1.4301
Max Flow (l/s) 0.8
Number of Screws 0
Size (mm) 50x700
Size of Frame (Inch) 2 x 27-1/2
Weight (kg) 0.52
Weight (lbs) 1.15
