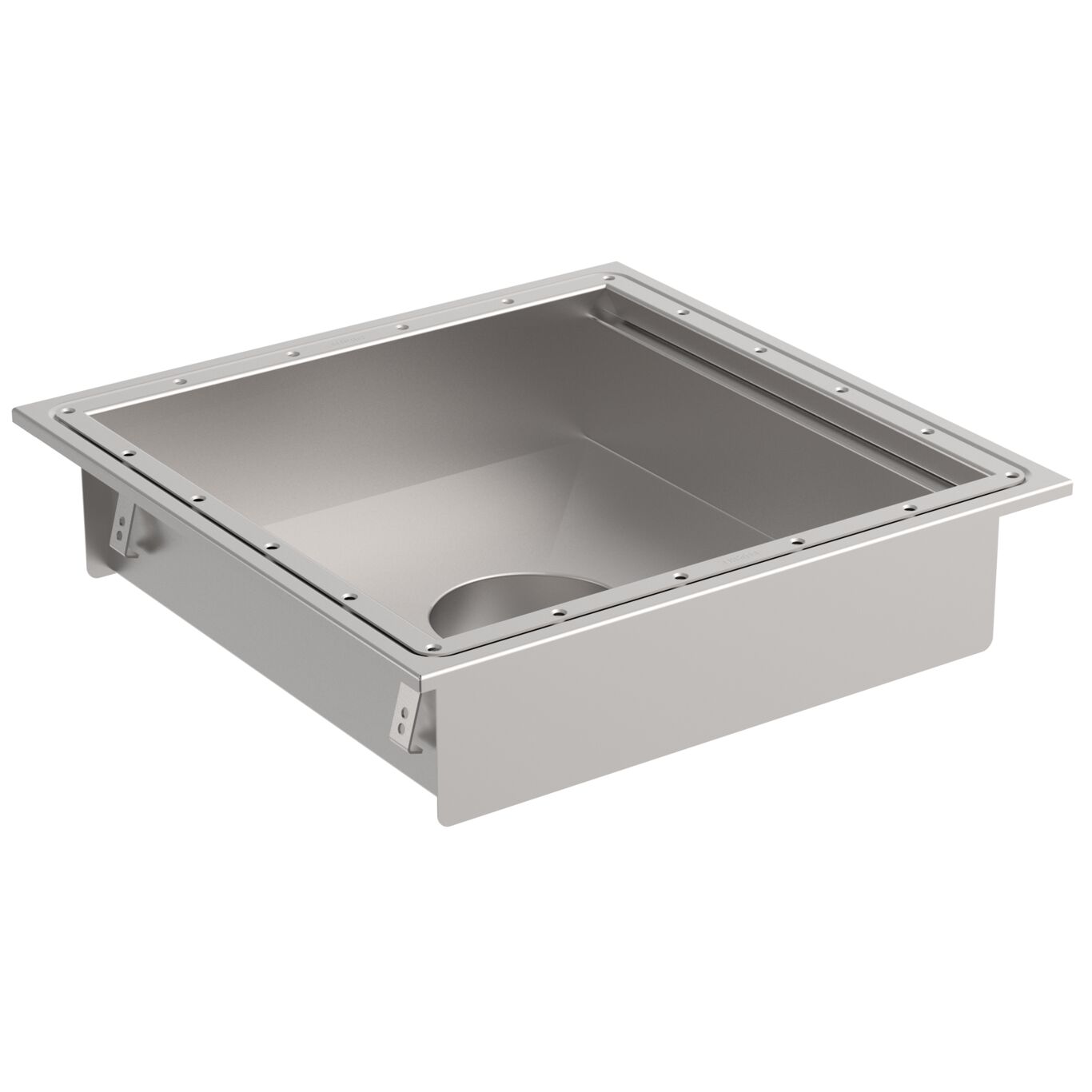

KITCHEN CHANNEL 500x500 - (662GK005-15)
×
![]()
Part Of the Series: Kitchen channel-Vinyl
Type no.: 662GK005-15
EAN no.: 5705499126587
Size: 500x500
KITCHEN CHANNEL 20 x 20
-Floor: vinyl
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Vinyl |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Minimum Height (mm) | 235 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 500x500 |
| Size of Frame (Inch) | 20 x 20 |
| Weight (kg) | 17.19 |
| Weight (lbs) | 37.9 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
