KITCHEN CHANNEL 400x800 - (660FK008-06)

Part Of the Series: Kitchen channel-No membrane

Type no.: 660FK008-06

EAN no.: 5705499126273

NRF no.: 3397058

Size: 400x800

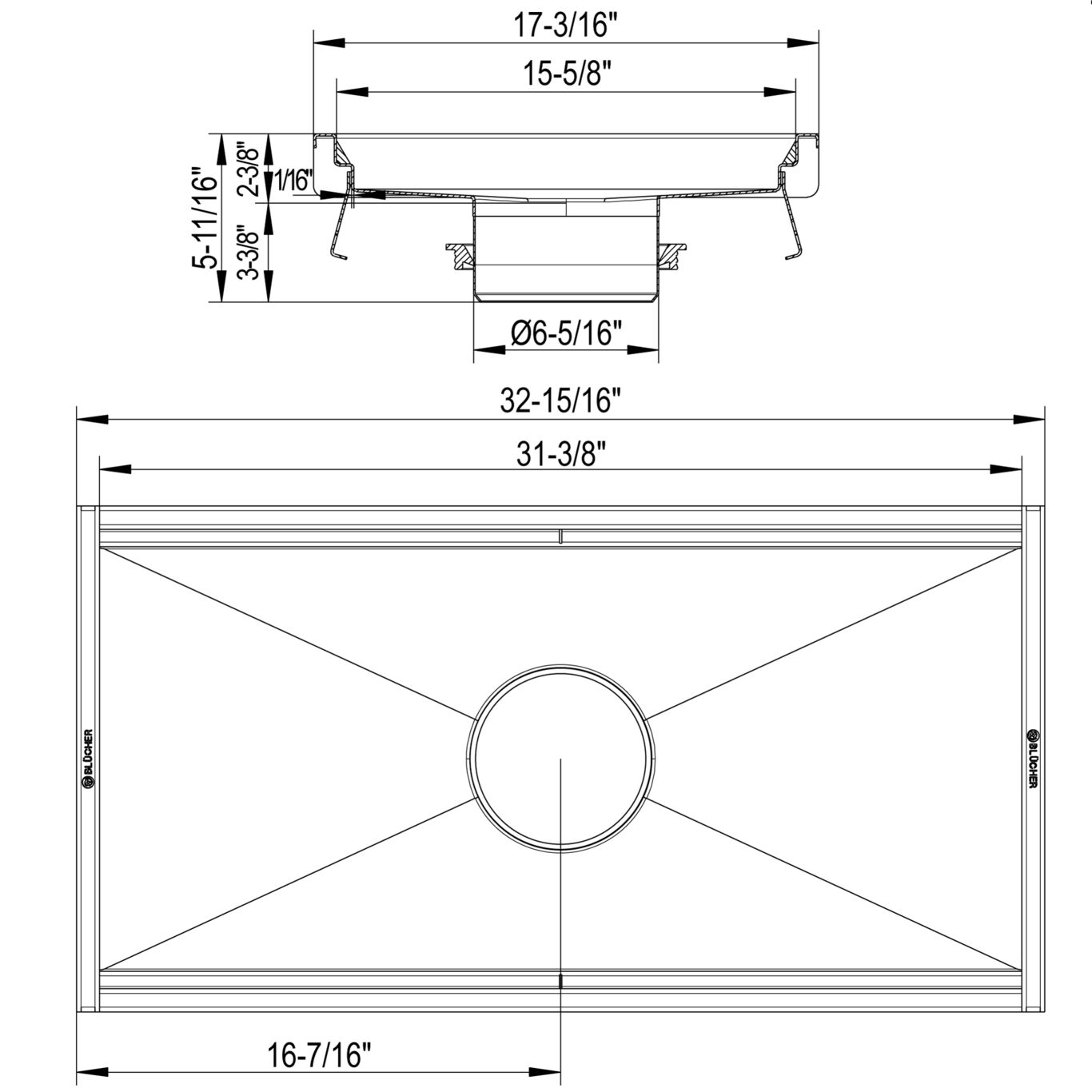

Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 145
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Shape Rectangular
Size (mm) 400x800
Size of Frame (Inch) 16 x 32
Weight (kg) 8.5
Weight (lbs) 18.74
