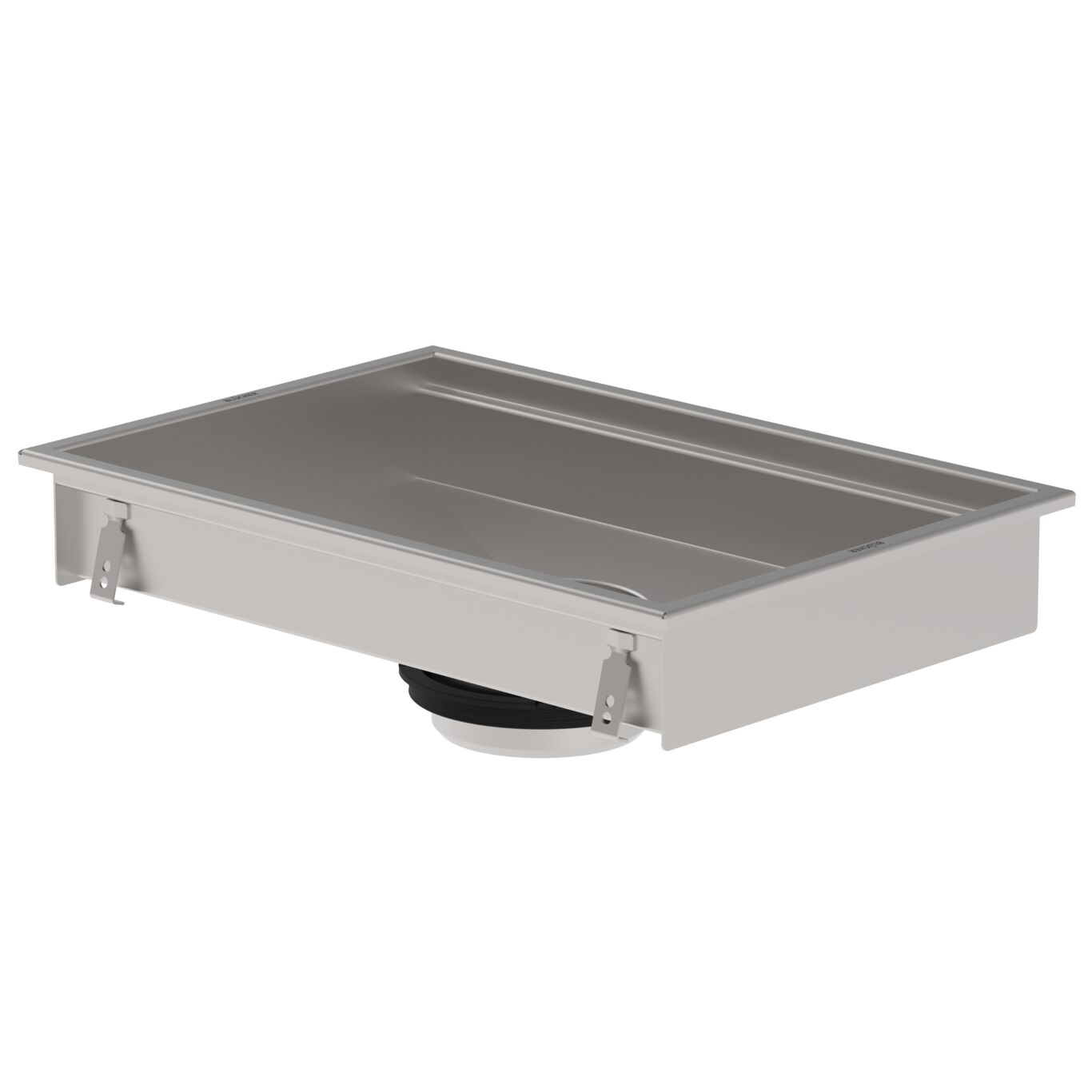

KITCHEN CHANNEL 400x600 - (660FK006-11)
×
![]()
Part Of the Series: Kitchen channel-No membrane
Type no.: 660FK006-11
EAN no.: 5705499126266
RSK no.: 7121771
NRF no.: 3396442
LVI no.: 3304921
Size: 400x600
KITCHEN CHANNEL 16 x 24
-Floor: concrete, tiled and resin
-No membrane
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | No Membrane |
| Minimum Height (mm) | 195 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 400x600 |
| Size of Frame (Inch) | 16 x 24 |
| Weight (kg) | 8.78 |
| Weight (lbs) | 19.36 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
