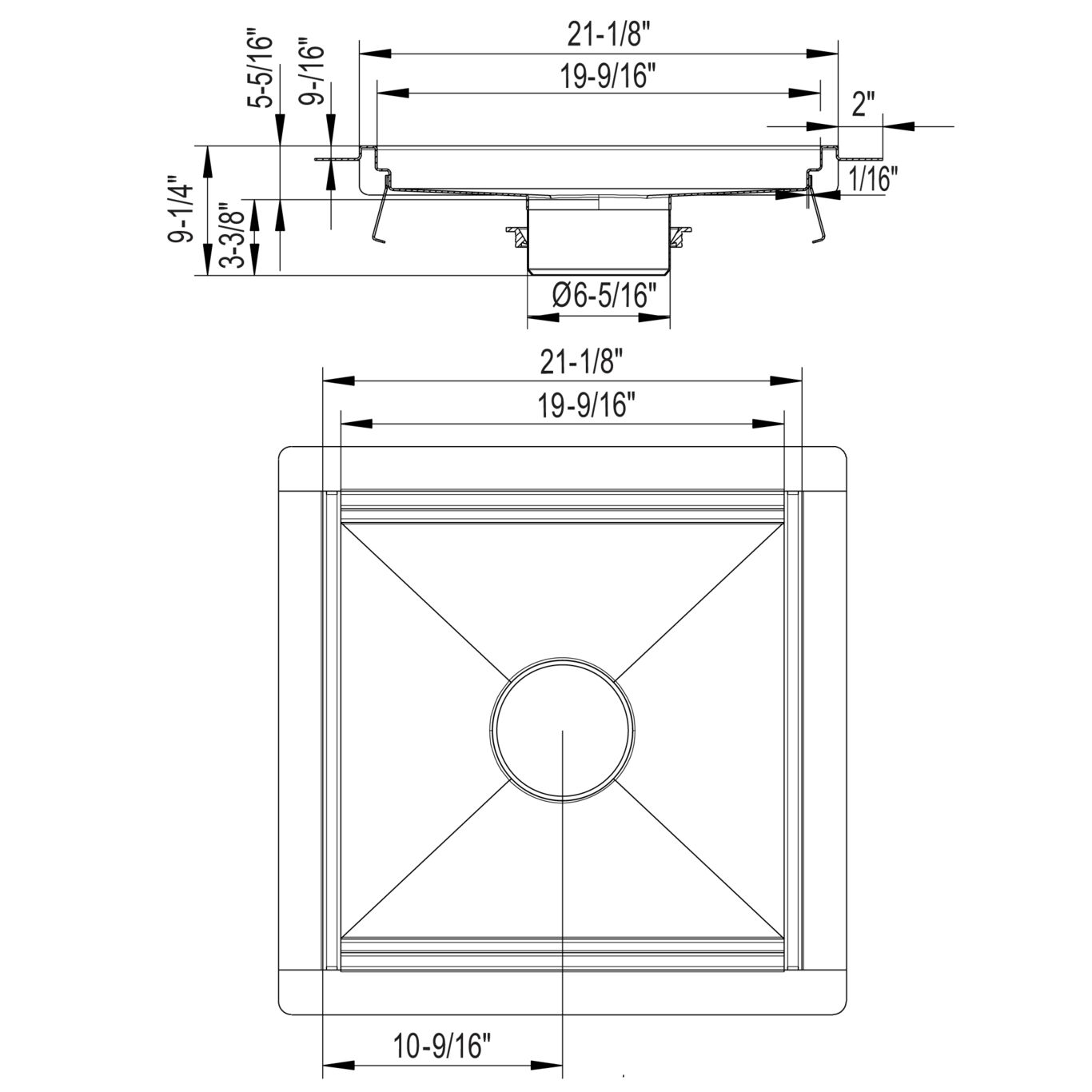

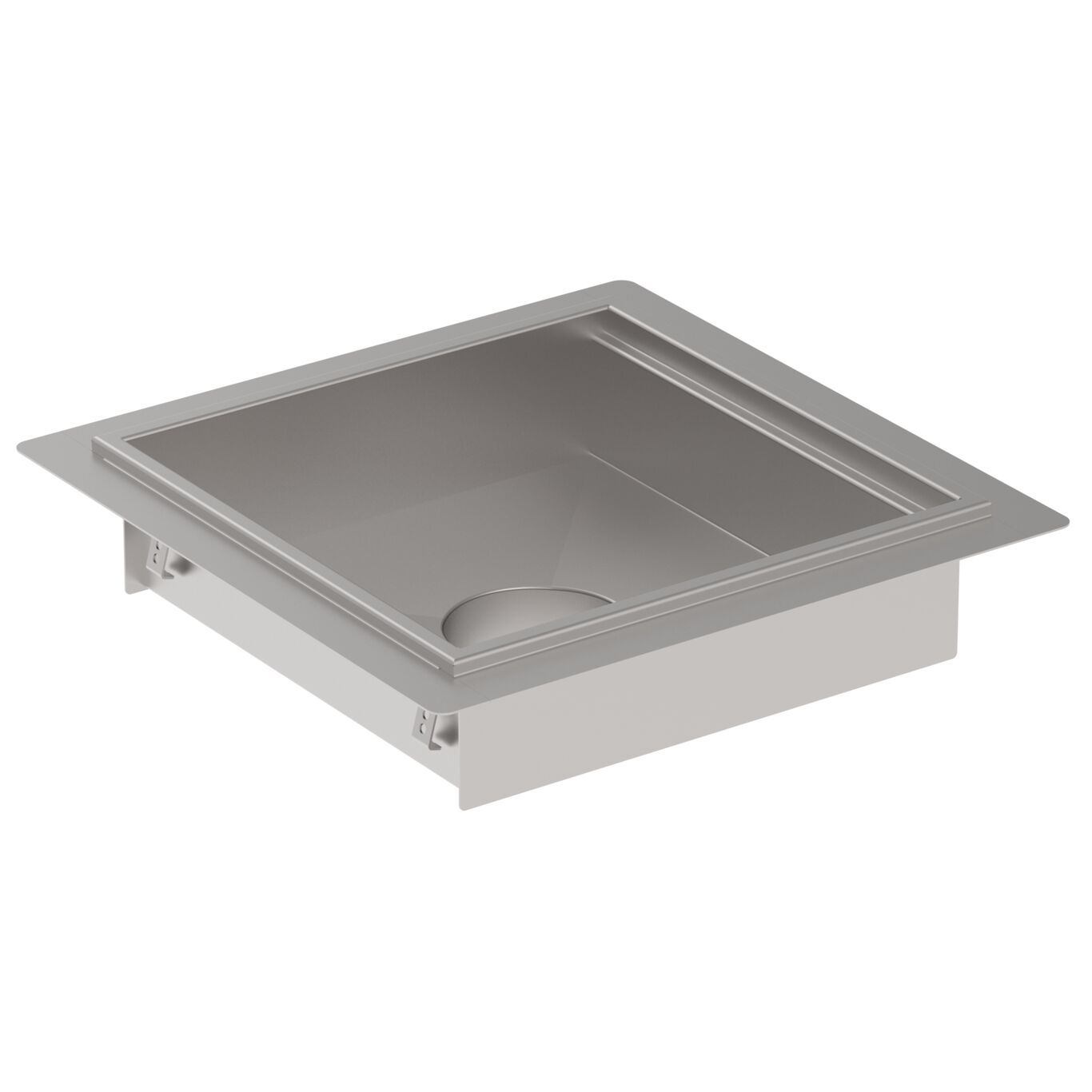

KITCHEN CHANNEL 500x500 - (664GK005-15)

Part Of the Series: Kitchen channel-Liquid membrane

Type no.: 664GK005-15

EAN no.: 5705499126112

Size: 500x500


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Floor Concrete / Tiled / Resin
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Liquid Membrane
Minimum Height (mm) 235
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Vertical
Shape Square
Size (mm) 500x500
Size of Frame (Inch) 20 x 20
Weight (kg) 18.08
Weight (lbs) 39.86
