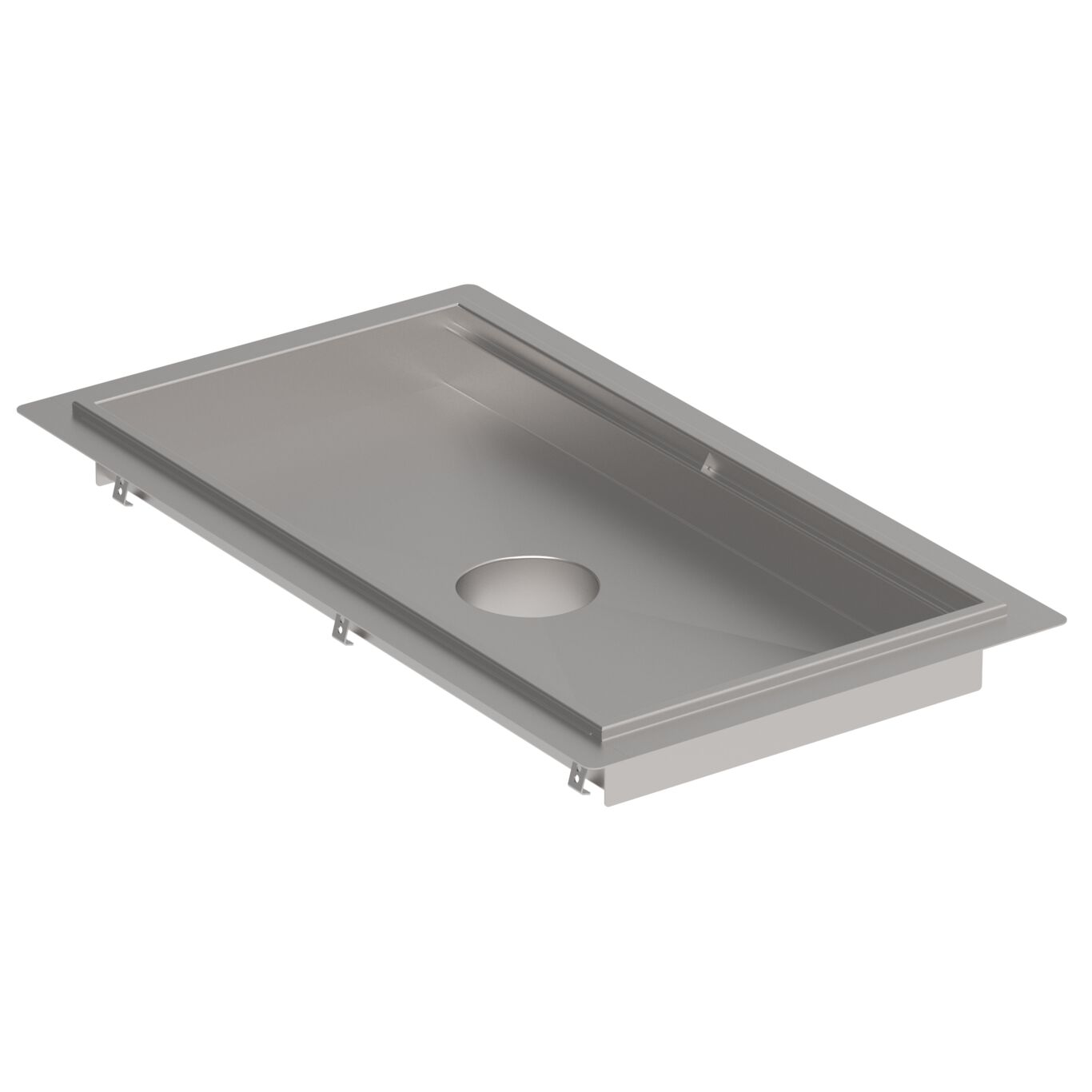

KITCHEN CHANNEL 500x1000 - (664GK010-11)
×
![]()
Part Of the Series: Kitchen channel-Liquid membrane
Type no.: 664GK010-11
EAN no.: 5705499134780
RSK no.: 7121805
Size: 500x1000
KITCHEN CHANNEL 20 x 40
-Floor: concrete, tiled and resin
-Outlet: Ø6 inch, vertical
-Stainless steel: AISI304/EN1.4301
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled / Resin |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Membrane Type | Liquid Membrane |
| Minimum Height (mm) | 195 |
| Outlet dia. (mm) | 160 |
| Outlet Diameter (Inch) | 6 |
| Outlet Direction | Vertical |
| Shape | Rectangular |
| Size (mm) | 500x1000 |
| Size of Frame (Inch) | 20 x 40 |
| Weight (kg) | 17.18 |
| Weight (lbs) | 37.88 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
