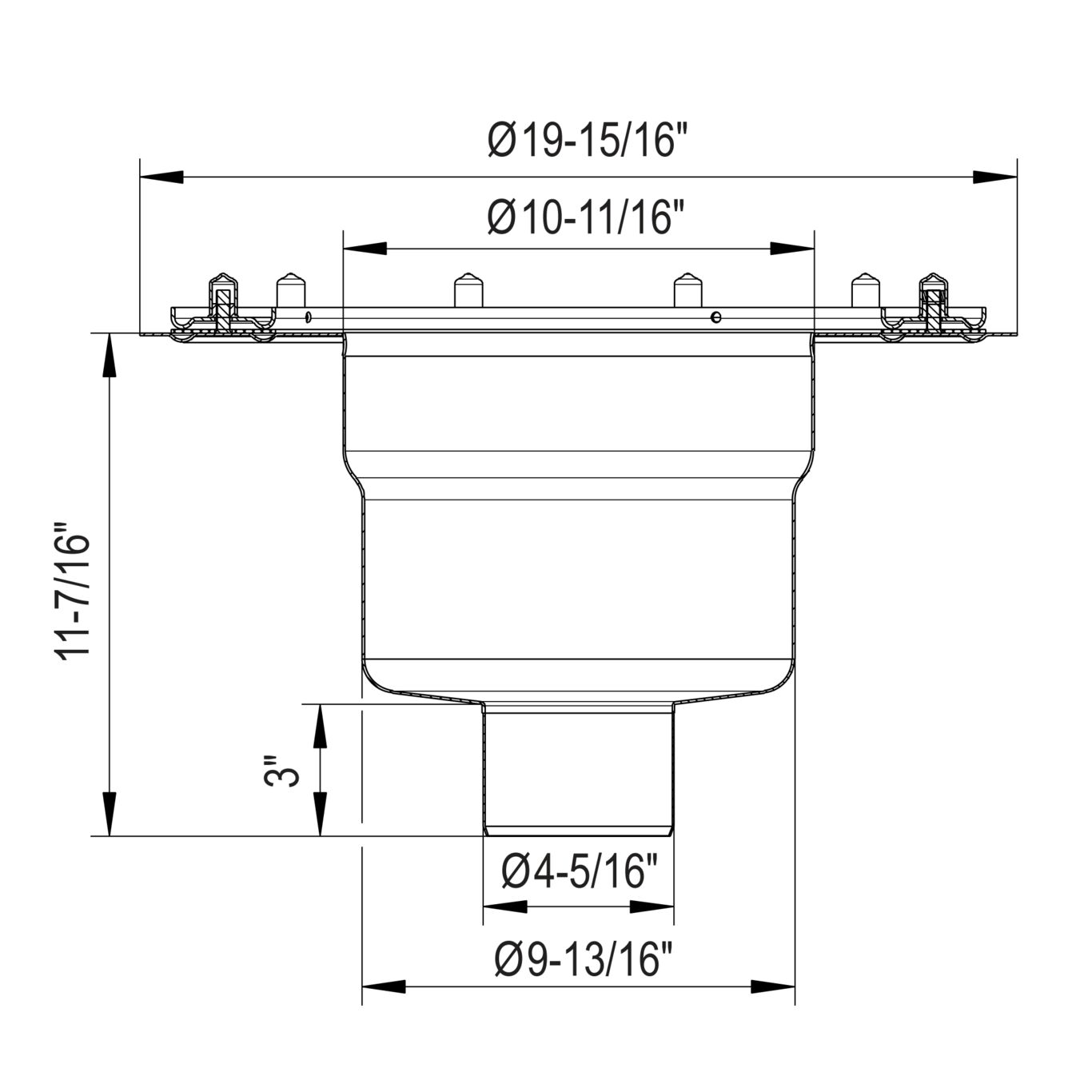

LOWER PART - (775.003.110)

Part Of the Series: Lower part-250

Type no.: 775.003.110

EAN no.: 5705499112610

NRF no.: 3396343

LVI no.: 3303801


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 304
Material (EN) EN 1.4301
Membrane Type Sheet Membrane
Minimum Height (mm) 290
Outlet dia. (mm) 110
Outlet Diameter (Inch) 4
Outlet Direction Vertical
Weight (kg) 7.71
Weight (lbs) 17
