UPPER PART - (774.403.000.01)
×
![]()
Part Of the Series: Upper part-No membrane-300
Type no.: 774.403.000.01
EAN no.: 5705499112139
LVI no.: 3303828
Size: 300x300

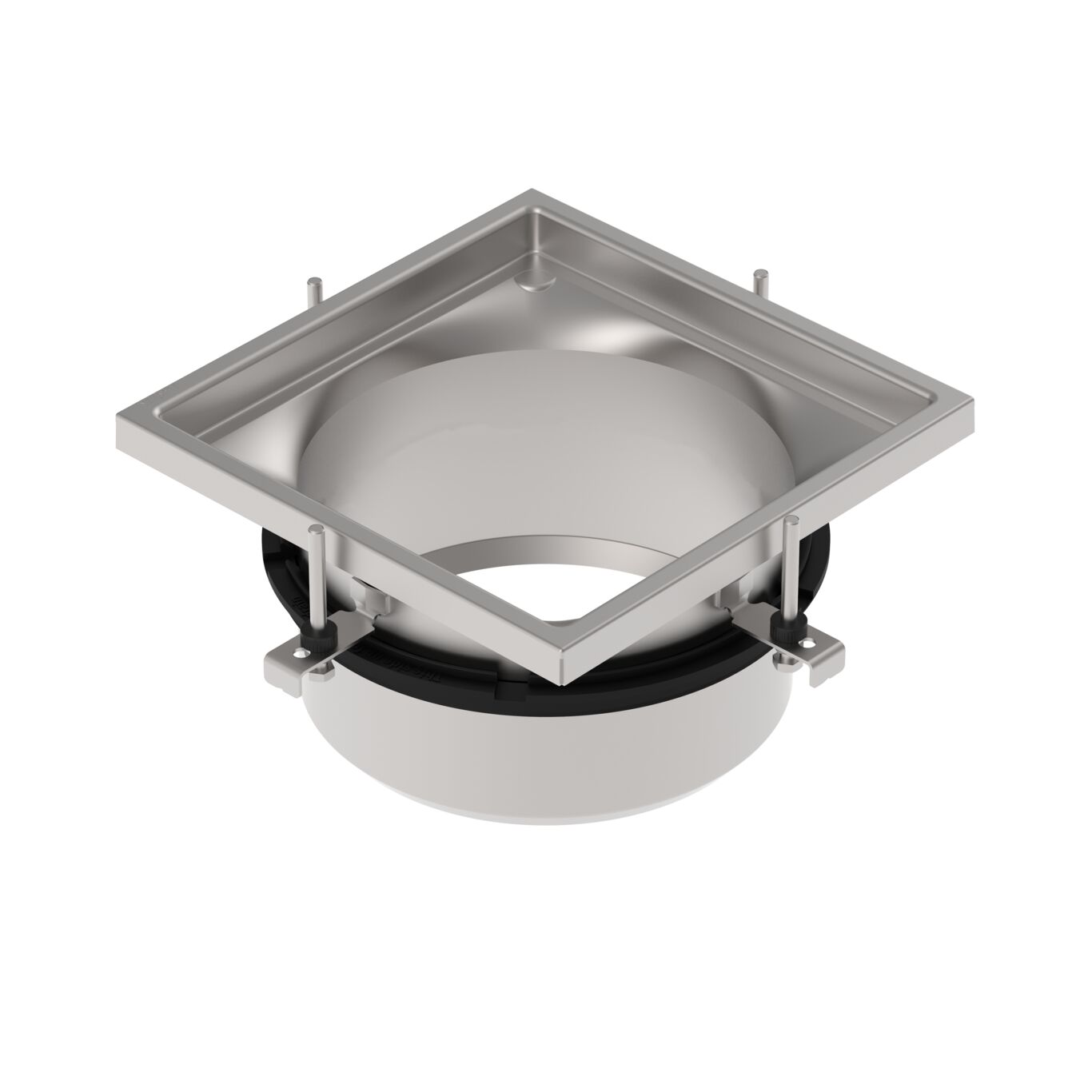

UPPER PART
-With screw lock
-Floor: concrete and tiled
-Frame: 300x300mm
-Stainless steel: AISI304/EN1.4301
Part of USA order number: BFD-134-VP
| Product Specification | |
|---|---|
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 304 |
| Material (EN) | EN 1.4301 |
| Number of Screw Holes | 2 |
| Outlet dia. (mm) | 250 |
| Outlet Diameter (Inch) | 10 |
| Shape | Square |

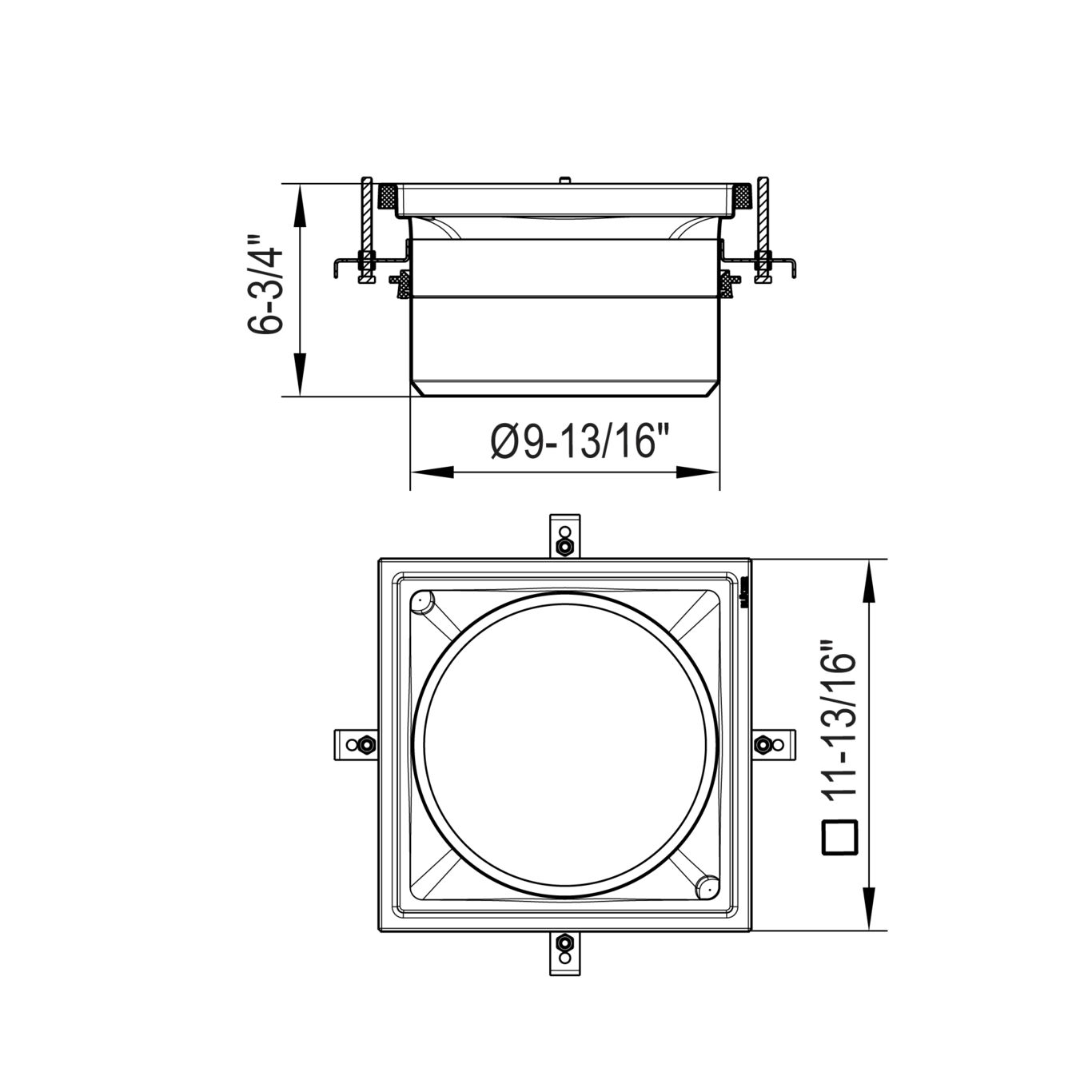

| Size (mm) | 300x300 |
| Size of Frame (Inch) | 11-3/4 x 11-3/4 |
| Weight (kg) | 3.77 |
| Weight (lbs) | 8.31 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
