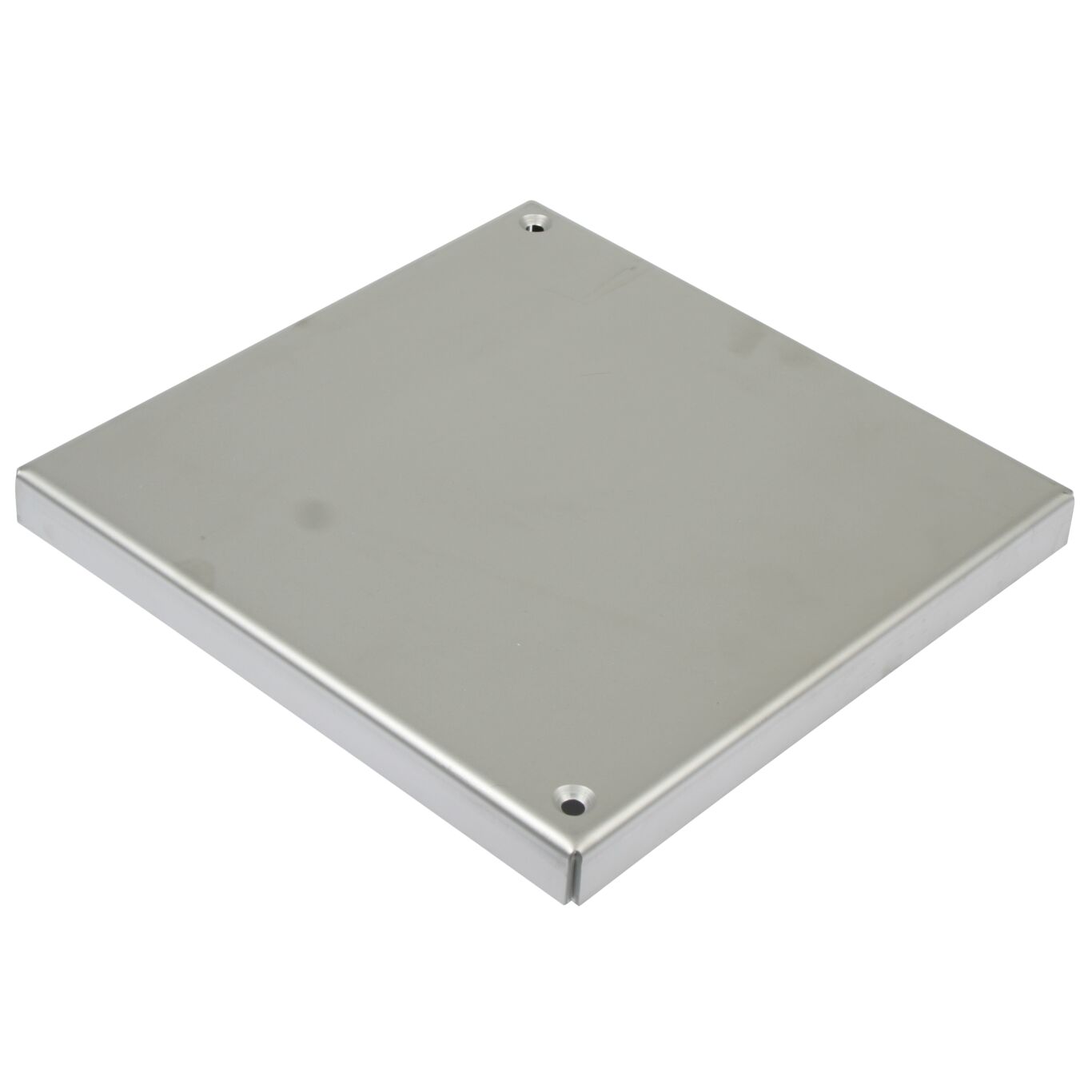

BLANK PLATE SQUARE - (790.268.001.00)

Part Of the Series: Grating-Drain-300

Type no.: 790.268.001.00

EAN no.: 5705499121209

Size: 300x300


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Load Class EN1253 L15
Load class EN1253(kg) L15 (1250)
Load class EN1253(lbs) L15 (2756)
Material AISI 304
Material (EN) EN 1.4301
Minimum Height (mm) 24
Number of Screws 2
Shape Square
Size (mm) 300x300
Size of Frame (Inch) 11-3/4 x 11-3/4
Weight (kg) 2.19
Weight (lbs) 4.83
