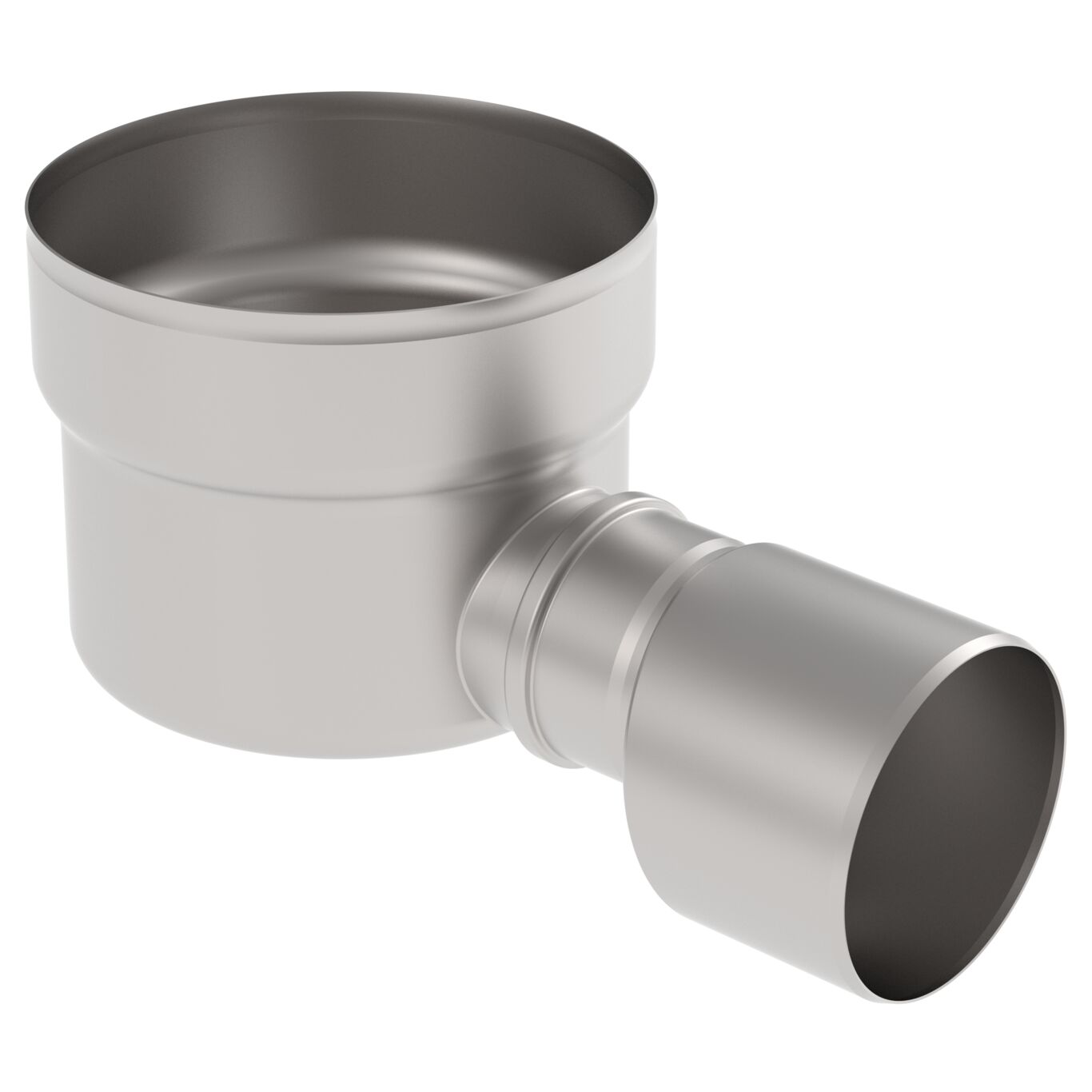

LOWER PART - (763.003.160)

Part Of the Series: Lower part-250

Type no.: 763.003.160

EAN no.: 5705499109887

LVI no.: 3303771


Download CAD Collections

2d DWG files

3d STP files



Download MasterSpec Documents

MasterSpec

Product Specification
Field of Application Industrial
Material AISI 304
Material (EN) EN 1.4301
Membrane Type No Membrane
Minimum Height (mm) 216
Outlet dia. (mm) 160
Outlet Diameter (Inch) 6
Outlet Direction Horizontal
Weight (kg) 5.16
Weight (lbs) 11.38

Upper parts
