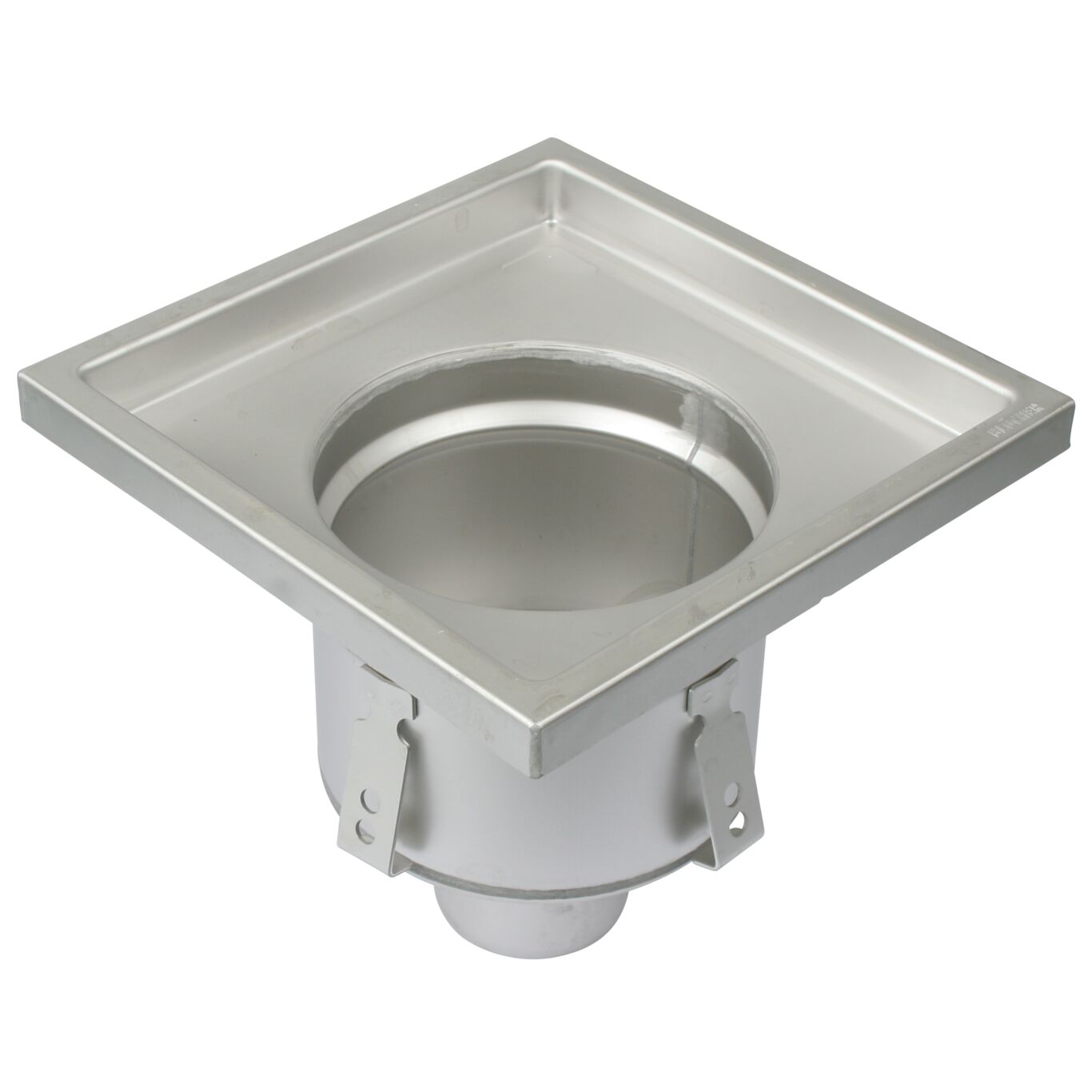

INDUSTRIAL DRAIN, LOW - (766.401.075 S)
×
![]()
Part Of the Series: Drain-No membrane-250
Type no.: 766.401.075 S
EAN no.: 5705499129014
Size: 250x250
INDUSTRIAL DRAIN, LOW
-Floor: concrete and tiled
-No membrane, frame: 250x250mm
-Outlet: Ø75mm, vertical
-Stainless steel: AISI316L/EN1.4404
| Product Specification | |
|---|---|
| Adjustable | No |
| Field of Application | Industrial |
| Floor | Concrete / Tiled |
| Material | AISI 316L |
| Material (EN) | EN 1.4404 |
| Membrane Type | No Membrane |
| Number of Inlets | 0 |
| Number of Screw Holes | 0 |
| Outlet dia. (mm) | 75 |
| Outlet Diameter (Inch) | 3 |
| Outlet Direction | Vertical |
| Shape | Square |
| Size (mm) | 250x250 |
| Size of Frame (Inch) | 9-7/8 x 9-7/8 |
| Weight (kg) | 2.34 |
| Weight (lbs) | 5.16 |
-
Downloads
-
Approval Information
For approval information, please refer to the below approval certificates.
